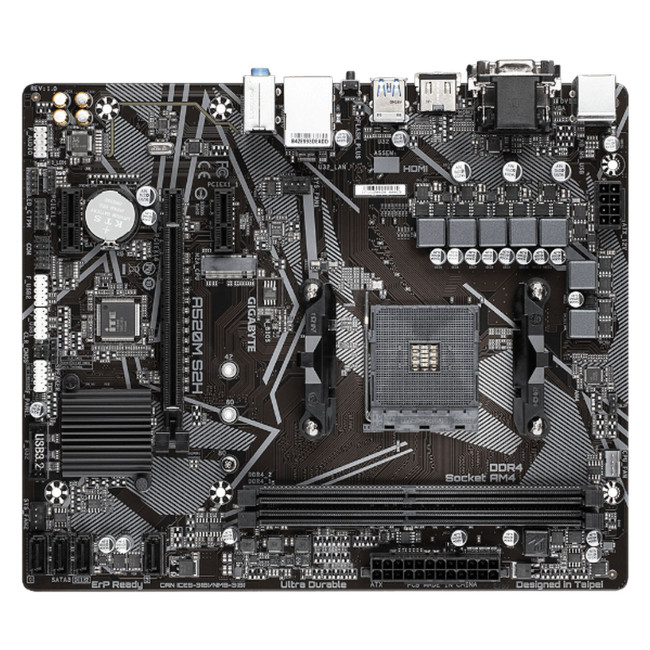

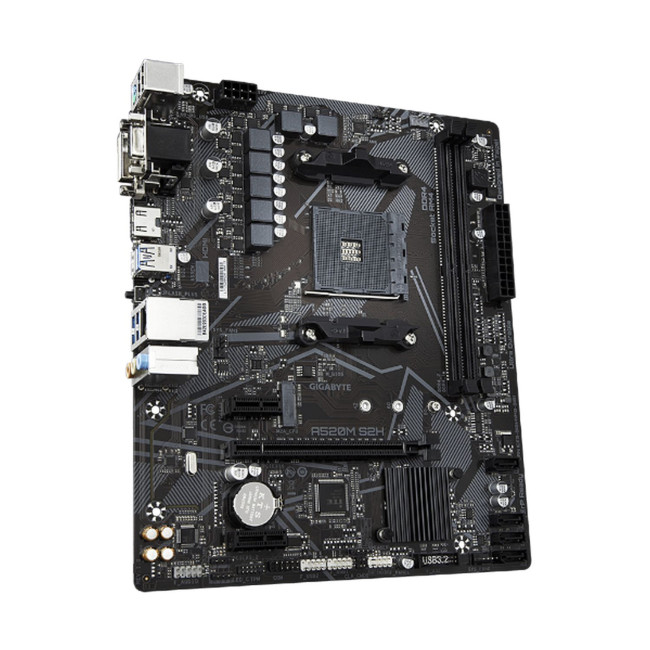

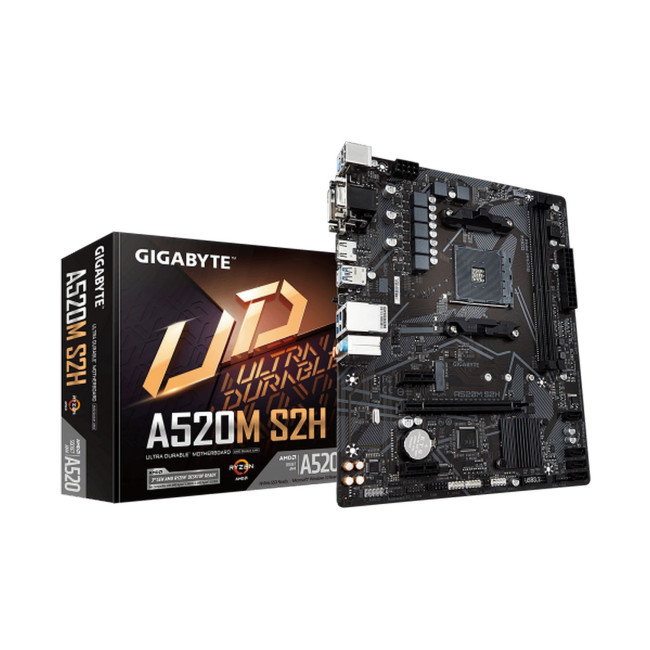

Motherboard Gigabyte A520M S2H DDR4 Micro ATX AM4

http://compshop.co.il/en/hardware-and-software/motherboards/amd-motherboards/motherboard-gigabyte-a520m-s2h-micro-atx-am4-en

Motherboard Gigabyte A520M S2H DDR4 Micro ATX AM4
Product QR Code
  • SKU 37303
  • Brand: Gigabyte
  • Product Code: 21633-05

  • ₪372

Motherboard Gigabyte A520M S2H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M S2H DDR4 Micro ATX AM4

Description

Manufacturer: Gigabyte, Color: Does not apply, Socket: AM4, Chipset: A520, Memory Type: DDR4

Specification

Review
Warranty3 years
Service During The Warranty Period (Who To Contact)COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part NumberA520M S2H
ModelA520M S2H
ColorDoes not apply
ConditionNew
ManufacturerGigabyte
Audio
  1. Realtek ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
ChipsetA520
Compatibility for computer assemblyAMD Motherboards
ConfigurationMicro ATX
Interface
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 1 x M.2 Socket 3 connector
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x serial port header
  15. 1 x speaker header
  16. 1 x chassis intrusion header
  17. 1 x Clear CMOS jumper
  18. 1 x PS/2 keyboard/mouse port
  19. 1 x D-Sub port
  20. 1 x DVI-D port
  21. 1 x HDMI port
  22. 4 x USB 3.2 Gen 1 ports
  23. 2 x USB 2.0/1.1 ports
  24. 1 x RJ-45 port
  25. 1 x Q-Flash Plus button
  26. 3 x audio jacks
, DDR4: 2, SATA3: 4
SocketAM4
Wired CommunicationRealtek GbE LAN chip (1000 Mbit/100 Mbit)
סוג הזיכרוןDDR4
Link To The Manufacturer'S Website

Get full product information - Go to product page

Product LinkMotherboard Gigabyte A520M S2H DDR4 Micro ATX AM4
Matching SKUsID: 37303, OC: 21633-05, ML: 95A52002, ML2: 95A52003, CD: GA520MS2H, MPN: A520M S2H
