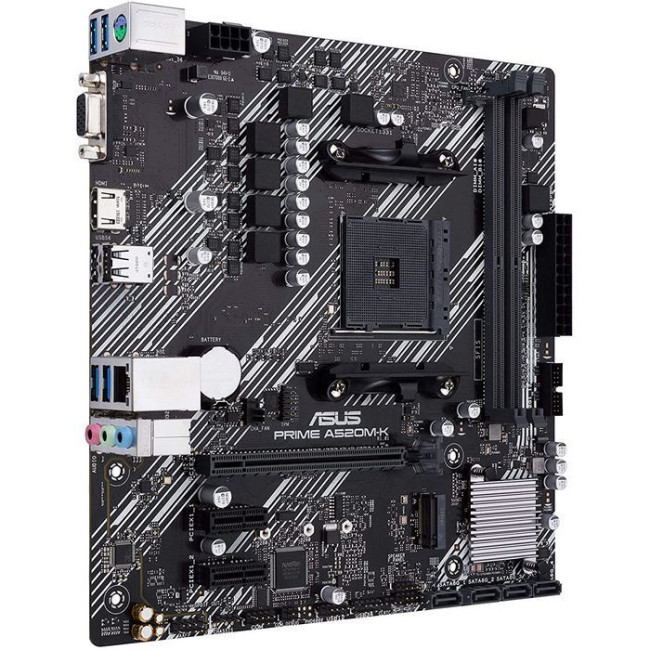

Motherboard Asus PRIME A520M-K DDR4 AM4
http://compshop.co.il/en/hardware-and-software/motherboards/amd-motherboards/motherboard-asus-prime-a520m-k-matx-am4-en
- SKU 41354
- Brand: Asus
- Product Code: 22767-05
₪279
Description
Manufacturer: Asus, Memory Frequency: 4600MHz, Socket: AM4, Chipset: A520, Memory Type: DDR4, Warranty: 3 years, Condition: New, SKU: 41354Specification
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | PRIME A520M-K, 90MB1500-M0EAY0 |
| Model | PRIME A520M-K |
| Color | Does not apply |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| Chipset | A520 |
| Compatibility for computer assembly | AMD Motherboards |
| Configuration | mATX |
| Internal Ports / Inputs | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Memory Frequency | 4600MHz |
| Socket | AM4 |
| Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Wired Communication | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
| סוג הזיכרון | DDR4 |
| What'S In The Box? | User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s) |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus PRIME A520M-K DDR4 AM4 |
| Matching SKUs | ID: 41354, OC: 22767-05, EASX: 90MB1500-M0EAY0, VSL: PRIME A520M-K, CD: 90MB1500-M0EAY0, MPN: PRIME A520M-K, MPN2: 90MB1500-M0EAY0 |
The price is valid as of 24.05.2025
