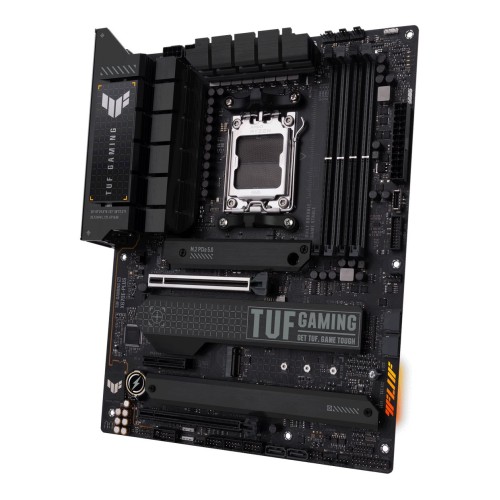

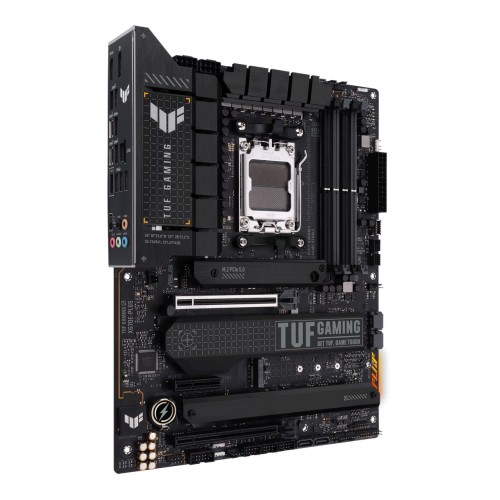

Motherboard Asus TUF GAMING X670E-PLUS DDR5 AM5
http://compshop.co.il/en/hardware-and-software/motherboards/amd-motherboards/motherboard-asus-tuf-gaming-x670e-plus-atx-am5-en
- SKU 50211
- Brand: Asus
- Product Code: 50211
₪1,562
Description
Manufacturer: Asus, Socket: AM5, Chipset: X670, Memory Type: DDR5, Warranty: 3 years, Condition: New, SKU: 50211Specification
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | 90MB1BJ0-M0EAY0, TUF GAMING X670E-PLUS |
| Model | TUF GAMING X670E-PLUS |
| Color | Does not apply |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

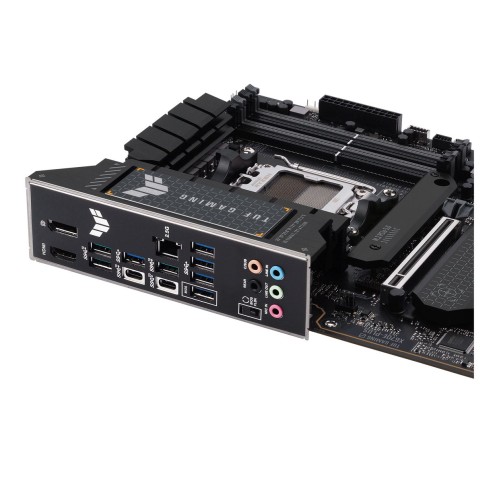

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI®&port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Chipset | X670 |
| Compatibility for computer assembly | AMD Motherboards |
| Configuration | ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Memory | 4 x DIMM, Max. 128GB, DDR5 64+(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(OC)/ 54(OC)/ 52/ 5/ 48 ECC & Non-ECC, Un-buffered Memory* |
| Socket | AM5 |
| Storage | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* |
| Wired Communication | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| סוג הזיכרון | DDR5 |
| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus TUF GAMING X670E-PLUS DDR5 AM5 |
| Matching SKUs | ID: 50211, OC: 25458, EASX: 90MB1BJ0-M0EAY0, VSL: 90MB1BJ0-M0EAY0, CD: 90MB1BJ0-M0EAY0, MPN: 90MB1BJ0-M0EAY0, MPN2: TUF GAMING X670E-PLUS |
The price is valid as of 16.11.2025
