| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | 90MB1CL0-M0EAY0, ROG STRIX Z790-E GAMING WIFI |
| Model | ROG STRIX Z790-E GAMING WIFI |
| Color | Does not apply |
| Condition | New |
| Manufacturer | Asus |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Chipset | Z690 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | ATX |
| Device Compatibility | 90MB1CL0-M0EAY0 |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®&with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alternative PCIe Mode Switch 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
| Memory | 4 x DIMM, Max. 128GB, DDR5 78+(OC)/76(OC)/74(OC)/72(OC)/7(OC)/68(OC)/66(OC)/64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56/ 54/ 52/ 5/ 48 Non-ECC, Un-buffered Memory* |
| Socket | LGA1700 |
| Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Wired Communication | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless network | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 * WiFi 6E 6GHz regulatory may vary between countries. |
| סוג הזיכרון | DDR5 |
| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 Fan holder 1 x VRM Fan holder 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x M.2 backplate Rubber PackageDocumentation 1 x User guide |
| Link To The Manufacturer'S Website | |

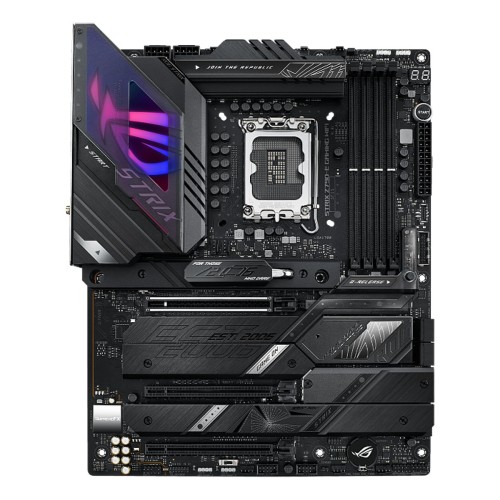

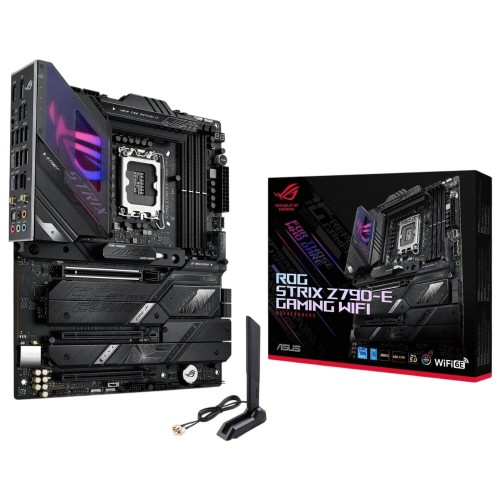

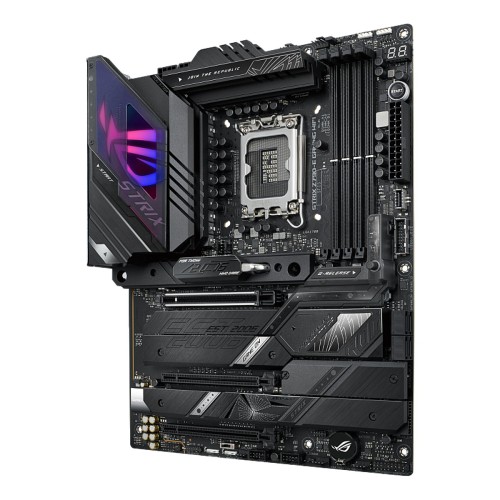

| Product Link | Motherboard Asus ROG STRIX Z790-E GAMING WIFI DDR5 ATX LGA1700 |
| Matching SKUs | ID: 50256, OC: 25473-05, EASX: 90MB1CL0-M0EAY0, VSL: 90MB1CL0-M0EAY0, CD: 90MB1CL0-M0EAY0, MPN: 90MB1CL0-M0EAY0, MPN2: ROG STRIX Z790-E GAMING WIFI |
The price is valid as of 05.04.2025
