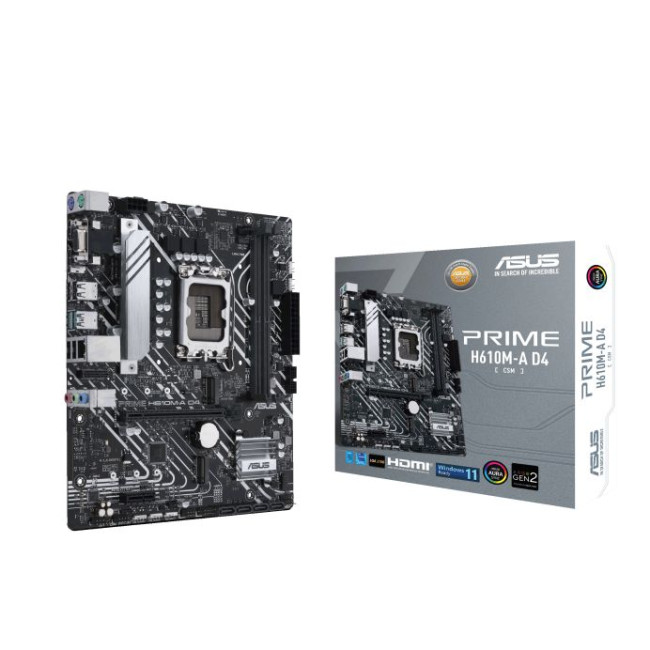

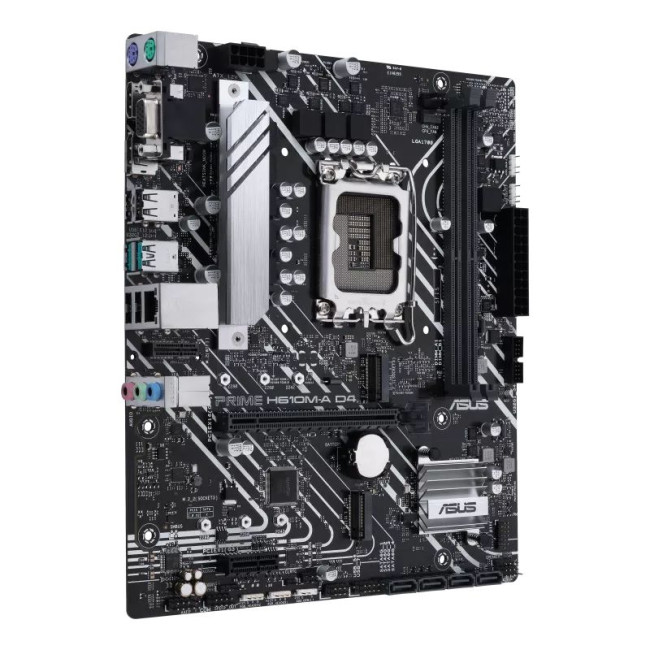

Motherboard Asus PRIME H610M-A D4-CSM DDR4 LGA1700

http://compshop.co.il/en/hardware-and-software/motherboards/intel-motherboards/motherboard-asus-prime-h610m-a-d4-csm-matx-lga1700-en

SKU 50586
Brand: Asus
Product Code: 25535-05

₪426

Specification

Review
Warranty	3 years
Service During The Warranty Period (Who To Contact)	COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number	PRIME H610M-A D4-CSM, 90MB19P0-M0EAYC
Model	PRIME H610M-A D4-CSM
Color	Does not apply
Condition	New
Manufacturer	Asus
Audio	2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Back Panel Connectors	2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI^®&port 1 x D-Sub port 1 x V-M.2 slot (Key E) 1 x Intel^®&1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Chipset	H610
Compatibility for computer assembly	Intel Motherboards
Configuration	mATX
Internal Ports / Inputs	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Memory	2 x DIMM, Max. 64GB, DDR4 32/3/2933/28/2666/24/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^®&Extreme Memory Profile (XMP)
Socket	LGA1700
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel^®&H610 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
Wired Communication	1 x Intel 1Gb Ethernet
Wireless network	V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
סוג הזיכרון	DDR4
What'S In The Box?	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User guide
Link To The Manufacturer'S Website	Get full product information - Go to product page
Product Link	Motherboard Asus PRIME H610M-A D4-CSM DDR4 LGA1700
Matching SKUs	ID: 50586, OC: 25535, EASX: 90MB19P0-M0EAYC, VSL: 90MB19P0-M0EAYC, MPN: PRIME H610M-A D4-CSM, MPN2: 90MB19P0-M0EAYC

Review

Warranty

3 years

Service During The Warranty Period (Who To Contact)

COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part Number

PRIME H610M-A D4-CSM, 90MB19P0-M0EAYC

Model

PRIME H610M-A D4-CSM

Color

Does not apply

Condition

New

Manufacturer

Asus

Audio

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

Back Panel Connectors

2 x USB 3.2 Gen 2 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI^®&port

1 x D-Sub port

1 x V-M.2 slot (Key E)

1 x Intel^®&1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port

Chipset

H610

Compatibility for computer assembly

Intel Motherboards

Configuration

mATX

Internal Ports / Inputs

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 3 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x COM Port header

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Memory

2 x DIMM, Max. 64GB, DDR4 32/3/2933/28/2666/24/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^®&Extreme Memory Profile (XMP)

Socket

LGA1700

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel^®&H610 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

4 x SATA 6Gb/s ports

Wired Communication

1 x Intel 1Gb Ethernet

Wireless network

V-M.2 slot only (Key E, CNVi & PCIe)*

* Wi-Fi module is sold separately.

סוג הזיכרון

DDR4

What'S In The Box?

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User guide

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Motherboard Asus PRIME H610M-A D4-CSM DDR4 LGA1700

Matching SKUs

ID: 50586, OC: 25535, EASX: 90MB19P0-M0EAYC, VSL: 90MB19P0-M0EAYC, MPN: PRIME H610M-A D4-CSM, MPN2: 90MB19P0-M0EAYC
