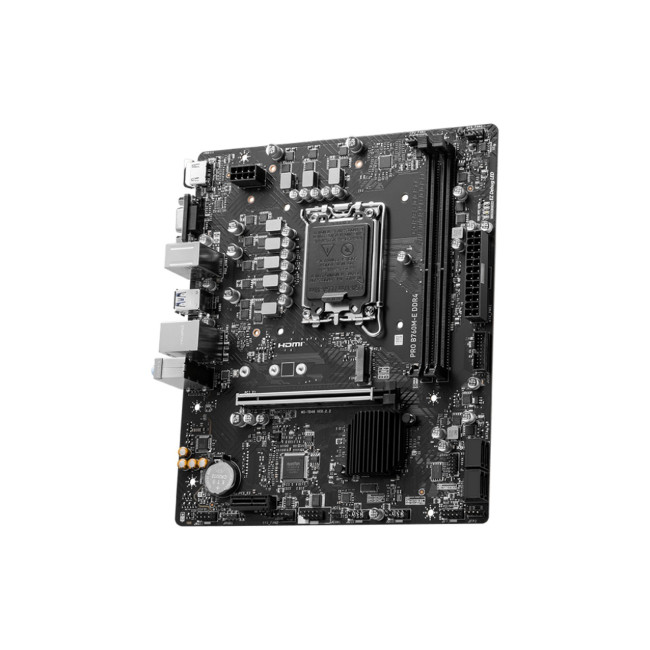

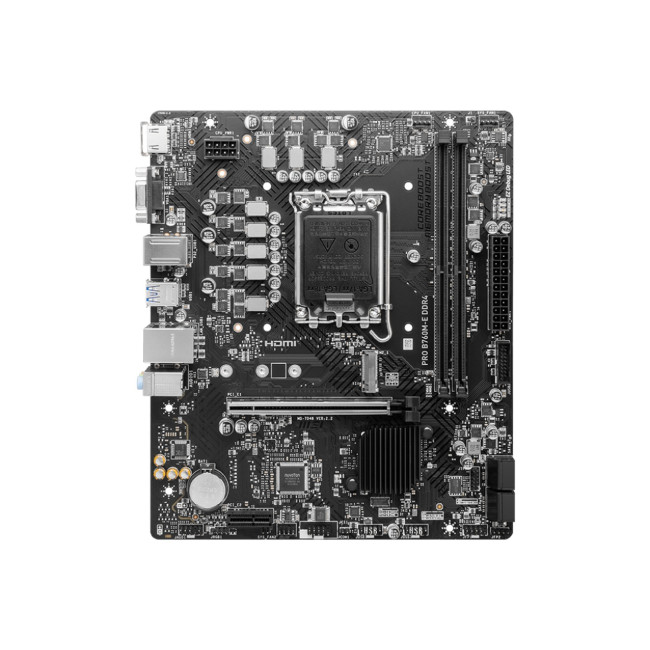

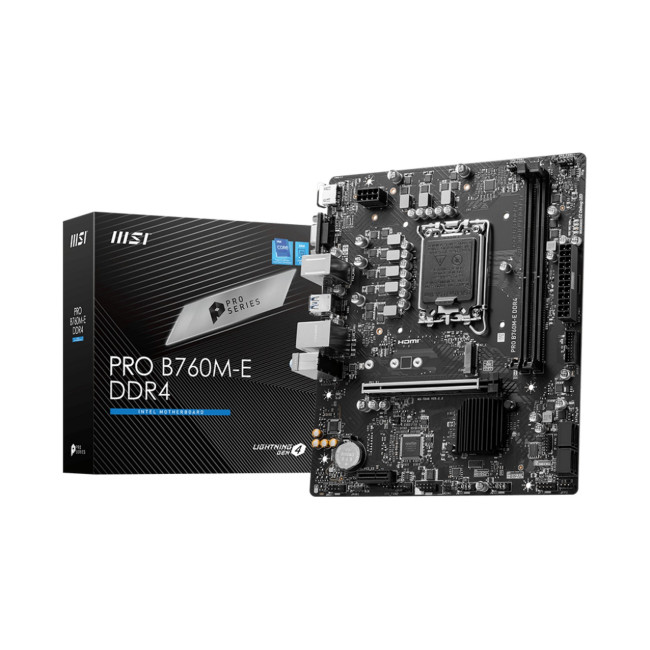

Motherboard MSI PRO B760M-E DDR4 mATX LGA1700

http://compshop.co.il/en/hardware-and-software/motherboards/intel-motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-msi-pro-b760m-e-ddr4-matx-lga1700-en

Motherboard MSI PRO B760M-E DDR4 mATX LGA1700
Product QR Code
  • SKU 55081
  • Brand: Msi
  • Product Code: 26740-05

  • ₪483

Motherboard MSI PRO B760M-E DDR4 mATX LGA1700
Motherboard MSI PRO B760M-E DDR4 mATX LGA1700

Description

Manufacturer: Msi, Socket: LGA1700, Chipset: B760, Memory Type: DDR4

Specification

Review
Warranty3 years
Service During The Warranty Period (Who To Contact)COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part NumberPRO B760M-E DDR4
ModelPRO B760M-E DDR4
Barcode4.71138E+12
ConditionNew
ManufacturerMsi
Amtel.
Audio

Realtek®&ALC897 Codec
7.1-Channel High Definition Audio

Back Panel Connectors
  • HDMI™
  • VGA
  • Keyboard / Mouse
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • LAN port
  • Audio Connectors
  • USB 2.0
  • USB 2.0
ChipsetB760
Compatibility for computer assemblyIntel Motherboards
ConfigurationmATX
Dimensions200mmx236.16mm
Internal Ports / Inputs

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports

Memory

2x DDR4, Maximum Memory Capacity 64GB
Memory Support 48(OC)/ 46(OC)/ 44(OC)/ 4266(OC)/ 42(OC)/ 4(OC)/ 38(OC)/ 3733(OC)/ 36(OC)/ 3466(OC)/ 34(OC)/ 3333(OC)/ 32(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 24(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 48+ MHz
• 1DPC 2R Max speed up to 46+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel®&Extreme Memory Profile (XMP)

SocketLGA1700
Storage

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

Wired CommunicationRealtek RTL8111H Gigabit LAN
סוג הזיכרוןDDR4
Link To The Manufacturer'S Website

Get full product information - Go to product page

Product LinkMotherboard MSI PRO B760M-E DDR4 mATX LGA1700

The price is valid as of 24.10.2024
