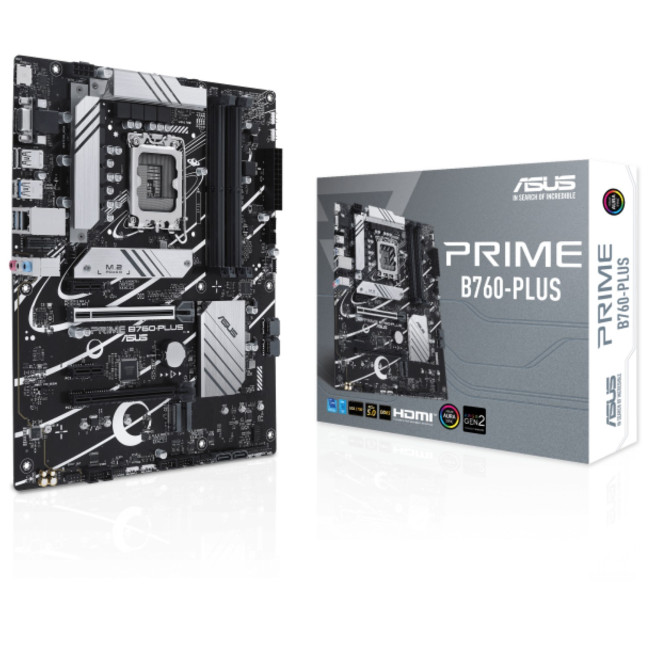

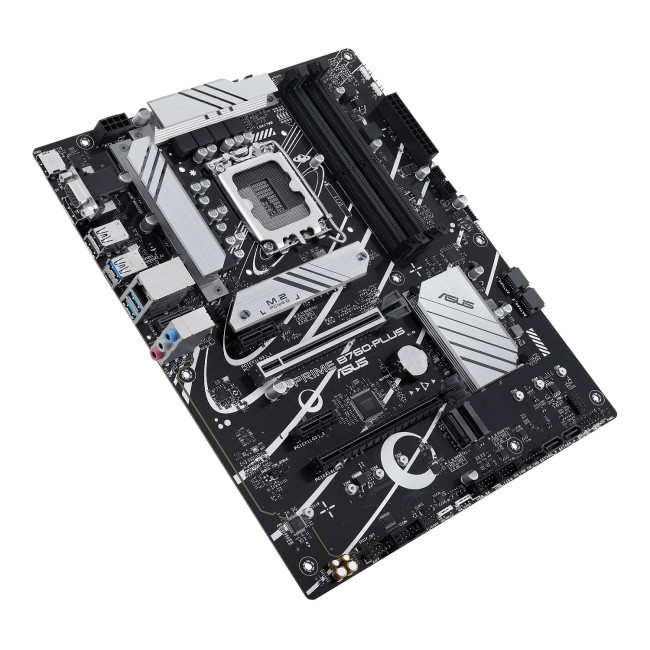

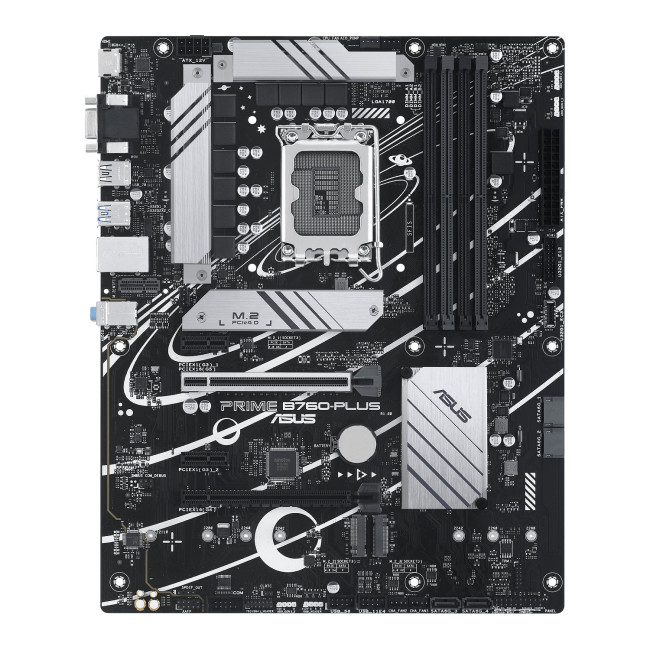

Motherboard Asus PRIME B760-PLUS DDR5 LGA1700

http://compshop.co.il/en/hardware-and-software/motherboards/intel-motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-asus-prime-b760-plus-atx-lga1700-en

SKU 55450
Brand: Asus
Product Code: 26835-05

₪803

Specification

Review
Warranty	3 years
Service During The Warranty Period (Who To Contact)	COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number	90MB1EF0-M0EAY0, 90MB1EF0-M1EAY0, PRIME B760-PLUS
Model	PRIME B760-PLUS
Color	Does not apply
Condition	New
Manufacturer	Asus
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel Connectors	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Chipset	B760
Compatibility for computer assembly	Intel Motherboards
Configuration	ATX
Dimensions	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Internal Ports / Inputs	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®&) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4^®) header
Memory	4 x DIMM, Max. 192GB, DDR5 72+(OC)/7(OC)/68(OC)/66(OC)/64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56/ 54/ 52/ 5/ 48 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^®&Extreme Memory Profile (XMP) OptiMem II
Socket	LGA1700
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^®&13^th&& 12^th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel^®&Rapid Storage Technology supports SATA RAID 0/1/5/10.
Wired Communication	1 x Realtek 2.5Gb Ethernet
Wireless network	Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
סוג הזיכרון	DDR5
What'S In The Box?	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide
Link To The Manufacturer'S Website	Get full product information - Go to product page
Product Link	Motherboard Asus PRIME B760-PLUS DDR5 LGA1700
Matching SKUs	ID: 55450, OC: 26835-05, EASX: 90MB1EF0-M0EAY0, VSL: 90MB1EF0-M0EAY0, VSL2: 90MB1EF0-M1EAY0, CD: 90MB1EF0-M1EAY0, MPN: 90MB1EF0-M0EAY0, MPN2: 90MB1EF0-M1EAY0, MPN3: PRIME B760-PLUS

Review

Warranty

3 years

Service During The Warranty Period (Who To Contact)

COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part Number

90MB1EF0-M0EAY0, 90MB1EF0-M1EAY0, PRIME B760-PLUS

Model

PRIME B760-PLUS

Color

Does not apply

Condition

New

Manufacturer

Asus

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel Connectors

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Chipset

B760

Compatibility for computer assembly

Intel Motherboards

Configuration

ATX

Dimensions

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Internal Ports / Inputs

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®&)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4^®) header

Memory

4 x DIMM, Max. 192GB, DDR5 72+(OC)/7(OC)/68(OC)/66(OC)/64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56/ 54/ 52/ 5/ 48 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^®&Extreme Memory Profile (XMP)
OptiMem II

Socket

LGA1700

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^®&13^th&& 12^th&Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^®&B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel^®&Rapid Storage Technology supports SATA RAID 0/1/5/10.

Wired Communication

1 x Realtek 2.5Gb Ethernet

Wireless network

Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

סוג הזיכרון

DDR5

What'S In The Box?

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Motherboard Asus PRIME B760-PLUS DDR5 LGA1700

Matching SKUs

ID: 55450, OC: 26835-05, EASX: 90MB1EF0-M0EAY0, VSL: 90MB1EF0-M0EAY0, VSL2: 90MB1EF0-M1EAY0, CD: 90MB1EF0-M1EAY0, MPN: 90MB1EF0-M0EAY0, MPN2: 90MB1EF0-M1EAY0, MPN3: PRIME B760-PLUS
