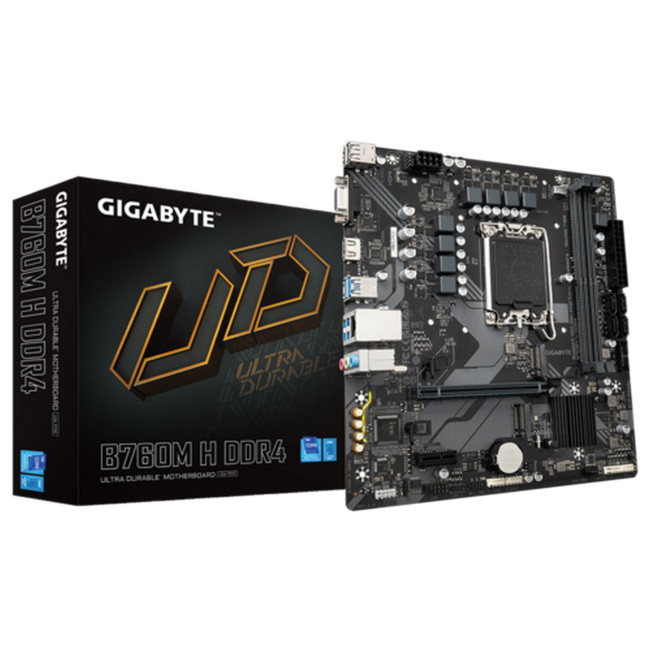

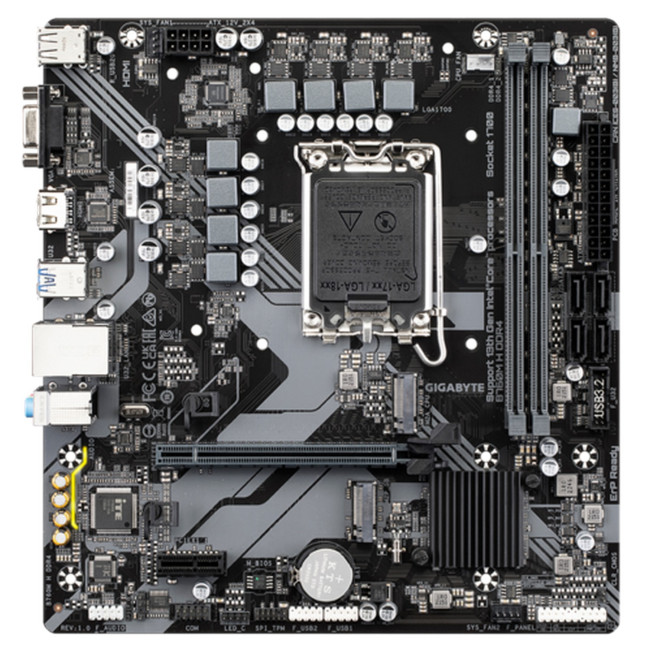

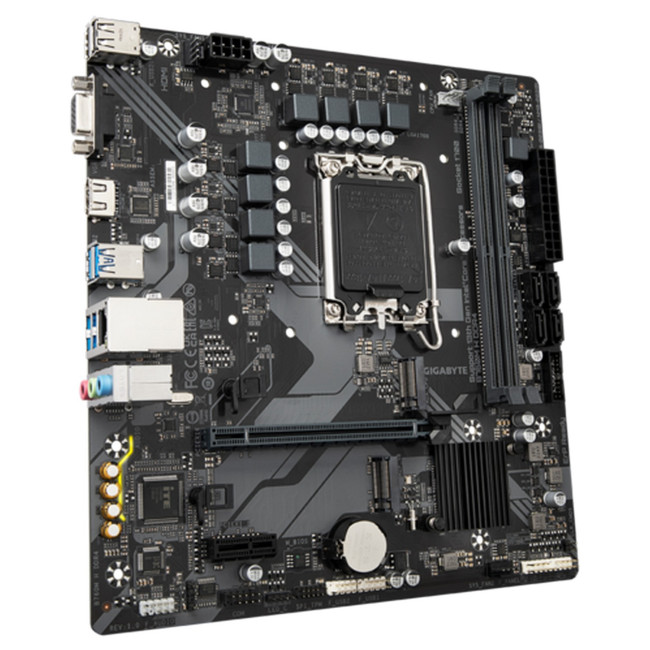

Motherboard Gigabyte Micro ATX LGA1700

http://compshop.co.il/en/hardware-and-software/motherboards/intel-motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-gigabyte-b760m-h-ddr4-micro-atx-lga1700-en

SKU 55972
Brand: Gigabyte
Product Code: 27003-05

₪457

Specification

Review
Warranty	3 years
Service During The Warranty Period (Who To Contact)	COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number	B760M H DDR4
Model	B760M H DDR4
Color	black
Condition	New
Manufacturer	Gigabyte
Audio	Realtek^® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
Chipset	B760
Compatibility for computer assembly	Intel Motherboards
Configuration	Micro ATX
Dimensions	Micro ATX Form Factor; 23.0cm x 21.5cm
Internal Ports / Inputs	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Memory	Support for DDR4 32/3/2933/2666/24/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Socket	LGA1700
Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Wired Communication	Realtek GbE LAN chip (1 Gbps/100 Mbps)
סוג הזיכרון	DDR4
Link To The Manufacturer'S Website	Get full product information - Go to product page
Product Link	Motherboard Gigabyte B760M H DDR4 Micro ATX LGA1700

Review

Warranty

3 years

Service During The Warranty Period (Who To Contact)

COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part Number

B760M H DDR4

Model

B760M H DDR4

Color

black

Condition

New

Manufacturer

Gigabyte

Audio

Realtek^® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

Back Panel Connectors

2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

Chipset

B760

Compatibility for computer assembly

Intel Motherboards

Configuration

Micro ATX

Dimensions

Micro ATX Form Factor; 23.0cm x 21.5cm

Internal Ports / Inputs

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Memory

Support for DDR4 32/3/2933/2666/24/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Socket

LGA1700

Storage

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Wired Communication

Realtek GbE LAN chip (1 Gbps/100 Mbps)

סוג הזיכרון

DDR4

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Motherboard Gigabyte B760M H DDR4 Micro ATX LGA1700
