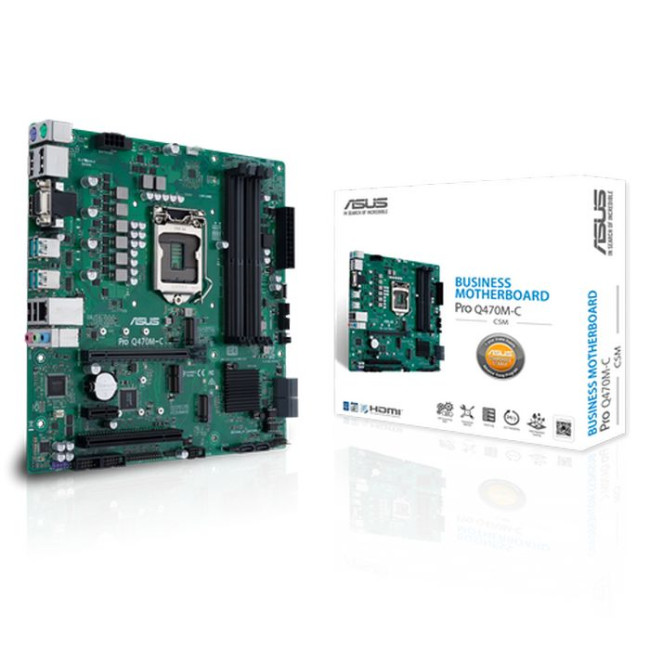

Motherboard Asus Pro Q470M-C/CSM DDR4 LGA1200
http://compshop.co.il/en/hardware-and-software/motherboards/intel-motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-asus-pro-q470m-c-csm-matx-lga1200-en
- SKU 43073
- Brand: Asus
- Product Code: 33582-05
₪815
Description
Manufacturer: Asus, Memory Frequency: 2933MHz, Socket: LGA1200, Chipset: Q470, Memory Type: DDR4, Warranty: 3 years, Condition: New, SKU: 43073Specification
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | Pro Q470M-C/CSM, 90MB1380-M0EAYC |
| Model | Pro Q470M-C/CSM |
| Color | Does not apply |
| Condition | New |
| Manufacturer | Asus |
| 1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory OptiMem * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 2 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) 2 x USB 2.0 3 x Audio jack(s) |
| Chipset | Q470 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | mATX |
| Internal Ports / Inputs | 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header 1 x USB 3.2 Gen 1 front panel TypeC connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x DIS ME jumper 1 x System panel connector 2 x COM port header 1 x LPC Debug header 1 x Speaker connector |
| Memory Frequency | 2933MHz |
| Socket | LGA1200 |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Q470 Chipset : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*1 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| Wired Communication | Intel I219-LM ASUS LANGuard |
| סוג הזיכרון | DDR4 |
| What'S In The Box? | User´s manual 1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus Pro Q470M-C/CSM DDR4 LGA1200 |
| Matching SKUs | ID: 43073, OC: 33582-05, CD: 90MB1380-M0EAYC, MPN: Pro Q470M-C/CSM, MPN2: 90MB1380-M0EAYC |
The price is valid as of 16.07.2025
