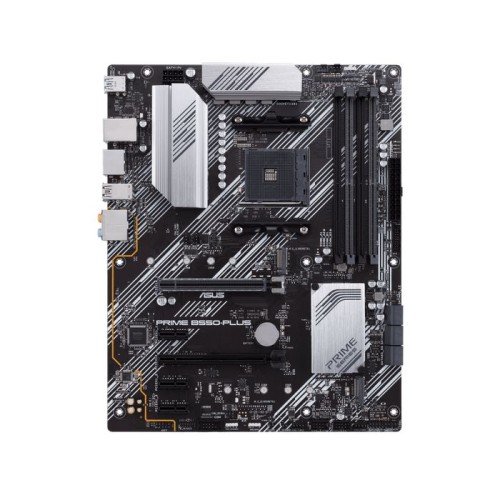

Motherboard Asus PRIME B550-PLUS DDR4 AM4

http://compshop.co.il/en/hardware-and-software/motherboards/amd-motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-asus-prime-b550-plus-atx-am4-en

SKU 41483
Brand: Asus
Product Code: 41483

₪627

Description

The Asus PRIME B550-PLUS 90MB14U0-M0EAY0 motherboard (AM4 socket) offers advanced performance with support for PCIe 4.0, dual M.2 slots, 1 Gigabit network, DisplayPort/HDMI outputs, SATA 6 Gbps connections, and USB 3.2 Gen 2 Type-A and Type-C. Includes support for Aura Sync RGB.

Asus

4600MHz

AM4

B550

DDR4

3 years

New

41483

Specification

Review
Warranty	3 years
Service During The Warranty Period (Who To Contact)	COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number	90MB14U0-M0EAY0, PRIME B550-PLUS
Model	PRIME B550-PLUS
Color	Does not apply
Condition	New
Manufacturer	Asus
Revew	AMD B550 motherboard (Ryzen AM4) in ATX form factor with two M.2 slots, PCIe 4.0, 1 Gigabit Ethernet connection, DisplayPort/HDMI outputs, 6 Gigabit per second SATA connections, USB 3.2 Gen 2 Type-A and Type-C, and support for Aura Sync RGB headers. AMD AM4 Socket: Suitable for 3rd generation AMD Ryzen processors and 3rd generation AMD Ryzen processors with Radeon graphics Ultra-fast connectivity: Two M.2 slots, PCIe 4.0, 1 Gigabit Ethernet, USB 3.2 Gen 2 Type-A and Type-C Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4 Aura Sync RGB: Built-in second-generation RGB LED header, easily synchronized with Aura Sync compatible hardware
1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * AMD RyzenTM 4000 G-Series Processor 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit
Back Panel Connectors	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Chipset	B550
Compatibility for computer assembly	AMD Motherboards
Configuration	ATX
Internal Ports / Inputs	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Memory Frequency	4600MHz
Packing	Retail
Socket	AM4
Storage	Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD RyzenTM 4000 G-Series Processor : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)2 6 x SATA 6Gb/s port(s), 2 Support Raid 0, 1, 10
Wired Communication	Realtek RTL8111H ASUS LANGuard
סוג הזיכרון	DDR4
What'S In The Box?	User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x M.2 SSD screw package(s)
Link To The Manufacturer'S Website	Get full product information - Go to product page
Product Link	Motherboard Asus PRIME B550-PLUS DDR4 AM4
Matching SKUs	ID: 41483, OC: 33682, EASX: 90MB14U0-M0EAY0, CD: 90MB14U0-M0EAY0, MPN: 90MB14U0-M0EAY0, MPN2: PRIME B550-PLUS

Review

Warranty

3 years

Service During The Warranty Period (Who To Contact)

COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part Number

90MB14U0-M0EAY0, PRIME B550-PLUS

Model

PRIME B550-PLUS

Color

Does not apply

Condition

New

Manufacturer

Asus

Revew

AMD B550 motherboard (Ryzen AM4) in ATX form factor with two M.2 slots, PCIe 4.0, 1 Gigabit Ethernet connection, DisplayPort/HDMI outputs, 6 Gigabit per second SATA connections, USB 3.2 Gen 2 Type-A and Type-C, and support for Aura Sync RGB headers.

AMD AM4 Socket: Suitable for 3rd generation AMD Ryzen processors and 3rd generation AMD Ryzen processors with Radeon graphics
Ultra-fast connectivity: Two M.2 slots, PCIe 4.0, 1 Gigabit Ethernet, USB 3.2 Gen 2 Type-A and Type-C
Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
Aura Sync RGB: Built-in second-generation RGB LED header, easily synchronized with Aura Sync compatible hardware

1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *

AMD RyzenTM 4000 G-Series Processor

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Refer to

www.asus.com

for the Memory QVL (Qualified Vendors Lists).

Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit

Back Panel Connectors

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Chipset

B550

Compatibility for computer assembly

AMD Motherboards

Configuration

ATX

Internal Ports / Inputs

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

Memory Frequency

4600MHz

Packing

Retail

Socket

AM4

Storage

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD RyzenTM 4000 G-Series Processor :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD B550 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
6 x SATA 6Gb/s port(s), *2
Support Raid 0, 1, 10

Wired Communication

Realtek RTL8111H

ASUS LANGuard

סוג הזיכרון

DDR4

What'S In The Box?

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x M.2 SSD screw package(s)

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Motherboard Asus PRIME B550-PLUS DDR4 AM4

Matching SKUs

ID: 41483, OC: 33682, EASX: 90MB14U0-M0EAY0, CD: 90MB14U0-M0EAY0, MPN: 90MB14U0-M0EAY0, MPN2: PRIME B550-PLUS
