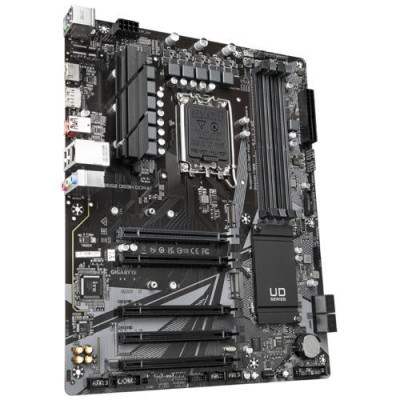

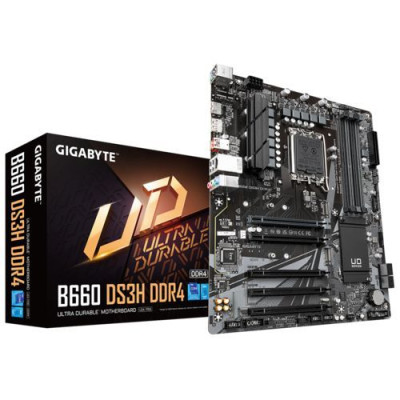

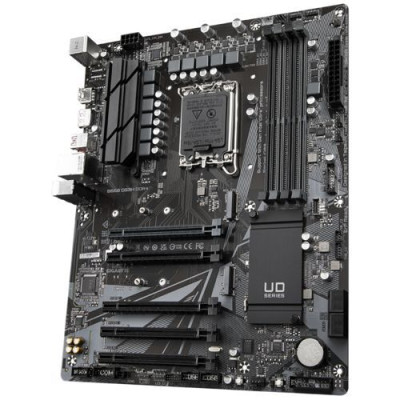

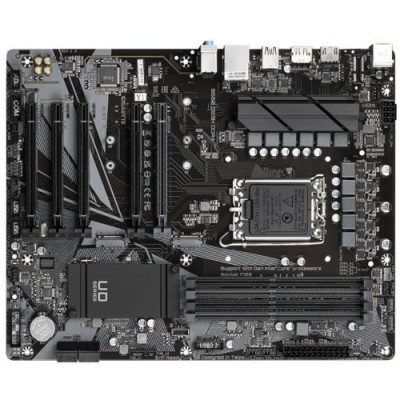

לוח אם Gigabyte B660 DS3H DDR4 ATX LGA1700

073-2241747

גיא אוני 6, אשדוד

• CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors

  Support for RAID 0, RAID 1, RAID 5, and RAID 10

  Intel^®&Optane™ Memory Ready
  * System acceleration with Intel^®&Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.

• Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5(O.C.)/4933(O.C.)/48(O.C.)/ 47(O.C.)/ 46(O.C.)/ 45(O.C.)/ 44(O.C.)/ 43(O.C.)/4266(O.C.) / 4133(O.C.) / 4(O.C.) / 3866(O.C.) / 38(O.C.) / 3733(O.C.) / 3666(O.C.) / 36(O.C.) / 3466(O.C.) / 34(O.C.) / 3333(O.C.) / 33(O.C.) / 32/3/2933/2666/24/2133 MHz memory modules
• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

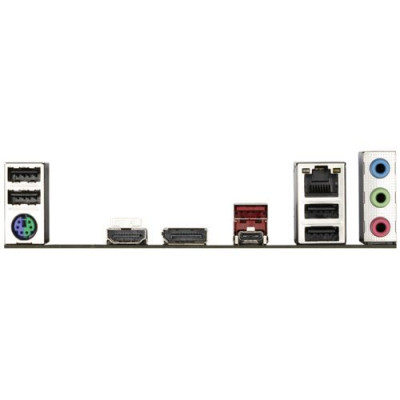

1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 4 x USB 2.0/1.1 ports
5. 1 x HDMI port
6. 1 x DisplayPort
7. 1 x RJ-45 port
8. 3 x audio jacks

• 1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 2 x addressable LED strip headers
  8. 2 x RGB LED strip headers
  9. 2 x M.2 Socket 3 connectors
  10. 4 x SATA 6Gb/s connectors
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C^®&header, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 2 x Thunderbolt™ add-in card connectors
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  18. 1 x serial port header
  19. 1 x Q-Flash Plus button
  20. 1 x reset button
  21. 1 x reset jumper
  22. 1 x Clear CMOS jumper
  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
