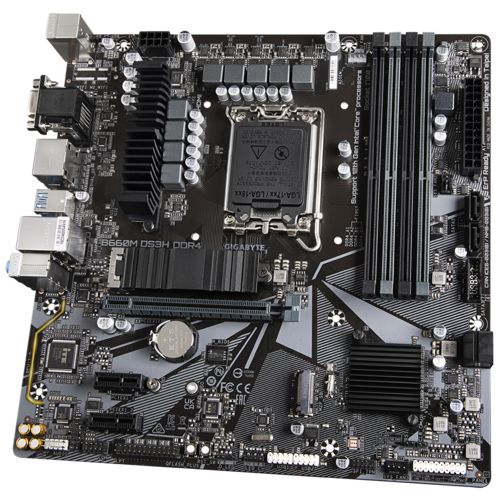

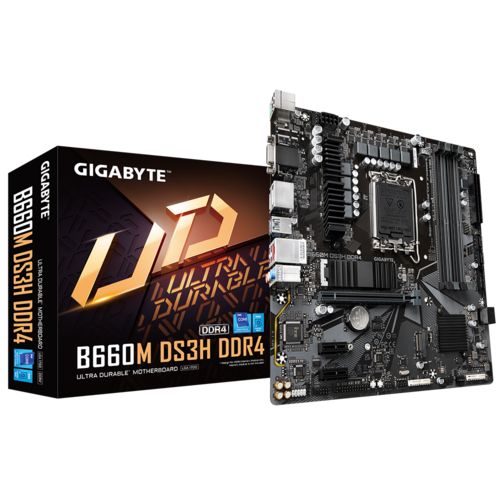

Motherboard Gigabyte B660M DS3H DDR4 DDR4 DIMM LGA1700
Product QR Code
  • SKU 45944
  • Brand: Gigabyte
  • Product Code: 45944

Description

Short review: Gigabyte B660M DS3H DDR4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform., Manufacturer: Gigabyte, Socket: LGA1700, Chipset: B660, Memory Volume: 128GB, Memory Type: DDR4 DIMM, Condition: New, SKU: 45944

Specification

Specification
Revew

Gigabyte B660M DS3H DDR4

Gigabyte B660M DS3H DDR4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform.

The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

Key specifications

  • Memory: 128GB
  • Memory type: DDR4
  • CPU socket: LGA1700
  • Chipset: B660

What it is for

This product is intended for building a PC or upgrading the platform.

Product identification

Manufacturer part number: B660M DS3H DDR4. Use it to confirm that accessories and spare parts match.
Review
Service During The Warranty Period (Who To Contact) COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number B660M DS3H DDR4
Model B660M DS3H DDR4
Condition New
Manufacturer Gigabyte
Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
    • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x D-Sub port
    4. 1 x HDMI port
    5. 2 x DisplayPorts
    6. 3 x USB 3.2 Gen 1 ports
    7. 1 x USB Type-C port, with USB 3.2 Gen 2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks
    Chipset B660
    Compatibility for computer assembly Intel Motherboards
    Configuration Micro ATX
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x serial port header
    15. 1 x parallel port header
    16. 1 x S/PDIF Out header
    17. 1 x Q-Flash Plus button
    18. 1 x reset button
    19. 1 x reset jumper
    20. 1 x Clear CMOS jumper

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

    Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    Memory Type DDR4 DIMM
    Memory Volume 128GB
    Socket LGA1700
    Storage

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10



    Intel Optane Memory Ready


    * System acceleration with Intel Optane Memory can only be enabled on the M.2 connector supported by the Chipset.

    Wired Communication Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Link To The Manufacturer'S Website

    Get full product information - Go to product page
    Product Link Motherboard Gigabyte B660M DS3H DDR4 DDR4 DIMM LGA1700
    Matching SKUs ID:~45944~, NEW, OC: 24127, ML: 95B66000, CD: GB660MDS3HDDR4, MPN: B660M DS3H DDR4
