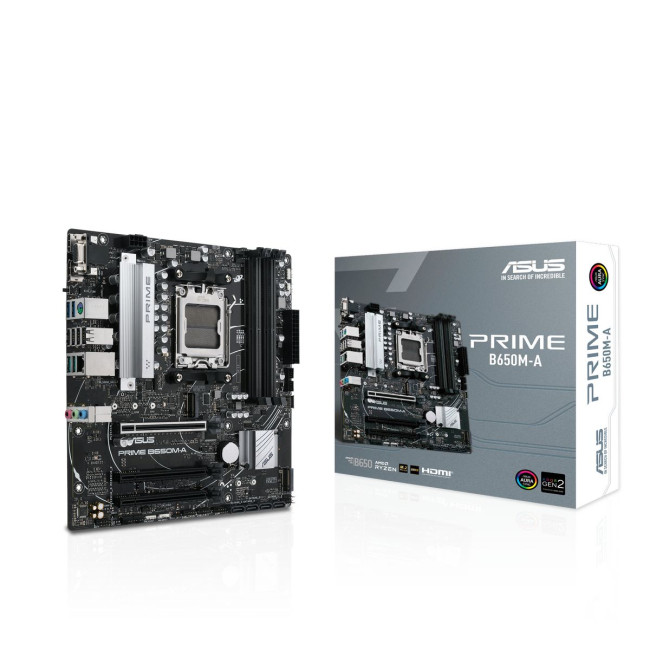

Motherboard Asus PRIME B650M-A DDR5 DIMM AM5

https://compshop.co.il/en/hardware-and-software/motherboards/amd-motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-asus-prime-b650m-a-matx-am5-en

SKU 52312
Brand: Asus
Product Code: 52312

Specification

Specification
Revew	Asus PRIME B650M-A Asus PRIME B650M-A - memory 128GB, memory type DDR5, cpu socket AM5, chipset B650. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications Memory: 128GB Memory type: DDR5 CPU socket: AM5 Chipset: B650 What it is for This product is intended for building a PC or upgrading the platform. Product identification Manufacturer part number: 90MB1C10-M0EAY0. Use it to confirm that accessories and spare parts match.
Service During The Warranty Period (Who To Contact)	COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number	90MB1C10-M0EAY0, PRIME B650M-A
Model	PRIME B650M-A
Condition	New
Manufacturer	Asus
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel Connectors	2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI^®&port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack^™&button 1 x PS/2 Keyboard/Mouse combo port
Chipset	B650
Compatibility for computer assembly	AMD Motherboards
Configuration	mATX
Dimensions	9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Internal Ports / Inputs	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C^®&) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Memory	4 x DIMM, Max. 128GB, DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO^™) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for moreinformation refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Memory Type	DDR5 DIMM
Memory Volume	128GB
Socket	AM5
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen^™&7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Wired Communication	1 x Realtek 2.5Gb Ethernet
What'S In The Box?	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw Package for M.2 SSD Documentation 1 x User guide
Link To The Manufacturer'S Website	Get full product information - Go to product page
Product Link	Motherboard Asus PRIME B650M-A DDR5 DIMM AM5
Matching SKUs	ID:~52312~, NEW, OC: 25998, EASX: 90MB1C10-M0EAY0, VSL: 90MB1C10-M0EAY0, MPN: 90MB1C10-M0EAY0, MPN2: PRIME B650M-A

Specification

Revew

Asus PRIME B650M-A

Asus PRIME B650M-A - memory 128GB, memory type DDR5, cpu socket AM5, chipset B650. Suited for building a PC or upgrading the platform.

The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

Key specifications

Memory: 128GB
Memory type: DDR5
CPU socket: AM5
Chipset: B650

What it is for

This product is intended for building a PC or upgrading the platform.

Product identification

Manufacturer part number: 90MB1C10-M0EAY0. Use it to confirm that accessories and spare parts match.

Review

Service During The Warranty Period (Who To Contact)

COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part Number

90MB1C10-M0EAY0, PRIME B650M-A

Model

PRIME B650M-A

Condition

New

Manufacturer

Asus

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel Connectors

2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI^®&port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack^™&button
1 x PS/2 Keyboard/Mouse combo port

Chipset

B650

Compatibility for computer assembly

AMD Motherboards

Configuration

mATX

Dimensions

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Internal Ports / Inputs

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C^®&)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Memory

4 x DIMM, Max. 128GB, DDR5 5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for moreinformation refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Memory Type

DDR5 DIMM

Memory Volume

128GB

Socket

AM5

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen^™&7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Wired Communication

1 x Realtek 2.5Gb Ethernet

What'S In The Box?

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw Package for M.2 SSD
Documentation
1 x User guide

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Motherboard Asus PRIME B650M-A DDR5 DIMM AM5

Matching SKUs

ID:~52312~, NEW, OC: 25998, EASX: 90MB1C10-M0EAY0, VSL: 90MB1C10-M0EAY0, MPN: 90MB1C10-M0EAY0, MPN2: PRIME B650M-A
