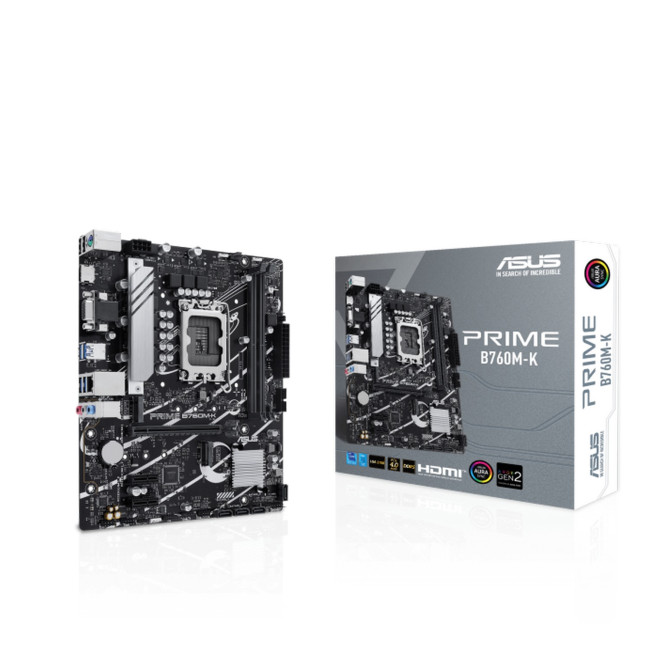

Motherboard Asus Prime PRIME B760M-K DDR5 DIMM LGA1700

https://compshop.co.il/en/hardware-and-software/motherboards/%D7%9C%D7%95%D7%97-%D7%90%D7%9D-asus-prime-b760m-k-matx-lga1700-en

SKU 54622
Brand: Asus
Product Code: 54622

₪652

Specification

Specification
Revew	Asus PRIME B760M-K Motherboard - LGA1700, Micro ATX The Asus PRIME B760M-K is a Micro ATX board built on the Intel B760 chipset and aimed at systems running 12th, 13th and 14th generation Intel Core processors. It is engineered to draw out the strengths of those CPUs while keeping the build compact and tidy. Platform & chipset At its core sit the Intel LGA 1700 socket and the B760 chipset, covering Core processors from the 12th through 14th generations. Asus highlights a strong power-delivery design and smart tuning through intuitive firmware and software, so the platform is also prepared for advanced AI-driven computing workloads. Memory & expansion The board runs DDR4 memory and provides fast connectivity that includes a PCIe 4.0 interface. Storage is served by two M.2 slots in PCIe 4.0 form for quick NVMe drives, with SATA3 ports on hand for additional disks. That mix allows a flexible storage layout inside a small footprint. Power, cooling & connectivity Cooling hardware brings a VRM heatsink and a PCH heatsink together with hybrid fan headers and Fan Xpert 2+ software for thermal control. Networking is handled by Realtek 2.5Gb Ethernet, and a front USB 3.2 Gen 1 header is supported. Onboard Aura Sync RGB with Addressable Gen 2 headers lets you sync lighting with compatible gear. Socket: Intel LGA 1700 Chipset: B760 Form factor: Micro ATX Memory: DDR4 Storage: two M.2 PCIe 4.0 slots, SATA3 Networking: Realtek 2.5Gb Ethernet Connectivity: USB 3.2 Gen 1, USB 2.0, Aura Sync RGB
Warranty	3 years
Service During The Warranty Period (Who To Contact)	COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod
Manufacturer Part Number	90MB1FI0-M0EAY0
Model	PRIME B760M-K
Condition	New
Video Card	VGA / HDMI
Manufacturer	Asus
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel Connectors	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI^TM&port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Chipset	B760
Compatibility for computer assembly	Intel Motherboards
Configuration	Micro ATX
Dimensions	9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Interface	USB 2.0 / USB 3.2
Internal Ports / Inputs	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Memory	2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel^®&Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit&https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Memory Interface	SATA3 / M.2 PCIe
Memory Type	DDR5 DIMM
Socket	LGA1700
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel^®&13^th&& 12^th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel^®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel^®&Rapid Storage Technology supports SATA RAID 0/1/5/10.
Wired Communication	1 x Realtek 2.5Gb Ethernet
Series	Prime
What'S In The Box?	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide
Link To The Manufacturer'S Website	Get full product information - Go to product page
Product Link	Motherboard Asus Prime PRIME B760M-K DDR5 DIMM LGA1700
Matching SKUs	ID:~54622~, NEW, OC: 26607, EASX: 90MB1FI0-M0EAY0, VSL: 90MB1FI0-M0EAY0, CD: 90MB1FI0-M0EAY0, MPN: 90MB1FI0-M0EAY0

Specification

Revew

Asus PRIME B760M-K Motherboard - LGA1700, Micro ATX

The Asus PRIME B760M-K is a Micro ATX board built on the Intel B760 chipset and aimed at systems running 12th, 13th and 14th generation Intel Core processors. It is engineered to draw out the strengths of those CPUs while keeping the build compact and tidy.

Platform & chipset

At its core sit the Intel LGA 1700 socket and the B760 chipset, covering Core processors from the 12th through 14th generations. Asus highlights a strong power-delivery design and smart tuning through intuitive firmware and software, so the platform is also prepared for advanced AI-driven computing workloads.

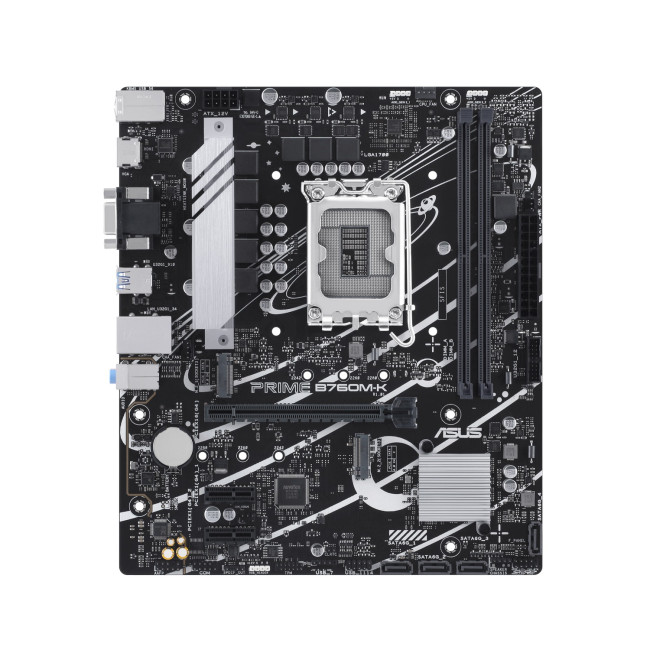

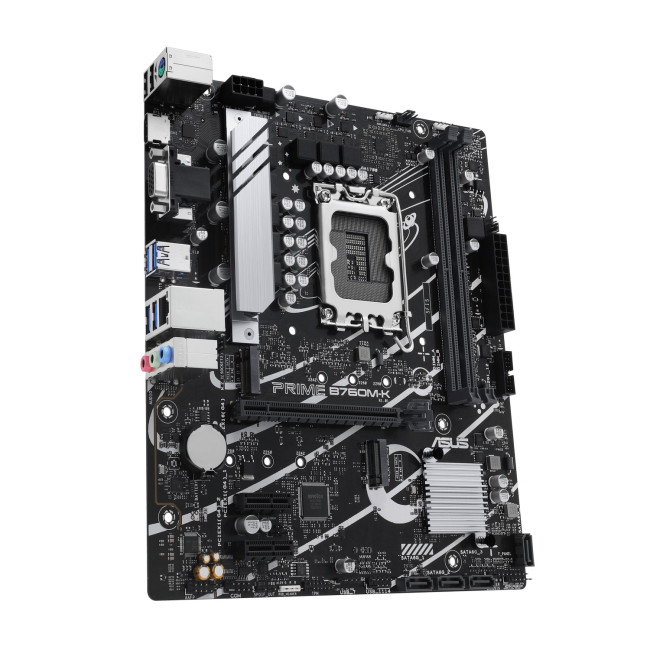

Asus PRIME B760M-K board layout and rear connectors

Memory & expansion

The board runs DDR4 memory and provides fast connectivity that includes a PCIe 4.0 interface. Storage is served by two M.2 slots in PCIe 4.0 form for quick NVMe drives, with SATA3 ports on hand for additional disks. That mix allows a flexible storage layout inside a small footprint.

Power, cooling & connectivity

Cooling hardware brings a VRM heatsink and a PCH heatsink together with hybrid fan headers and Fan Xpert 2+ software for thermal control. Networking is handled by Realtek 2.5Gb Ethernet, and a front USB 3.2 Gen 1 header is supported. Onboard Aura Sync RGB with Addressable Gen 2 headers lets you sync lighting with compatible gear.

Socket: Intel LGA 1700
Chipset: B760
Form factor: Micro ATX
Memory: DDR4
Storage: two M.2 PCIe 4.0 slots, SATA3
Networking: Realtek 2.5Gb Ethernet
Connectivity: USB 3.2 Gen 1, USB 2.0, Aura Sync RGB

Review

Warranty

3 years

Service During The Warranty Period (Who To Contact)

COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part Number

90MB1FI0-M0EAY0

Model

PRIME B760M-K

Condition

New

Video Card

VGA / HDMI

Manufacturer

Asus

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel Connectors

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI^TM&port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Chipset

B760

Compatibility for computer assembly

Intel Motherboards

Configuration

Micro ATX

Dimensions

9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Interface

USB 2.0 / USB 3.2

Internal Ports / Inputs

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Memory

2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel^®&Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit&https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Memory Interface

SATA3 / M.2 PCIe

Memory Type

DDR5 DIMM

Socket

LGA1700

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^®&13^th&& 12^th&Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^®&B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^®&Rapid Storage Technology supports SATA RAID 0/1/5/10.

Wired Communication

1 x Realtek 2.5Gb Ethernet

Series

Prime

What'S In The Box?

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 anchors
Documentation
1 x User guide

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Motherboard Asus Prime PRIME B760M-K DDR5 DIMM LGA1700

Matching SKUs

ID:~54622~, NEW, OC: 26607, EASX: 90MB1FI0-M0EAY0, VSL: 90MB1FI0-M0EAY0, CD: 90MB1FI0-M0EAY0, MPN: 90MB1FI0-M0EAY0
