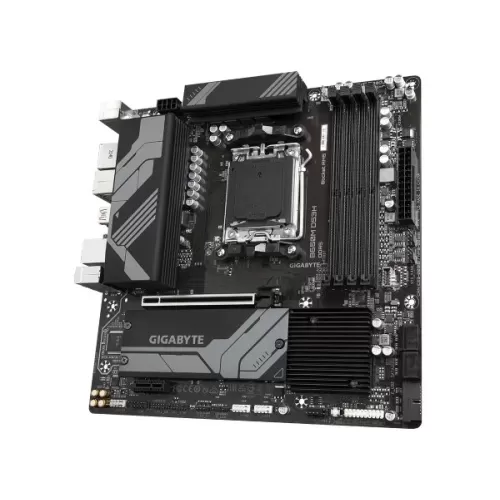

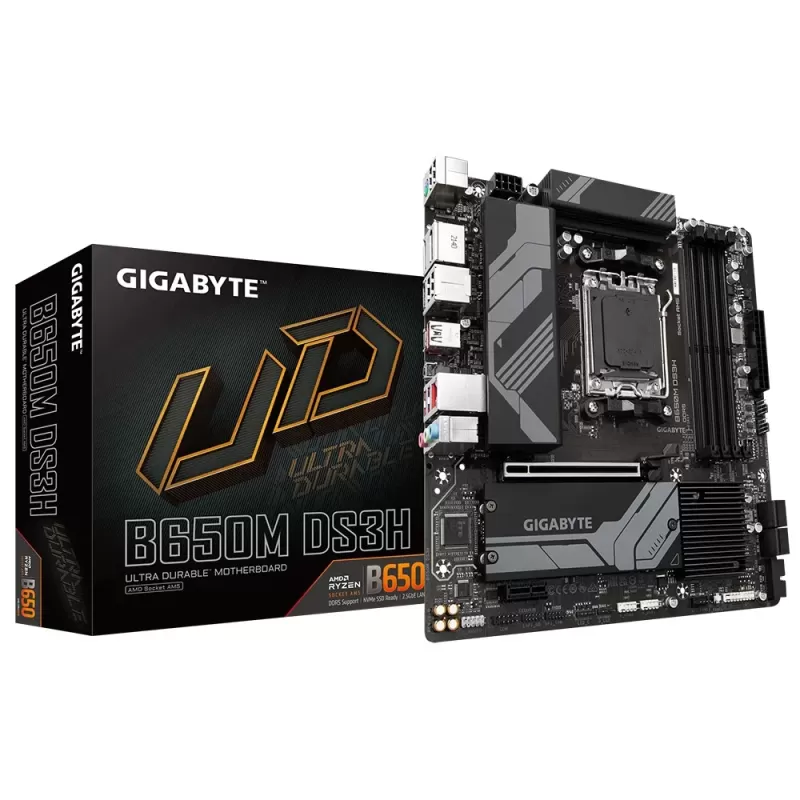

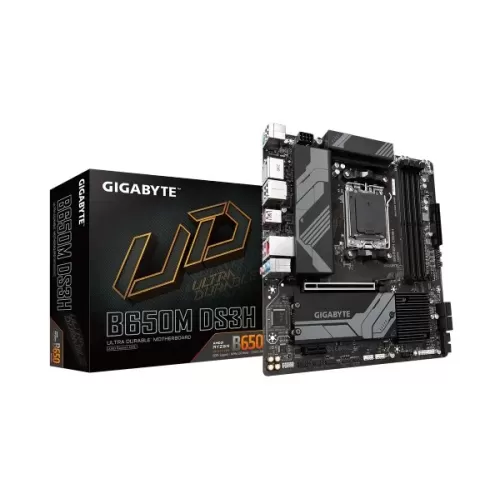

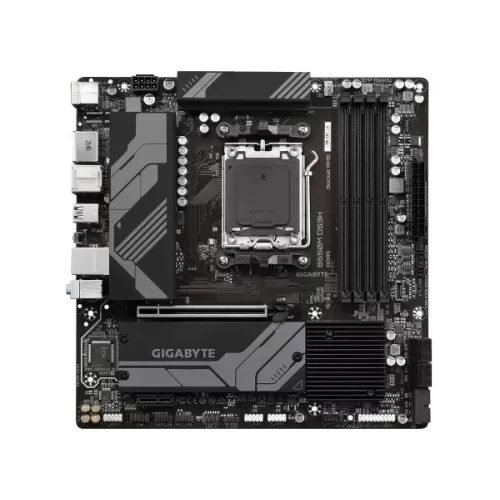

Материнская Плата Gigabyte B650M DS3H DDR5 Micro ATX AM5

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

• Realtek^®&Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB Type-C^®&header, with USB 3.2 Gen 2 support
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
15. 1 x serial port header
16. 1 x reset button
17. 1 x reset jumper
18. 1 x Clear CMOS jumper

1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x DisplayPorts
4. 1 x HDMI port
5. 1 x USB 3.2 Gen 2 Type-A port (red)
6. 1 x USB Type-C^®&port, with USB 3.2 Gen 2 support
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 2 x USB 3.2 Gen 1 ports
10. 3 x audio jacks

1. Support for DDR5 64(OC) / 62(OC) / 6(OC) / 56(OC) / 52 / 48 / MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

CPU:

1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

1. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
