| Гарантия | 3 года |
| Сервисное Обслуживание в Гарантийный Период (К Кому Обращаться) | Компьютерный сервис Компмастер 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Артикул Производителя | PRO X870-P WIFI |
| Модель | PRO X870-P WIFI |
| EAN | 4711377256339 |
| Состояние | Новое |
| Цвет | черный |
| Производитель | Msi |
| Аудио | Realtek® ALC897
7.1-Channel High Definition Audio |
|
| Беспроводня сеть | Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Внутренние Порты / Входы | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports |

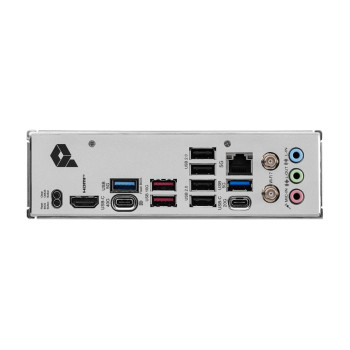

| Задние Выходы / Входы |
- Clear CMOS Button
- USB 5Gbps Type-A
- USB 2.0
- 5G LAN
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- HDMI™
- USB 40Gbps Type-C
- USB 10Gbps Type-A
- USB 20Gbps Type-C
|
| Конфигурация | ATX |
| Память | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 82 - 56 (OC) MT/s / 56 - 48 (JEDEC) MT/s
Ryzen™ 9 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 82+ MT/s
• 1DPC 2R Max speed up to 64+ MT/s
• 2DPC 1R Max speed up to 64+ MT/s
• 2DPC 2R Max speed up to 48+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
|
| Проводная Сеть | Realtek 8126VB 5G LAN |
| Размеры | 243.84mmx304.8mm |
| Совместимость для сборки ПК | Материнские Платы AMD |
| Сокет | AM5 |
| Хранение Данных | 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Чипсет | X870 |
| סוג הזיכרון | DDR5 |
| Что В Коробке? |
|
| Ссылка На Сайт Производителя | Получить полную информацию о продукте - Перейти на страницу продукта |
| Ссылка На Продукт | Материнская Плата MSI PRO X870-P WIFI DDR5 AM5 |
| Соответствующие Артикулы | ID: 64059, OC: 38858-05, AMT: 4711377256339, MPN: PRO X870-P WIFI, EAN: 4711377256339 |
