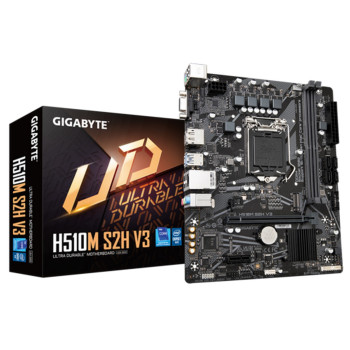

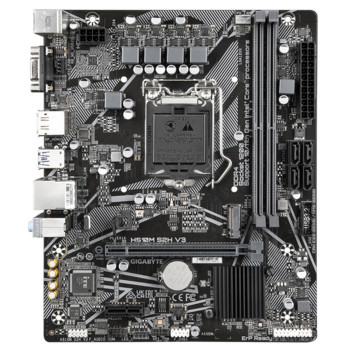

Материнская Плата Gigabyte H510M S2H V3 DDR4 Micro ATX LGA1200

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

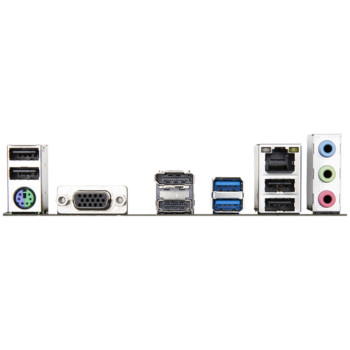

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x DisplayPort
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

1. 11th Generation Intel^®&Core™ i9/i7/i5 processors:
   Support for DDR4 32/3/2933/2666/24/2133 MHz memory modules
2. 1th Generation Intel^®&Core™ i9/i7 processors:
   Support for DDR4 2933/2666/24/2133 MHz memory modules
3. 1th Generation Intel^®&Core™ i5/i3/Pentium^®/Celeron^®&processors:
   Support for DDR4 2666/24/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

Получить полную информацию о продукте - Перейти на страницу продукта
