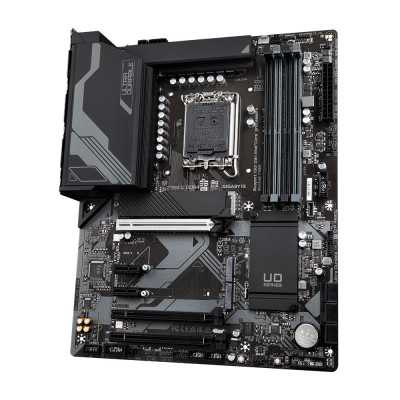

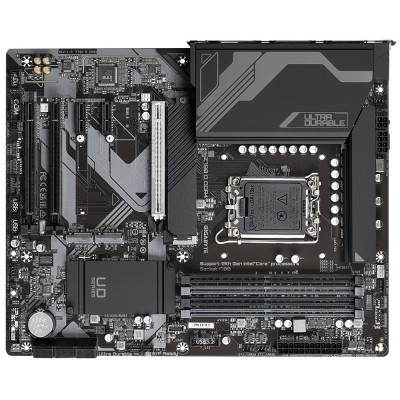

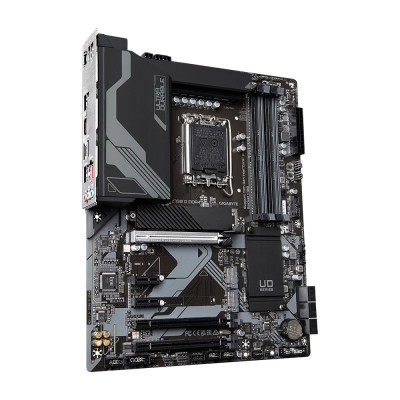

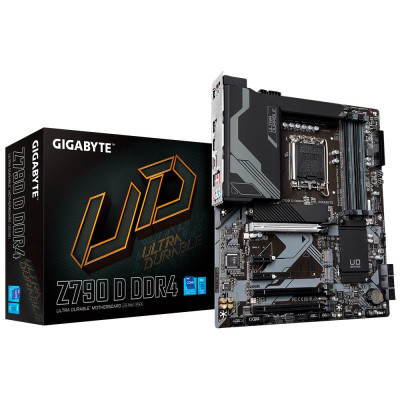

Материнская Плата Gigabyte ATX LGA1700

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x S/PDIF Out header
15. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
16. 1 x USB 3.2 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x serial port header
19. 2 x Thunderbolt™ add-in card connectors
20. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
21. 1 x reset button
22. 1 x Q-Flash Plus button
23. 1 x reset jumper
24. 1 x Clear CMOS jumper

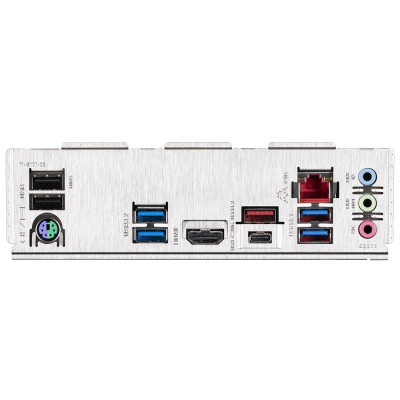

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red)
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 2.0/1.1 ports
5. 1 x HDMI 2.0 port
6. 1 x RJ-45 port
7. 3 x audio jacks

1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5(O.C.)/4933(O.C.)/48(O.C.)/ 47(O.C.)/ 46(O.C.)/ 45(O.C.)/ 44(O.C.)/ 43(O.C.)/4266(O.C.) / 4133(O.C.) / 4(O.C.) / 3866(O.C.) / 38(O.C.) / 3733(O.C.) / 3666(O.C.) / 36(O.C.) / 3466(O.C.) / 34(O.C.) / 3333(O.C.) / 33(O.C.) / 32 / 3 / 2933 / 28 / 2666 / 24 / 2133 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
2. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
