| Гарантия | 3 года |
| Сервисное Обслуживание в Гарантийный Период (К Кому Обращаться) | Компьютерный сервис Компмастер 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |

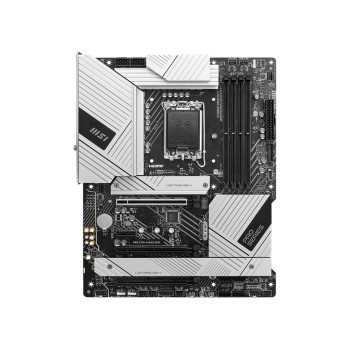

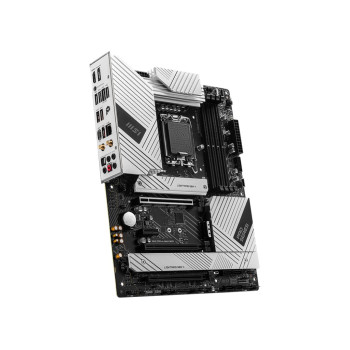

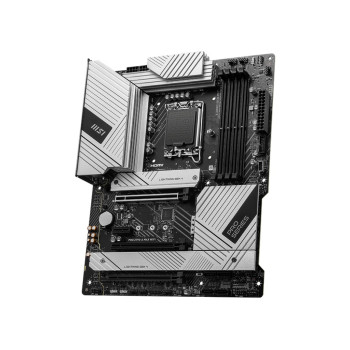

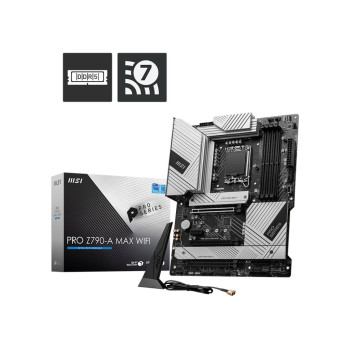

| Артикул Производителя | PRO Z790-A MAX WIFI |
| Модель | PRO Z790-A MAX |
| EAN | 4711377139939 |
| Состояние | Новое |
| Производитель | Msi |
| Amtel | . |
| Аксессуары | |
| Аудио | Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output |
| Беспроводня сеть | Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Внутренние Порты / Входы | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports |

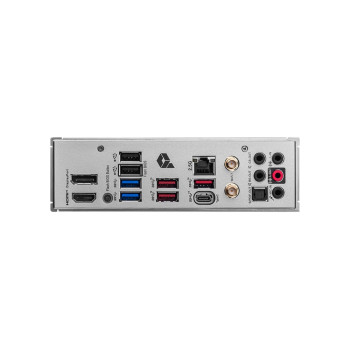

| Задние Выходы / Входы |  - DisplayPort
- USB 2.0
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- HDMI™
- Flash BIOS Button
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- S/PDIF-OUT
|
|
| Конфигурация | ATX |
| Память | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 78+(OC)/ 76(OC)/ 74(OC)/ 72(OC)/ 7(OC)/ 68(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(JEDEC)/ 54(JEDEC)/ 52(JEDEC)/ 5(JEDEC)/ 48(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 78+ MHz
• 1DPC 2R Max speed up to 66+ MHz
• 2DPC 1R Max speed up to 64+ MHz
• 2DPC 2R Max speed up to 56+ MHz
Supports Intel® XMP 3. OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
| Проводная Сеть | Intel® 2.5Gbps LAN |
| Размеры | 243.84mmx304.8mm |
| Совместимость для сборки ПК | Материнские Платы Intel |
| Сокет | LGA1700 |
| Хранение Данных | 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G |
| Чипсет | Z790 |
| סוג הזיכרון | DDR5 |
| Ссылка На Сайт Производителя | Получить полную информацию о продукте - Перейти на страницу продукта |
