| Гарантия | 3 года |
| Сервисное Обслуживание в Гарантийный Период (К Кому Обращаться) | Компьютерный сервис Компмастер 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Артикул Производителя | Z590 AORUS ULTRA |
| Модель | Z590 AORUS ULTRA |
| Состояние | Новое |
| Процессор |
- 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules - 10th Generation Intel Core i9/i7 processors
Support for DDR4 2933/2666/2400/2133 MHz memory modules - 10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
| Производитель | Gigabyte |
| Аудио |
Realtek ALC4080 codec Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Беспроводня сеть | Intel Wi-Fi 6 AX200 - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
|
| Внутренние Порты / Входы | - 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt add-in card connectors
- 1 x noise detection header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x reset button
- 1 x Clear CMOS button
- 1 x Q-Flash Plus button
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Задние Выходы / Входы | - 1 x DisplayPort
- 2 x SMA antenna connectors (2T2R)
- 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
| Интерфейс | DDR4: 4, SATA3: 6 |
| Конфигурация | ATX |
| Проводная Сеть | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Совместимость для сборки ПК | Материнские Платы Intel |
| Сокет | LGA1200 |
| Хранение Данных |
CPU: - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
* Supported by 11th Generation processors only.
Chipset: - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
- 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10 Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready |
| Частота Памяти | 5400Mhz |
| Чипсет | Z590 |
| סוג הזיכרון | DDR4 |
| Ссылка На Сайт Производителя | Получить полную информацию о продукте - Перейти на страницу продукта |

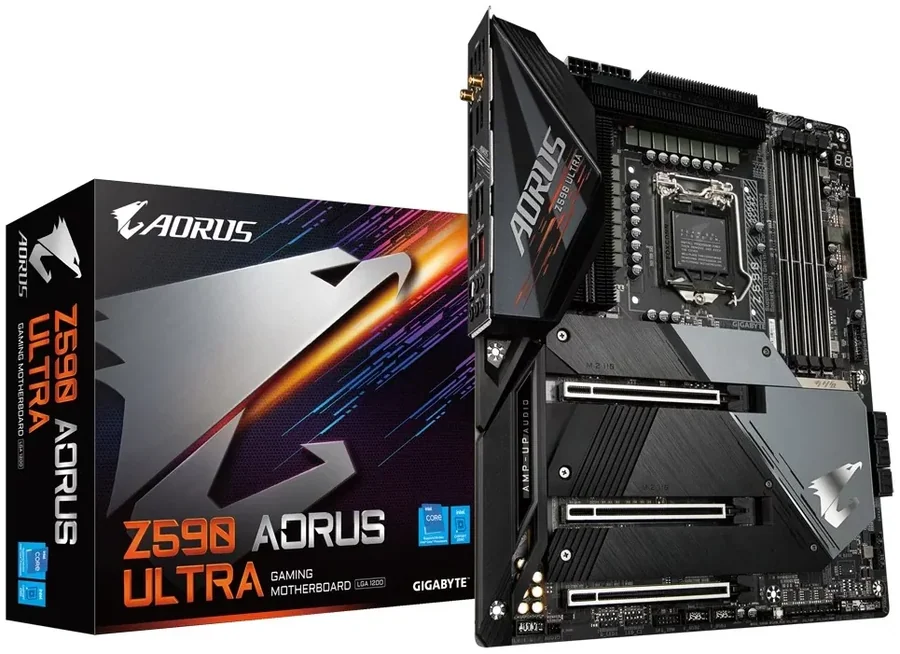

| Ссылка На Продукт | Материнская Плата Gigabyte Z590 AORUS ULTRA DDR4 ATX LGA1200 |
