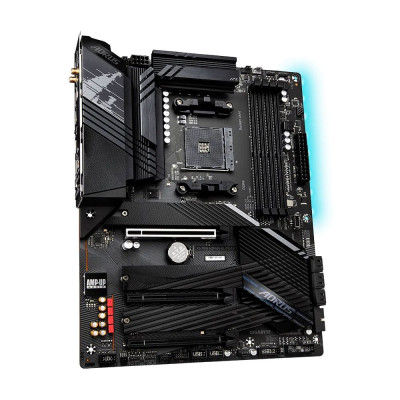

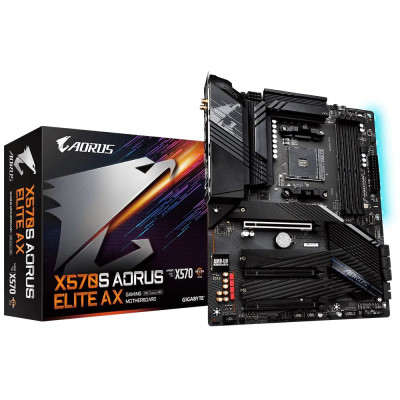

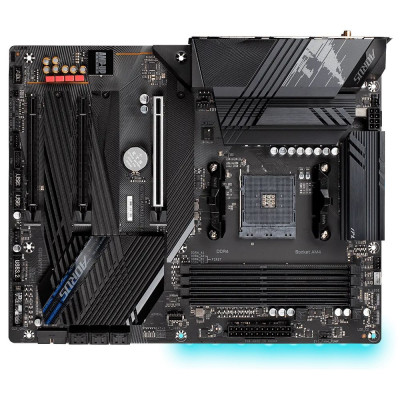

לוח אם Gigabyte X570S AORUS ELITE AX DDR4 ATX AM4

073-2241747

גיא אוני 6, אשדוד

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:

1. AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:

1. Supporting SATA and PCIe 4.0^(Note)/3.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors, integrated in the Chipset:

1. Support for RAID 0, RAID 1, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 54(O.C.) / 53(O.C.) / 52(O.C.) / 51(O.C.) / 48(O.C.) / 46(O.C.) / 44(O.C.) / 4266(O.C.) / 4133(O.C.) / 4(O.C.) / 3866(O.C.) / 3733(O.C.) / 36(O.C.) / 3466(O.C) / 34(O.C.) / 32(O.C.) / 2933 / 2667 / 24 / 2133 MHz memory modules
4. Support for ECC Un-buffered&DIMM 1Rx8/2Rx8 memory modules*
   * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 3 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^®&header, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
18. 1 x Thunderbolt™ add-in card connector
19. 1 x Clear CMOS jumper

• Realtek^®&ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

AMD Wi-Fi 6E RZ608 (MT7921K)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
