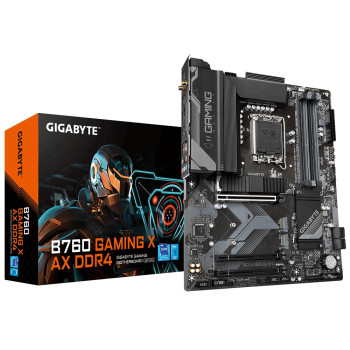

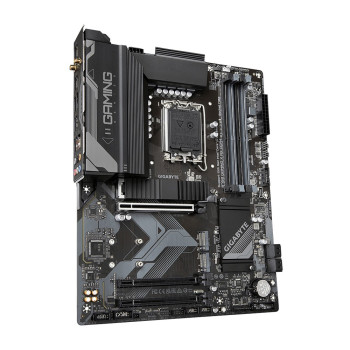

לוח אם Gigabyte B760 GAMING X AX DDR4 ATX LGA1700

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5(O.C.)/ 4933(O.C.)/ 48(O.C.)/ 47(O.C.)/ 46(O.C.)/ 45(O.C.)/ 44(O.C.)/ 43(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4(O.C.)/ 3866(O.C.)/ 38(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 36(O.C.)/ 3466(O.C.)/ 34(O.C.)/ 3333(O.C.)/ 33(O.C.)/ 32/ 3/ 2933/ 2666/ 24/ 2133 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

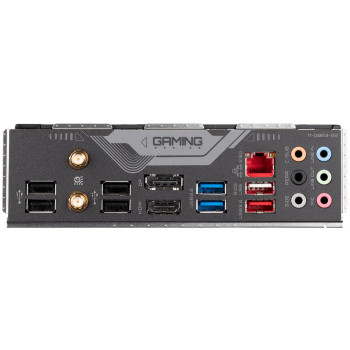

1. 1 x USB 3.2 Gen 2 Type-A port (red)
2. 2 x USB 3.2 Gen 1 ports
3. 5 x USB 2.0/1.1 ports
4. 2 x SMA antenna connectors (2T2R)
5. 1 x DisplayPort
6. 1 x HDMI port
7. 1 x RJ-45 port
8. 6 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x serial port header
19. 1 x Q-Flash Plus button
20. 1 x reset button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper
