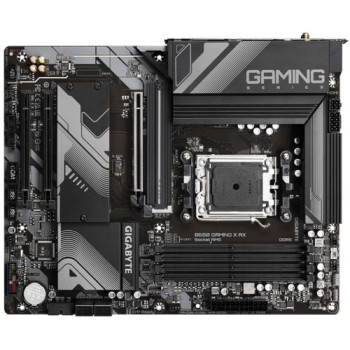

לוח אם Gigabyte B650 GAMING X AX DDR5 AM5

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1. Support for DDR5 64(OC)/62(OC)/6(OC)/56(OC)/52/48/44 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

1. 2 x SMA antenna connectors (2T2R)
2. 1 x Q-Flash Plus button
3. 1 x DisplayPort
4. 1 x HDMI port
5. 1 x USB Type-C^®&port, with USB 3.2 Gen 2 support
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 3 x USB 3.2 Gen 1 ports
8. 3 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 3 x M.2 Socket 3 connectors
12. 4 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C^®&header, with USB 3.2 Gen 2x2 support
16. 1 x USB 3.2 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x serial port header
20. 1 x reset button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel^®&Wi-Fi 6E AX210 (For PCB rev. 1.1)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
