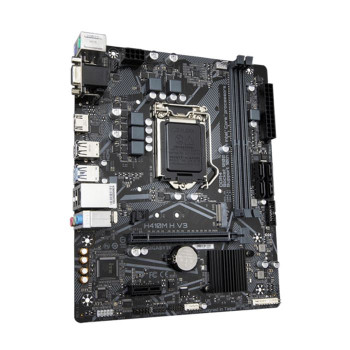

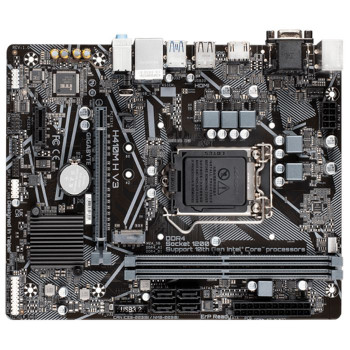

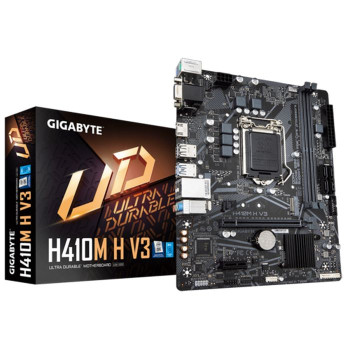

לוח אם Gigabyte H410M H V3 DDR4 Micro ATX  LGA1200

073-2241747

גיא אוני 6, אשדוד

1. Intel Core i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel Core i5/i3/Pentium/Celeron processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors

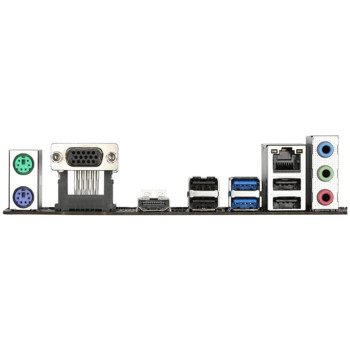

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.2 Gen 1 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x RGB LED strip header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

1. Realtek Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
