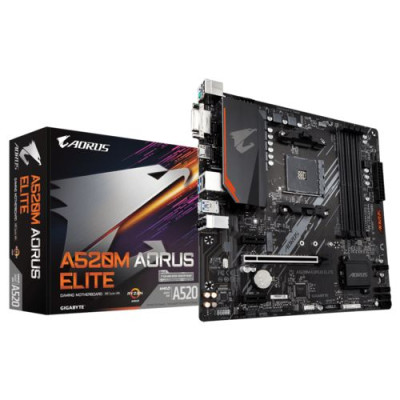

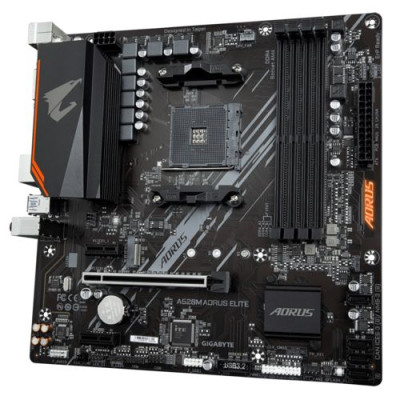

לוח אם Gigabyte A520M AORUS ELITE DDR4 AM4

073-2241747

גיא אוני 6, אשדוד

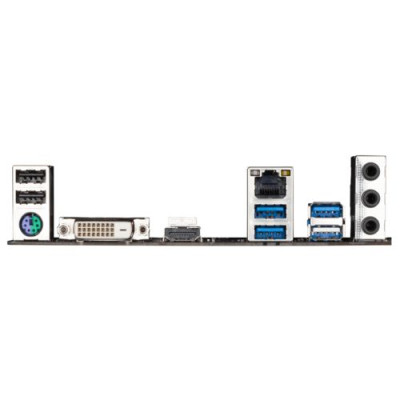

1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 2 x addressable LED strip headers
6. 2 x RGB LED strip headers
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 1 x USB 2.0/1.1 header
13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14. 1 x serial port header
15. 1 x Clear CMOS jumper
16. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

1. Realtek Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
