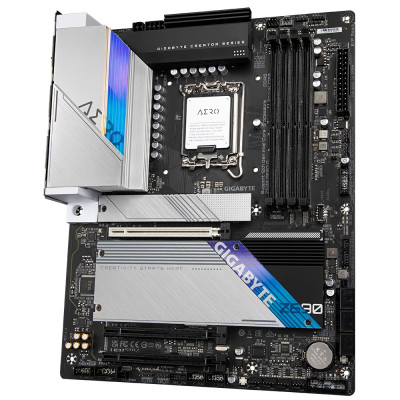

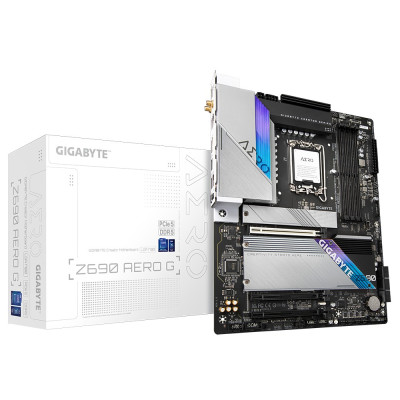

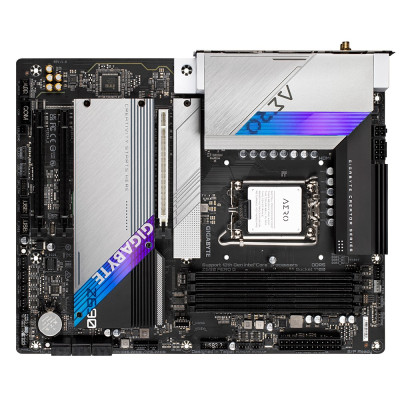

לוח אם Gigabyte Z690 AERO G DDR5 LGA1700

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane Memory Ready

* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

1. Support for DDR5 6(O.C.) / 58(O.C.) / 56(O.C.) / 54(O.C.) / 52(O.C.) / 48 / 4 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

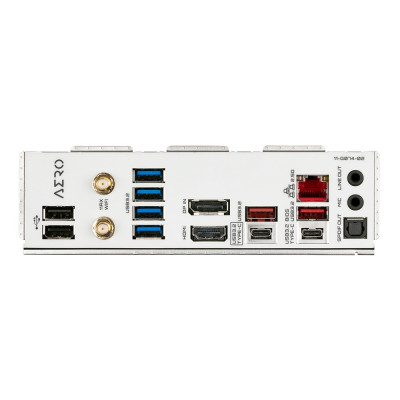

1. 2 x USB 2.0/1.1 ports
2. 2 x SMA antenna connectors (2T2R)
3. 4 x USB 3.2 Gen 1 ports
4. 1 x DisplayPort In port
5. 1 x HDMI port
6. 2 x USB 3.2 Gen 2 Type-A ports (red)
7. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
8. 1 x USB Type-C port, with USB 3.2 Gen 1 support
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 2 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 2 x Thunderbolt add-in card connectors
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
20. 1 x serial port header
21. 1 x Q-Flash Plus button
22. 1 x reset button
23. 1 x reset jumper
24. 2 x temperature sensor headers
25. 1 x Clear CMOS jumper

1. Realtek ALC4080 CODEC
2. High Definition Audio
3. 2-channel analog output
4. Support for S/PDIF Out

Intel Wi-Fi 6 AX201

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
