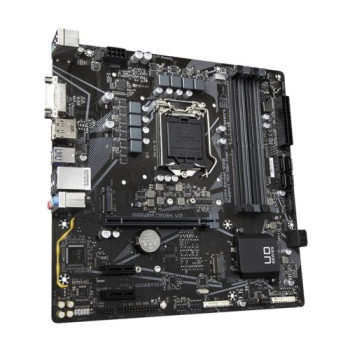

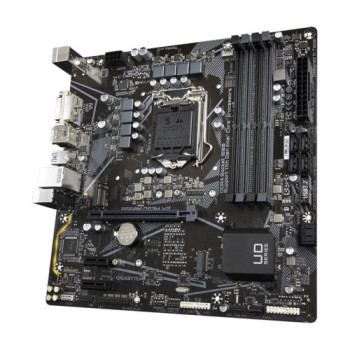

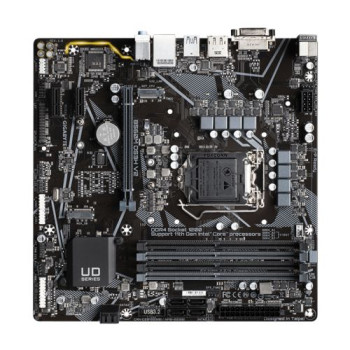

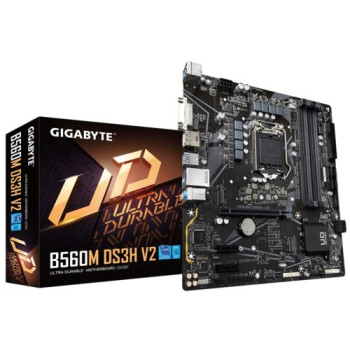

לוח אם Gigabyte B560M DS3H V2 DDR4 LGA1200

073-2241747

גיא אוני 6, אשדוד

1. 11th Generation Intel Core i9/i7/i5 processors:
   Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5(O.C.) / 4933(O.C.) / 48(O.C.) / 47(O.C.) / 46(O.C.) / 45(O.C.) / 44(O.C.) / 43(O.C.) / 4266(O.C.) / 4133(O.C.) / 4(O.C.) / 3866(O.C.) / 38(O.C.) / 3733(O.C.) / 3666(O.C.) / 36(O.C.) / 3466(O.C.) / 34(O.C.) / 3333(O.C.) / 33(O.C.) / 32 / 3 / 2933 / 28 / 2666 / 24 / 2133 MHz
2. 1th Generation Intel Core i9/i7 processors:
   Support for DDR4 2933/2666/24/2133 MHz memory modules
3. 1th Generation Intel Core i5/i3/Pentium/Celeron processors:
   Support for DDR4 2666/24/2133 MHz memory modules
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

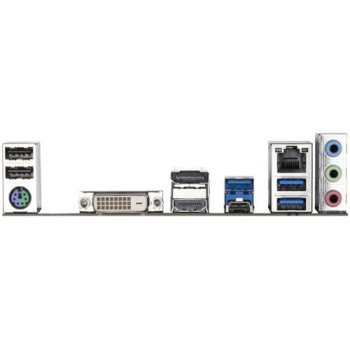

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x DVI-D port
4. 1 x DisplayPort
5. 1 x HDMI port
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C port, with USB 3.2 Gen 1 support
8. 1 x RJ-45 port
9. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 6 x SATA 6Gb/s connectors
8. 2 x M.2 Socket 3 connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Clear CMOS jumper
17. 1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
