| אחריות | 3 שנים |
| שירות בתקופת האחריות (למי פונים) | מעבדת קומפ מאסטר 073-2241747 גיא אוני 6, אשדוד |
| דגם | B760 GAMING X AX DDR4 |
| מק''ט היצרן | B760 GAMING X AX DDR4 |
| מצב | חדש |
| יצרן | Gigabyte |
| אחסון | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| זיכרון | - Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5(O.C.)/ 4933(O.C.)/ 48(O.C.)/ 47(O.C.)/ 46(O.C.)/ 45(O.C.)/ 44(O.C.)/ 43(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4(O.C.)/ 3866(O.C.)/ 38(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 36(O.C.)/ 3466(O.C.)/ 34(O.C.)/ 3333(O.C.)/ 33(O.C.)/ 32/ 3/ 2933/ 2666/ 24/ 2133 MT/s memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|

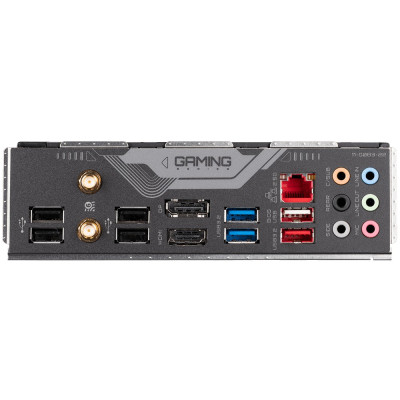

| יציאות/כניסות אחוריות | - 1 x USB 3.2 Gen 2 Type-A port (red)
- 2 x USB 3.2 Gen 1 ports
- 5 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x RJ-45 port
- 6 x audio jacks
|
| יציאות/כניסות פנימיות | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C®&header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
|
| סוג הזיכרון | DDR4 |
| ערכת שבבים | B760 |
| שמע | - Realtek®&Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
| תאימות להרכבת מחשב | לוחות אם למעבדי Intel |
| תושבת | LGA1700 |
| תצורה | ATX |
| תקשורת אלחוטית | AMD Wi-Fi 6E RZ608 (MT7921K) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.) |
| תקשורת קווית | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| קישור לאתר היצרן | לקבל מידע מלא על מוצר - מעבר לעמוד המוצר |
| קישור למוצר | לוח אם Gigabyte B760 GAMING X AX DDR4 ATX LGA1700 |
