| Обзор | Extreme Power Design
To unleash the full potential of the new Intel 10-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z490 AORUS XTREME is a true beast among motherboards. | | | THERMAL REACTIVE ARMOR
Z490 AORUS XTREME uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming. | Unparalleled Performance
Hungry for better performance? Z490 AORUS XTREME has a full PCIe 4.0 hardware design, supports high frequency memory, and comes with full SSD thermal guards to make sure you get the maximum full system performance. | | | XTREME MEMORY
Z490 AORUS XTREME uses revolutionary "XTREME MEMORY" technology, which includes Shielded Memory Routing, SMT DIMM, and Tantalum Polymer Capacitors Array to minimize all noise and electrical interference and reach the highest memory clock. | Next Generation Connectivity
A Flagship product needs to be future-proofed so your system stays up-to-date with the latest technology. Z490 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed. | | | Hi-Fi Audio
Still think motherboard audio is just “basic sound output”? We put a 100% full Hi-Fi sound card and all audio-grade components into the Z490 AORUS XTREME to ensure the best, crystal clear sound quality. Furthermore, an exclusive bundled ESSential USB DAC means users not longer have to endure bad audio quality from ancient Front Audio interfaces. | Definitive Aesthetics
GIGABYTE ID team designs Z490 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details, and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty. | | | Ultra Durable
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS XTREME and reinforce every slot to make each of them solid and durable. |
|
| Гарантия | 3 года |
| Сервисное Обслуживание в Гарантийный Период (К Кому Обращаться) | Компьютерный сервис Компмастер 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Артикул Производителя | Z490 AORUS XTREME |
| Модель | Z490 AORUS XTREME |
| Состояние | Новое |
| Производитель | Gigabyte |
| 1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory | - Intel Core i9/i7 processors:
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz - Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
| Аудио | - Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio)
- Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio)
- Support for DTS:X Ultra
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
| Беспроводня сеть | Intel Wi-Fi 6 AX201 - WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
|
| Внутренние Порты / Входы | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x noise detection header 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 2 x temperature sensor headers 1 x power button 1 x reset button 1 x OC button 2 x BIOS switches Voltage Measurement Points |

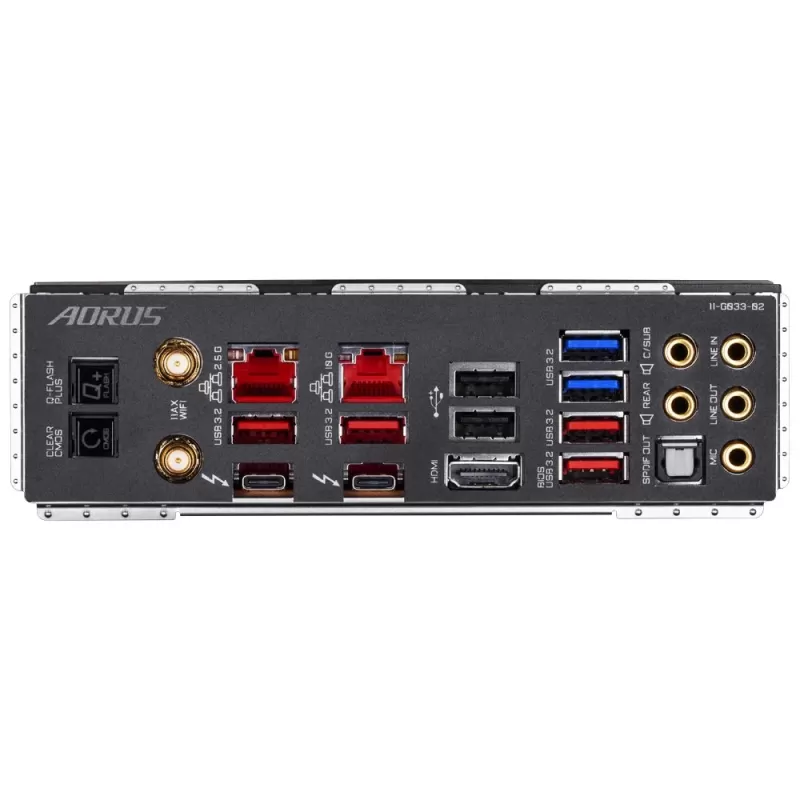

| Задние Выходы / Входы | - 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 2 x SMA antenna connectors (2T2R)
- 2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support)
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 2 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x HDMI port
- 2 x RJ-45 ports
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
| Конфигурация | E-ATX |
| Проводная Сеть | - 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
- 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
|
| Совместимость для сборки ПК | Материнские Платы Intel |
| Сокет | LGA1200 |
| Тип Памяти | DDR4 DIMM |
| Хранение Данных | - 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_PCH)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols. |
| Частота Памяти | 5000MHz |
| Чипсет | Z490 |
| Ссылка На Сайт Производителя | Получить полную информацию о продукте - Перейти на страницу продукта |

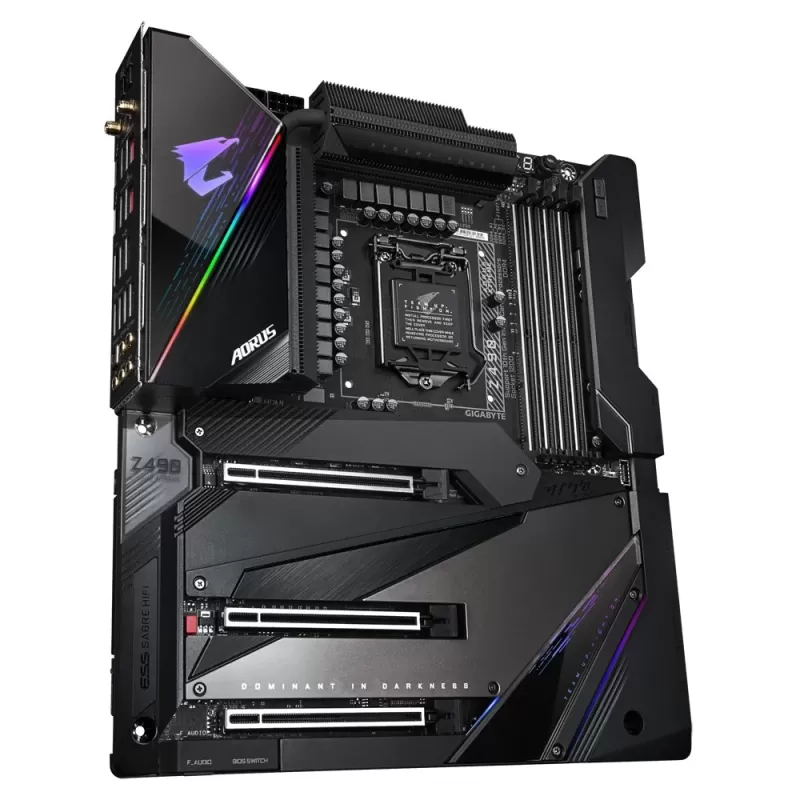

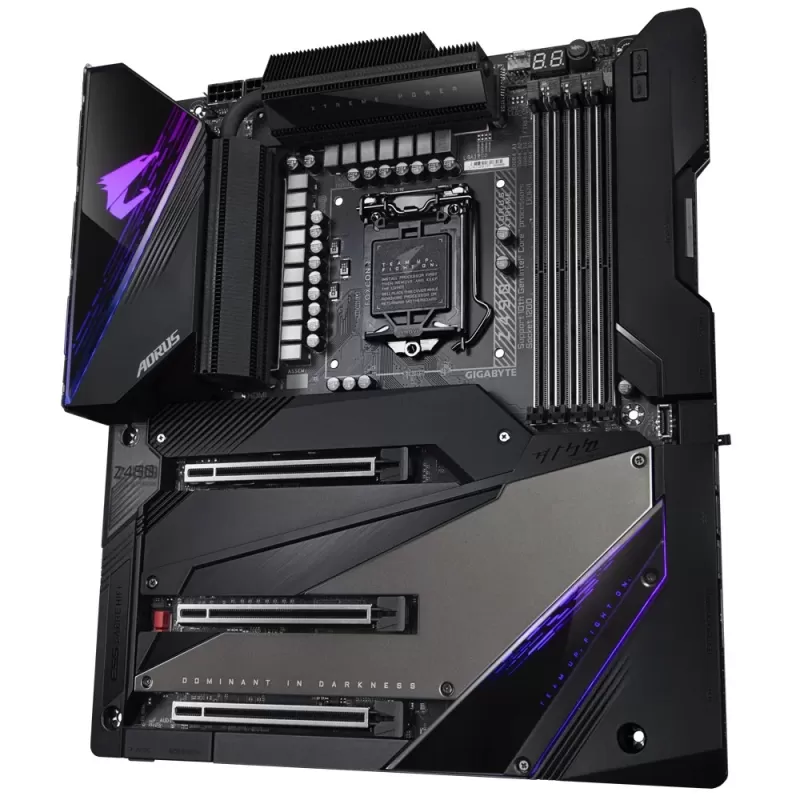

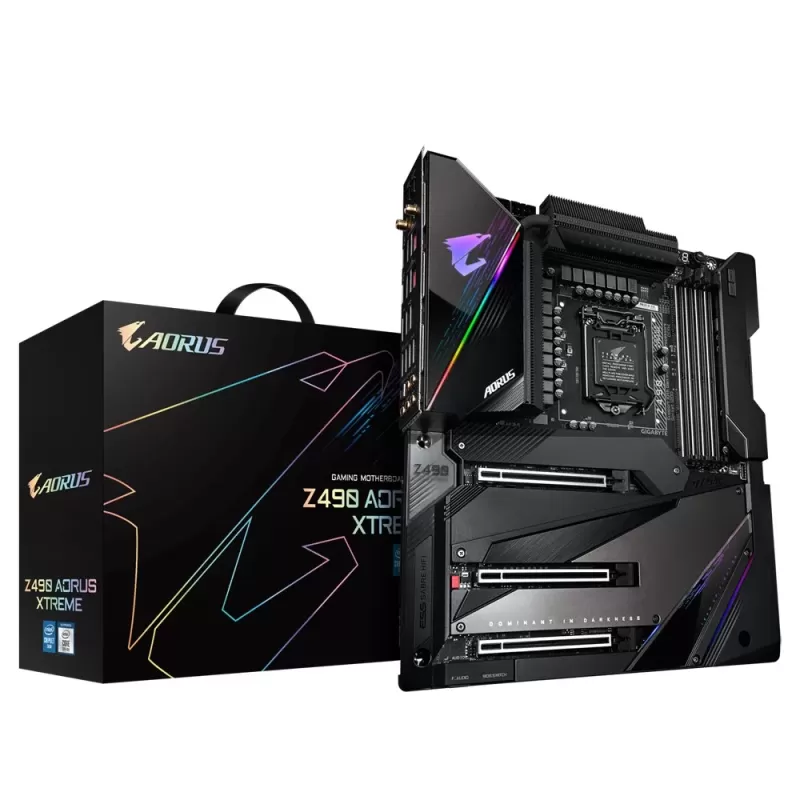

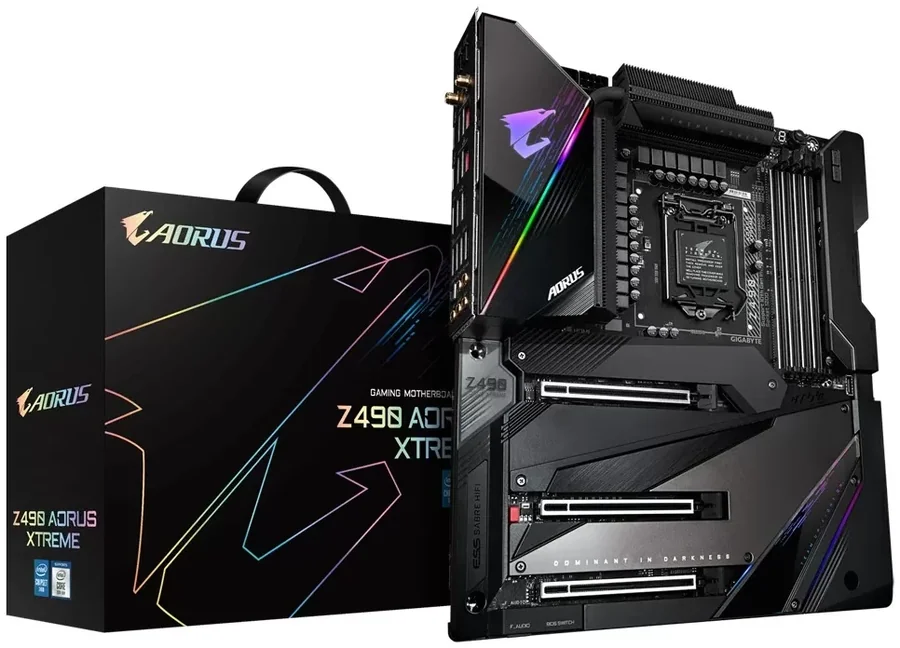

| Ссылка На Продукт | Материнская Плата Gigabyte Z490 AORUS XTREME DDR4 DIMM LGA1200 |
| Соответствующие Артикулы | ID:~43100~, NEW, OC: 23448, CD: GZ490AORUSXT, MPN: Z490 AORUS XTREME |
