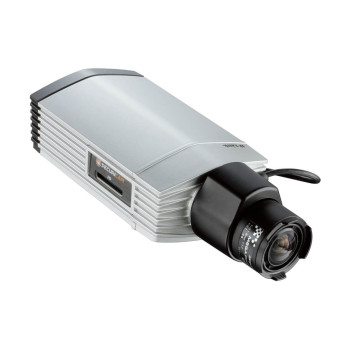

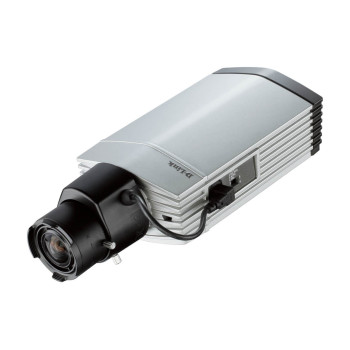

Айпи камера D-Link DCS-3716EOL EOS DCS-3716

Camera Hardware Profile
• Sony Exmor 1/2.8” 3 Megapixel progressive CMOS sensor
• Minimum Illumination: 0.5 lux (Color); 0.05 lux (B/W)
• Built-in Infrared-Cut Removable (ICR) Filter module
• WDR SN ratio : 100 dB
• 10X digital zoom
• DC iris Varifocal length: 3.1 mm to 8.0 mm
• Aperture: F1.2
• Angle of view:
(H) 38.7° to 95.9°
(V) 29.1° to 71.0°
(D) 48.3° to 123.1°

Image Features
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• 3 Configurable privacy masks zone
• Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression
• Simultaneous H.264/MPEG-4/MJPEG format compression
• JPEG for still images

Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144
• 4:3 - 2048 x 1536, 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144
• 3M (2048x1536) resolution up to 15 fps, and other resolutions support frame rates up to 30 fps

Audio Support
G.726

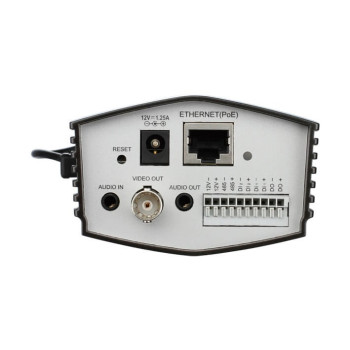

External Device Interfaces
• 2 DI / 1 DO
• 12 V DC, 200 mA Output
• RS-485
• SD card slot
• Audio input / output
• Video output

Network Protocols
IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, IGMP, ONVIF compliant

Security
• Administrator and user group protection
• Password authentication

Event Management
• Motion detection
• Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
• Supports multiple HTTP, SMTP, and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup

Remote Management
• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support
• Windows, Pocket PC, or mobile phone with 3GPP playback support
• D-ViewCam™

D-ViewCam™ Software Functions
• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions provided in web interface
• Scheduled motion triggered, or manual recording options
