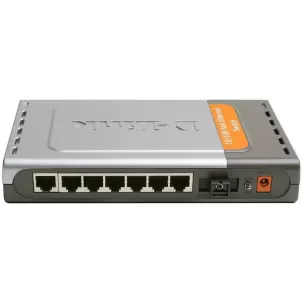

Коммутатор D-Link DES-1008FR/PROEOL EOS DES-1008FR-PRO

Device:
- supports 1K MAC addresses
- Supports 64KBytes RAM for data buffering
- Extensive front-panel diagnostic LEDs
- Switching Capacity: 1.6Gbps
- Store-and-Forward switching method
- RoHS Compliant.

Number of Ports
- 7-Port 10/100Base-T
- 1-Port 100Base-FX Single-Mode 15KM Fiber

7-Port 10/100Base-T:
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- Support Auto-Negotiation for copper ports
- Support Half/Full-Duplex operations at 10/100Mbps.
- Support back pressure at Half-Duplex operation
- IEEE 802.3x Flow Control support.
- Auto MDI/MDI-X
- Wire speed reception and transmission

1-Port 100Base-FX:
- IEEE 802.3u 100BASE-FX
- Support DIP switch to change the mode between half duplex and full duplex.

Dimension
192.5 x 118.5 x 32 mm
(7.5 x 4.5 x 1.25 inches)

Port packet Filtering/Forwarding Rate
14,880 pps for 10M
148,800 pps for 100M
