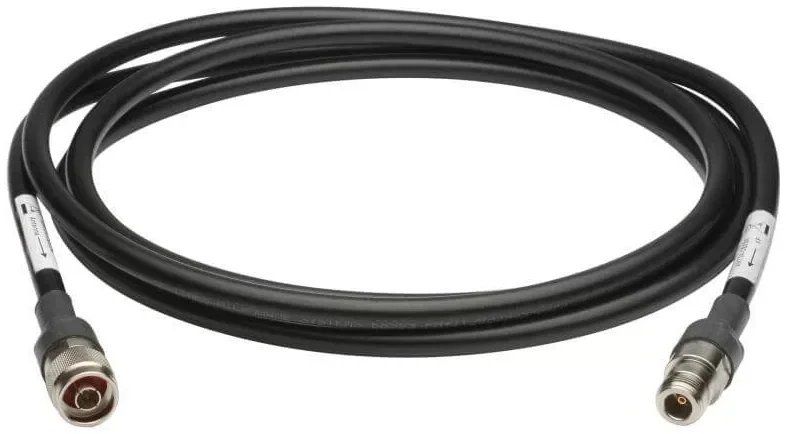

אנטנות D-Link Antenna 3M ANT24-CB03N

Cable type
• LMR-400

Connectors
• N Plug & N Jack

Operating frequency range
• 2.4 GHz - 2.5 GHz
• 4.9 GHz - 5.75 GHz

Impedance
• 50 Ohms

Insertion loss
• 0.6 dB - 0.75 dB @ 2.4 GHz - 2.5 GHz
• 1.06 dB - 1.25 dB @ 4.9 GHz - 5.75 GHz

VSWR
• 1.3:1 @ 2.4 GHz - 2.5 GHz
• 1.3:1 @ 4.9 GHz - 5.75 GHz

Cable jacket
• Black polyethylene

Physical Parameters
Cable length
• 3 m

Minimum bend radius
• 10.29 mm

Environmental Conditions
Environment
• Outdoor / Indoor

Weatherproof
• Yes

Operating temperature
• -40° to 85°C

A lot of wireless devices, such as access points and routers, are equipped with detachable external antennas. To extend the wireless network coverage you can replace them with the antennas that have higher gain. The 3 m length ANT24CB03N cable allows you to install an antenna connected to a wireless device in convenient place without reducing of signal strength and data transmission quality. This extension cable is suitable both for outdoor and indoor use. Wide range of operating temperatures (-40 to 85 °C) allows you to use the extension cable in harsh environmental conditions.
