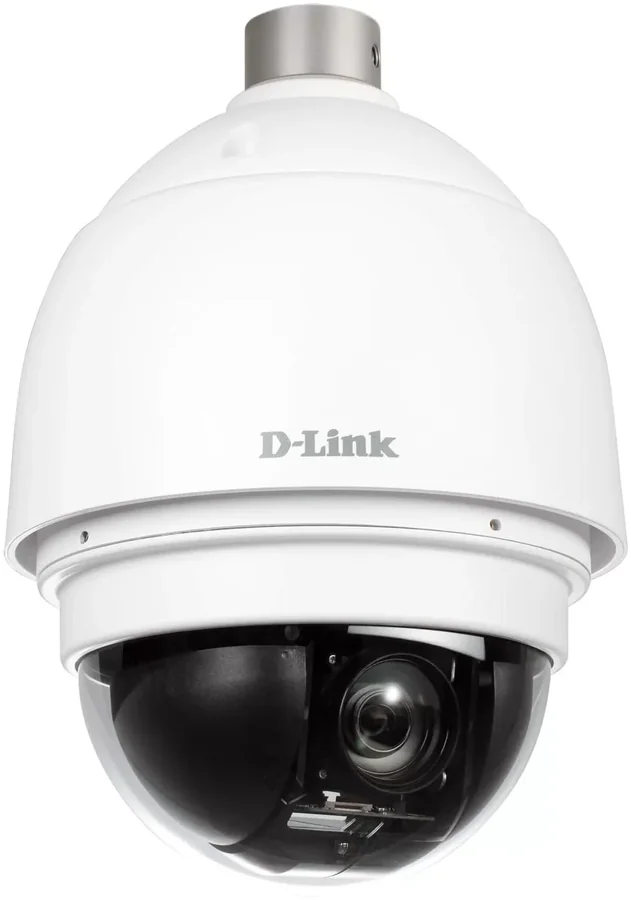

מצלמת IP D-Link DCS-6915EOL EOS DCS-6915

Camera Hardware Profile
• Sony Exmor 1/2.8" progressive 3 Megapixel CMOS sensor
• Minimum illumination 0.1 lux (Color); 0.01 Lux (B/W)
•Built-in Infrared-Cut Removable (ICR) Filter
• S/N ratio > 50 dB (AGC off)
• Electronic shutter 1/1 to 1/10,000 sec.
• Variable 20x optical zoom, 8x digital zoom
• Focal length 4.7 to 96 mm
• Angle of View
(D) 64.42° to 4.65°
(H) 52.27° to 4.07°
(V) 33.4° to 2.33°

PTZ Hardware Profile
• Pan travel: 360° endless
• Tilt Travel: -10° to 190°
• Presets: 256 points
• Preset Accuracy: ± 0.225°
• Preset Speed: 5° to 400°/s
• Sequence Paths: 8
• Auto Pan Paths: 4
• Cruise Paths: 8
• Pan and tilt speed proportional to zoom ratio
• Resume after power loss
• Home Function: Preset, Sequence, Auto pan, Cruise
• Auto Flip: Mechanical/Digital/Off
• Digital Slow Shutter
• Image Freeze
• Image Inverse

Image Features
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• 16 configurable privacy masks
• Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression
• Simultaneous H.264/MJPEG format compression
• H.264 multicast streaming
• JPEG for still images

Video Resolution
• 1920 x 1080 (1080P)
• 1280 x 720 (720P)
• 640 x 480 (VGA)
• 800 x 600 (SVGA)
• 1024 x 768 (XGA)
• 1280 x 1024 (SXGA)
• 640 x 480 (VGA)
• 320 x 240 (CIF)

Audio Support
• G.726
• G.711

External Device Interfaces
• 4 alarm inputs
• 2 alarm outputs
• Audio input/output

Network Protocols
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP
• PPPoE
• UPnP Port Forwarding
• RTP/RTSP/RTCP
• IP filtering
• IGMP
• IEEE802.1x
• QoS
• SNMP
• ONVIF Compliant

Security
• Administrator and user group protection
• Password authentication

Event Management
• Motion detection
• Tamper detection
• Event notification and upload snapshots/video clips via SMTP or FTP
• Multiple event notification
• Multiple recording methods for easy backup
• Supports multiple HTTP, SMTP and FTP servers

Remote Management
• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive

D-ViewCam™ Software Functions
• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions provided in web interface
• Scheduled motion triggered, or manual recording options
