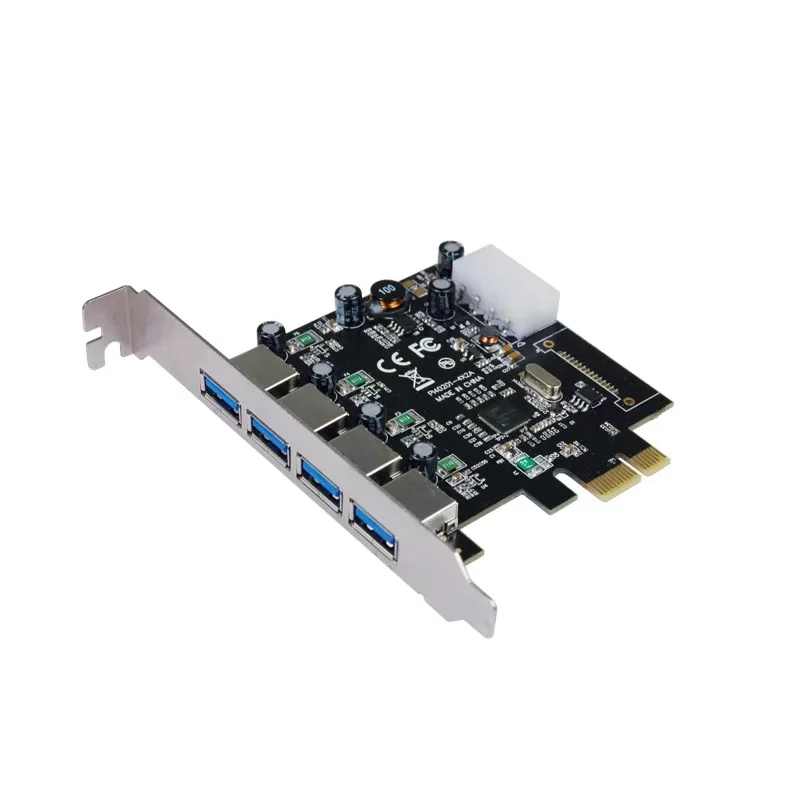

כרטיס הרחבה St-Lab 4 Ports PCIe USB3.0 ST-U-1270

כרטיס הרחבה למחשב PCIe עם 4 חיבורי USB 3.0 מאפשר הרחבה נוחה ומהירה של יציאות USB במחשב.
הוא תומך במהירות העברת נתונים של עד 5Gbps ומתאים למגוון רחב של התקנים כמו אחסון חיצוני, מצלמות
ומוצרי USB נוספים. הכרטיס תומך בחיבור חם ללא צורך בכיבוי המערכת ומספק עבודה יציבה.

ST-LAB PCIe USB3.0 – 4Port Card

Super-Speed USB3.0 interface is the next revolution in I/O interconnect standards that will deliver
the bandwidth and features required by PCs, consumer electronics and communications devices.

With 10 times faster throughput than USB2.0 standard and backward compatible with current USB
device features, USB3.0 interface will be the trendy of IT technology.

This board is a 4 port Super-Speed USB3.0 PCI Express card.

It is compliant with the PCI Express Generation 2 specification for host PC system.

It works up to 5 Gbps for data transfer when connecting to USB3.0 compliant peripherals, while
maintaining compatibility with existing USB peripheral devices.

This board supports USB3.0 High-Speed device and backward compatible with current USB2.0
High-Speed and USB1.1 Full-Speed device.

It is an ideal choice for external storage devices, MP3 players, external DVD Writer, Card Readers,
digital cameras, webcams, networking, video devices, and all other USB devices.

Features

• Fully compliant with PCI Express Base Specification Revision 2.0
• Support USB Battery Charging Specification Revision 1.2
• Single-lane (x1) PCI Express throughput rates up to 5 Gbps
• Compliant with Universal Serial Bus3.0 specification Revision 1.0
• Supports simultaneous operation of multiple USB3.0, USB2.0 and USB1.1 devices
• Supports the following speed data rates as follows:
• Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
• Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Supports 4 downstream ports for all speeds
• Built-in 4-pin power connector for receiving extra power supply from system
• Supports USB Battery Charging Specification Revision 1.2
• Hot-swapping feature allows you to connect/disconnect devices without powering down the system
• Color: Silver

System Requirements

• Windows XP/Vista/7/8/8.1/10 (32/64 bit); Linux 2.6.31 or later
• One available PCI Express slot (Recommend PCI Express 2.0)

Package

• 1 x USB 3.0 4-Port PCI Express Card
• 1 x Driver CD
• 1 x User Manual
