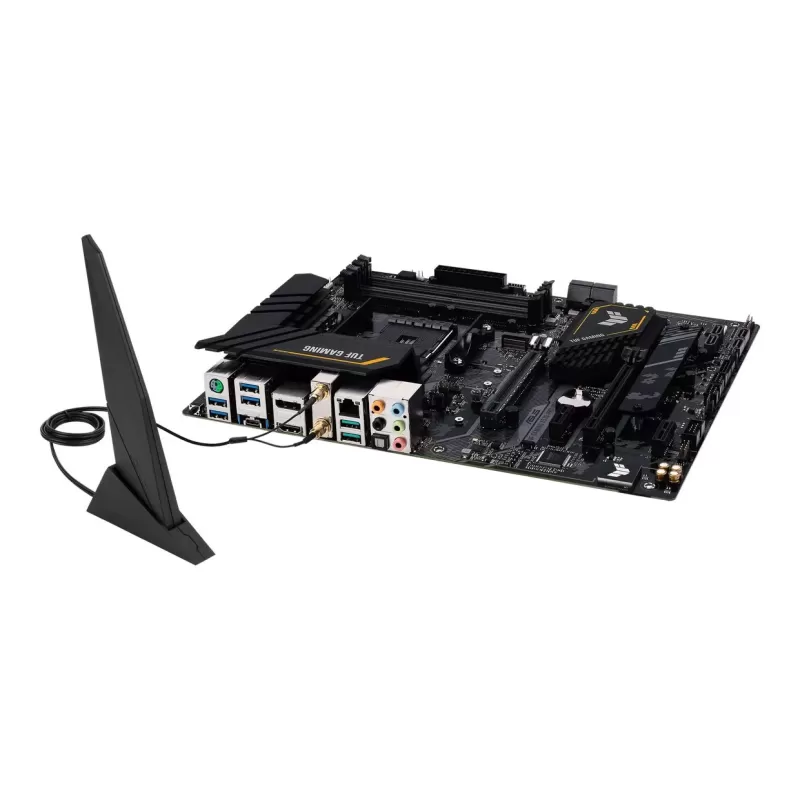

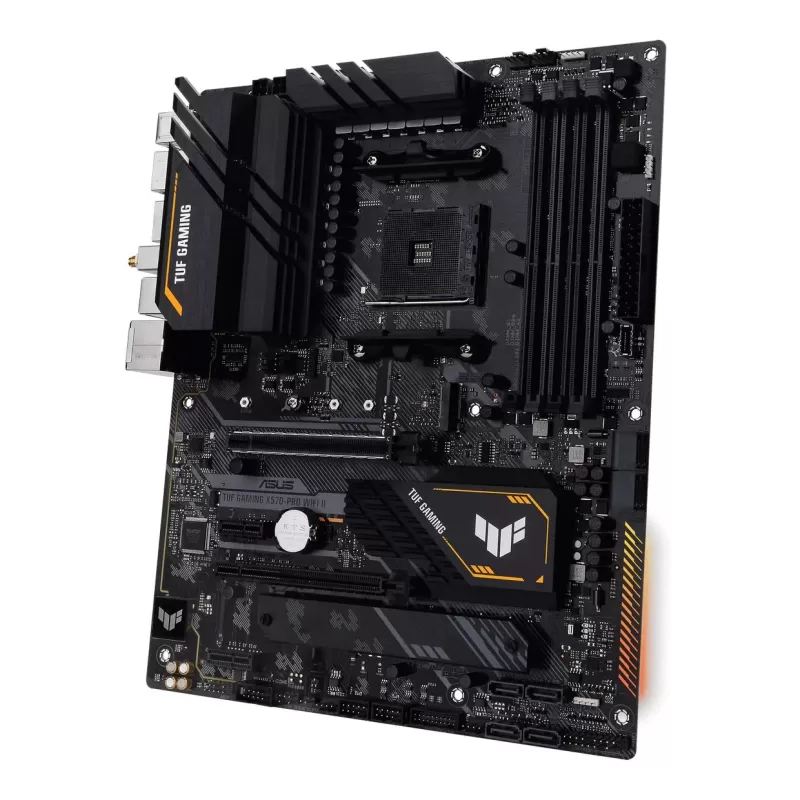

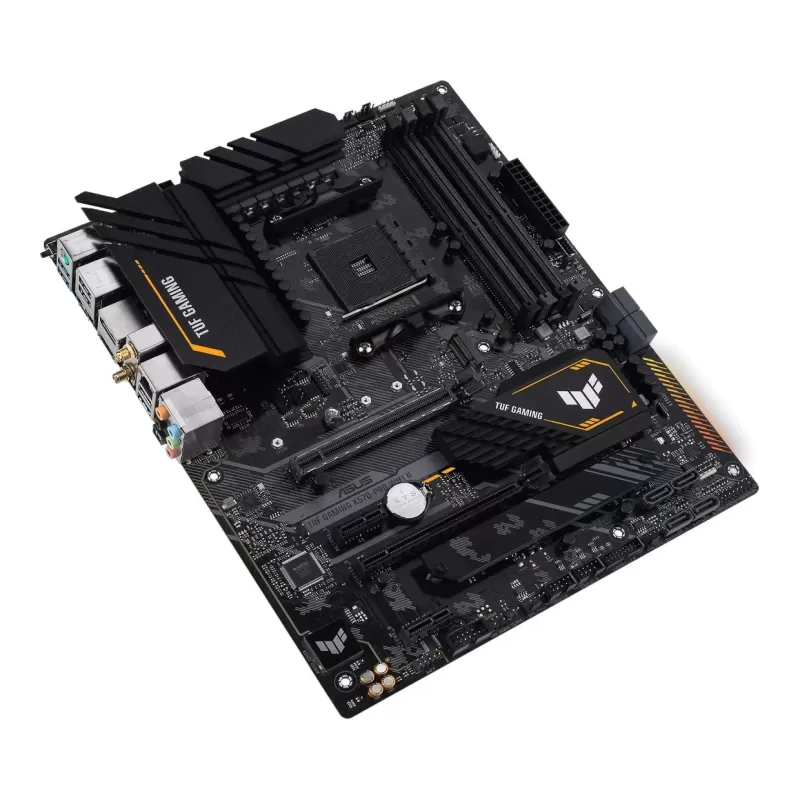

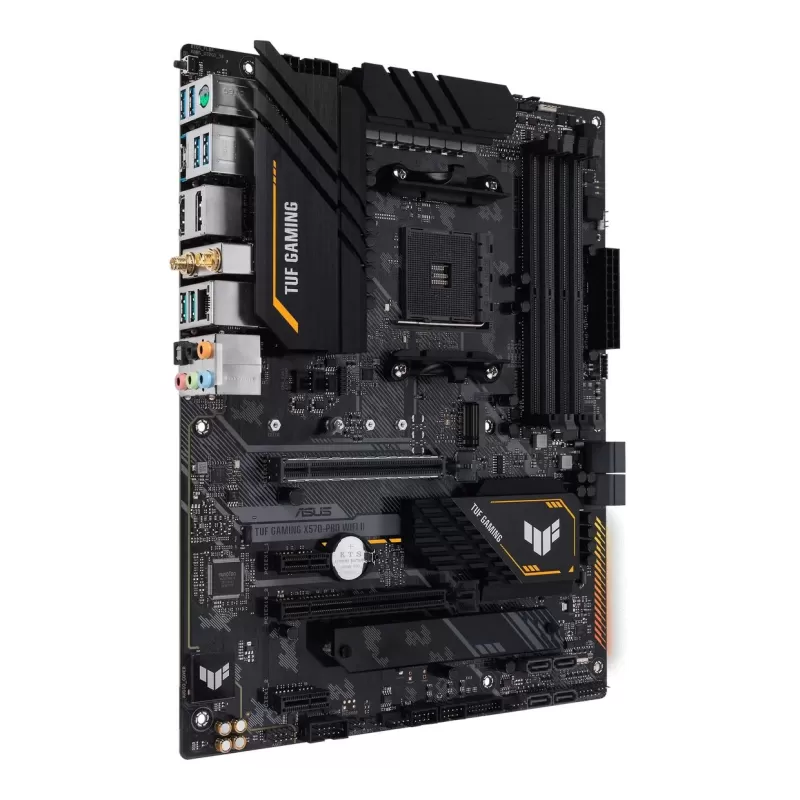

לוח אם Asus TUF GAMING X570-PRO WIFI II DDR4 DIMM AM4

073-2241747

גיא אוני 6, אשדוד

Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD X570 chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

8 x SATA 6Gb/s ports

Support Raid 0, 1, 10

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD X570 chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

8 x SATA 6Gb/s ports

Support Raid 0, 1, 10

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MT/s Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* The maximum memory capacity supported vary depending on the CPU you installed.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 Un-buffered Memory

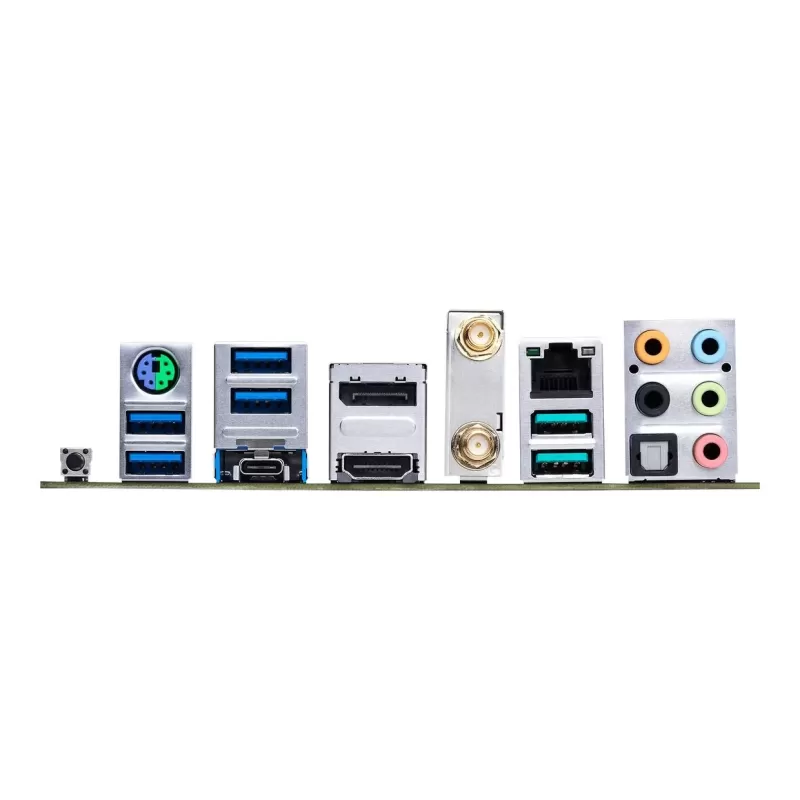

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 Front Panel connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

20-5 pin System Panel header

ALC887/897

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

1 x Intel® 2.5Gb Ethernet
TUF LANGuard
