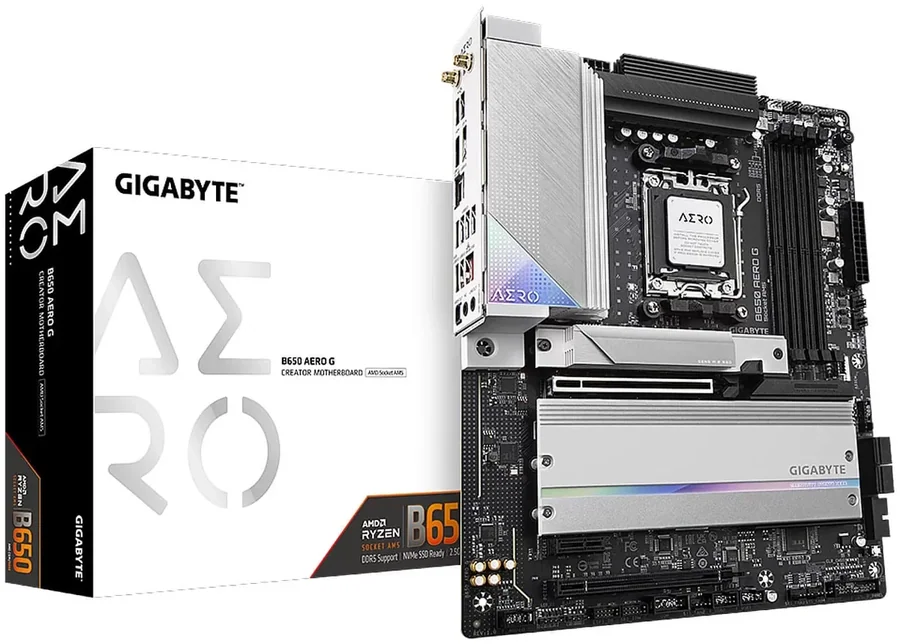

לוח אם Gigabyte B650 AERO G DDR5 DIMM AM5

• AMD Socket AM5: Supports AMD Ryzen™ 7000 Series Processors
• VisionLINK: One USB-C ® Port for Video, Data Transfer and Charging
• Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel ® XMP Memory Module Support
• Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
• EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
• Fast Networks: Intel ® 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: DP IN, HDMI, Front USB-C ® 20Gbps Support and Upcoming GIGABYTE USB4 AIC Support
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

AERO SERIES

AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.

Simplify Your Connections

Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C ® cable.

Connectivity

AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.

DDR5 Faster Instant Reaction Speed

Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.

PCIe 5.0 Design. The Fastest, Most Robust Level.

Equipped with the PCIe 4.0 x16 slot and PCIe 5.0 M.2 socket designed to optimize multitasking and large workloads, that is also ready for a new PCIe 5.0 graphics card or storage devices.

PCIe 5.0 M.2 Storage. Fast Speed. More Space.

Equipped with a full-speed PCIe 5.0 M.2 slot. A total of three onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.

PCIe x4 M.2. Creates Exclusive Storage Performance

All PCIe x4 M.2 slots offer up to Type 25110 and NVMe SSD RAID support for optimal enhancement.

Aesthetic Cooling Design

GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
   * Actual support may vary by CPU.
2. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 4 x SATA 6Gb/s connectors

1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

1. Realtek^®&ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out
