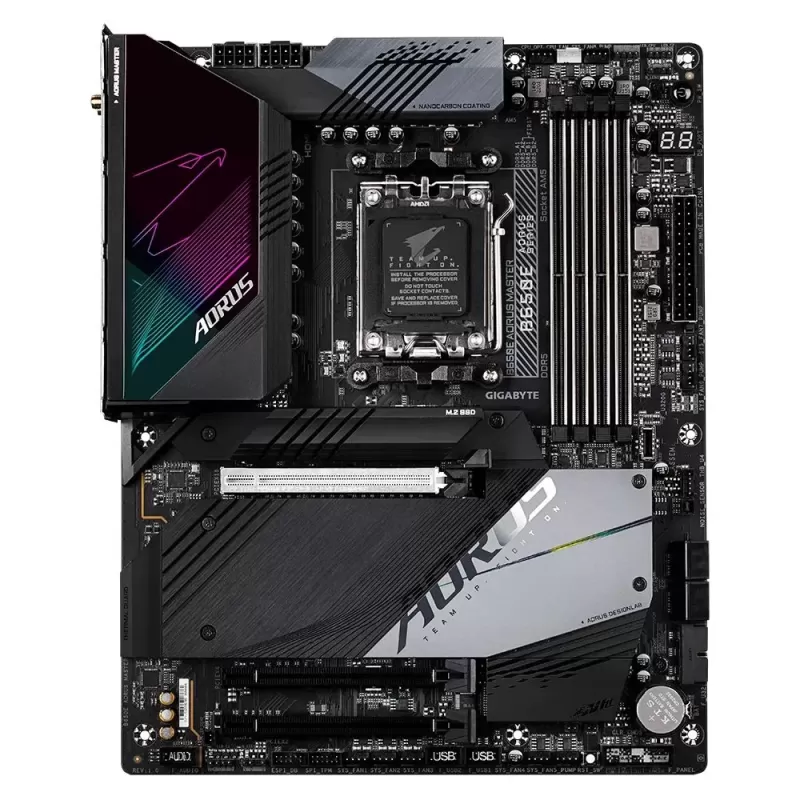

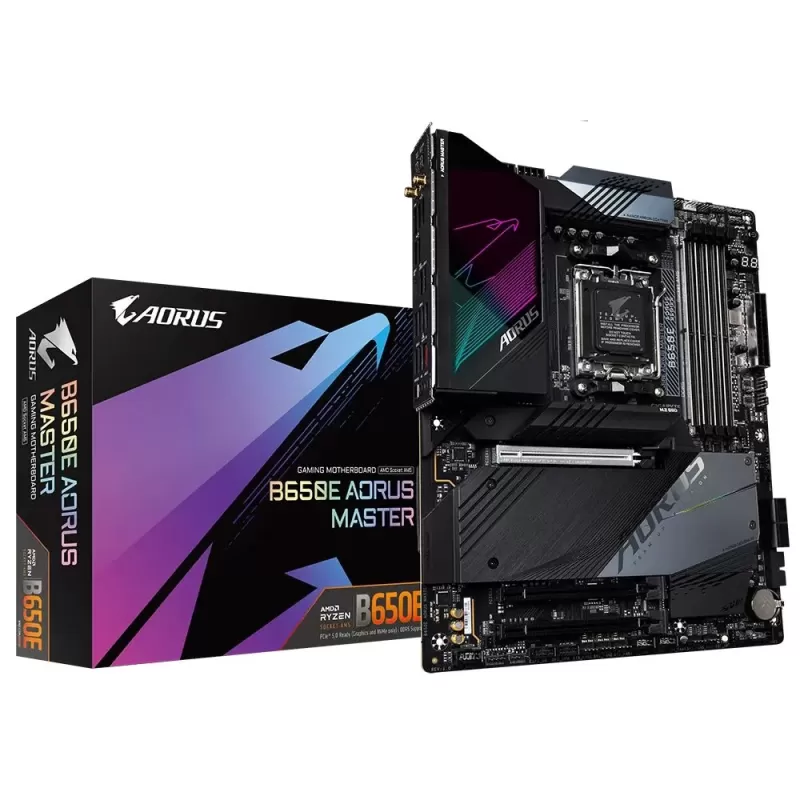

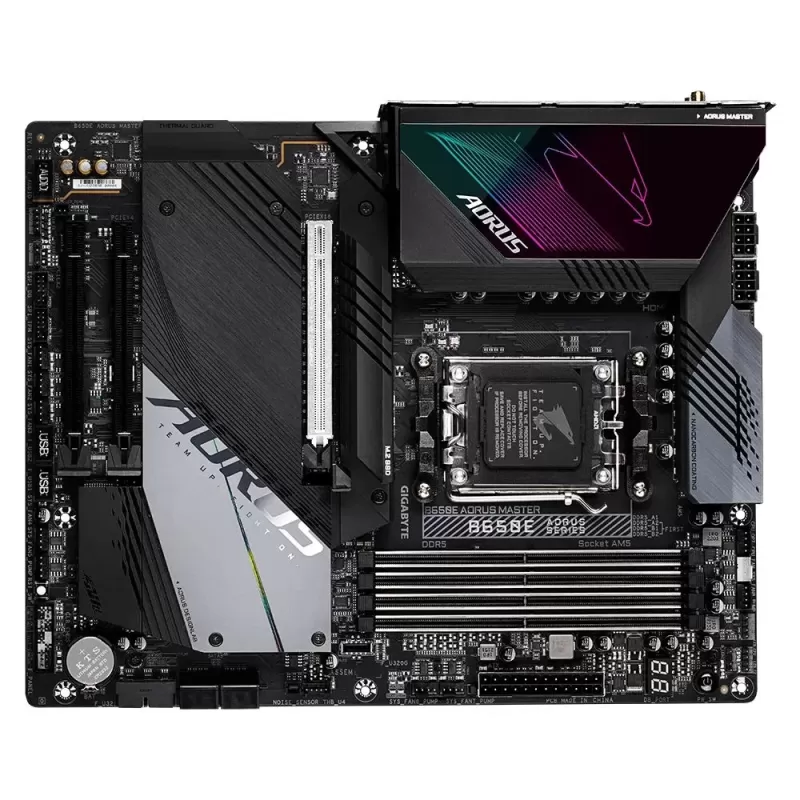

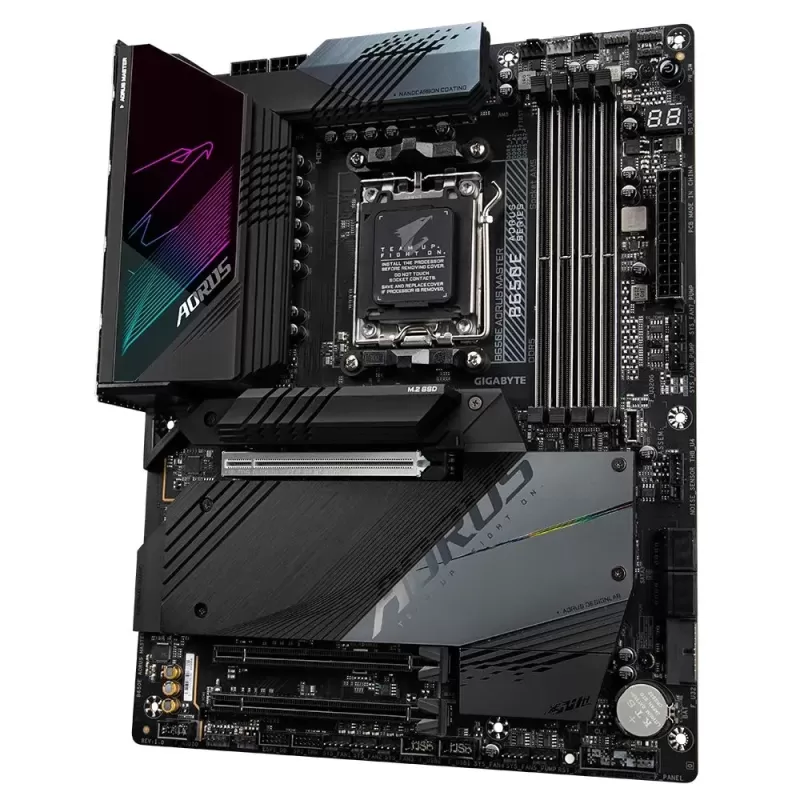

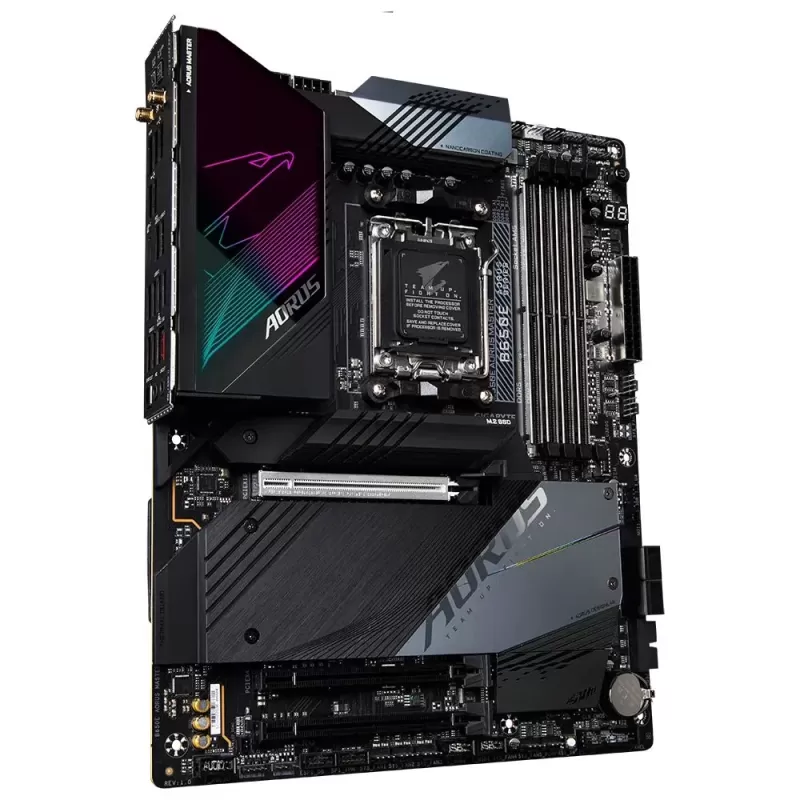

לוח אם Gigabyte B650E AORUS MASTER DDR5 DIMM AM5 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
   * Actual support may vary by CPU.
2. 3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2D_CPU, M2C_CPU, M2B_CPU)
   * Actual support may vary by CPU.

Chipset:

1. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

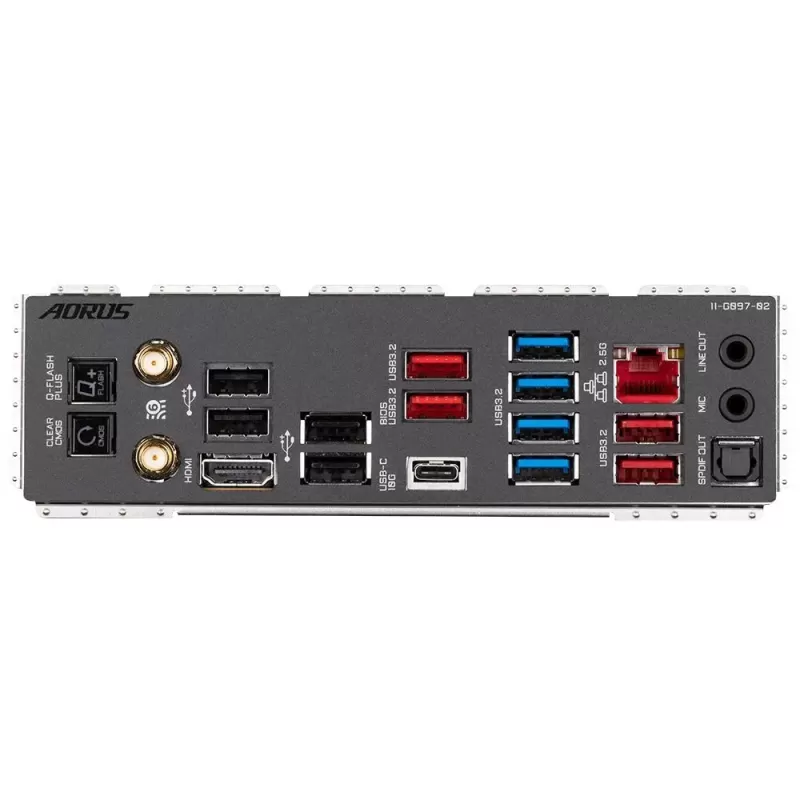

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 1 x HDMI 2.1 port
4. 2 x SMA antenna connectors (2T2R)
5. 1 x USB Type-C^®&port on the back panel, with USB 3.2 Gen 2 support
6. 4 x USB 3.2 Gen 2 Type-A ports (red)
7. 4 x USB 3.2 Gen 1 ports
8. 4 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 2 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^®&header, with USB 3.2 Gen 2x2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x THB_U4 add-in card connector
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
2.0 module only)
20. 1 x power button
21. 1 x reset button
22. 2 x temperature sensor headers
23. 1 x reset jumper
24. 1 x Clear CMOS jumper

1. Realtek^®&ALC1220-VB CODEC
   * The front panel line out jack supports DSD audio.
2. ESS ES9118 DAC chip
3. Support for DTS:X^®&Ultra
4. High Definition Audio
5. 2/4/5.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
6. Support for S/PDIF Out

AMD Wi-Fi 6E RZ616 (MT7922A22M)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
