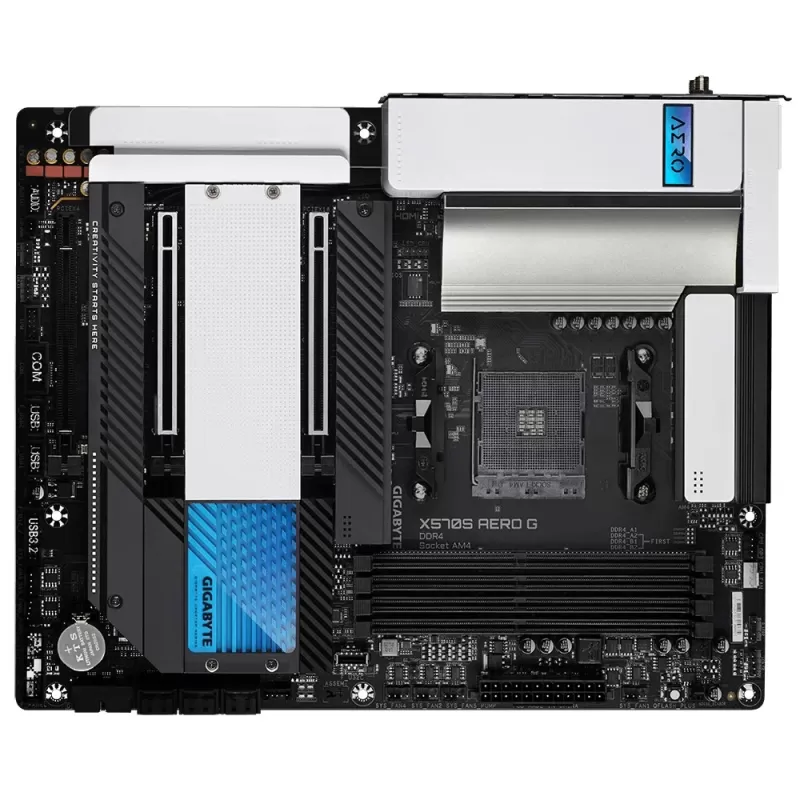

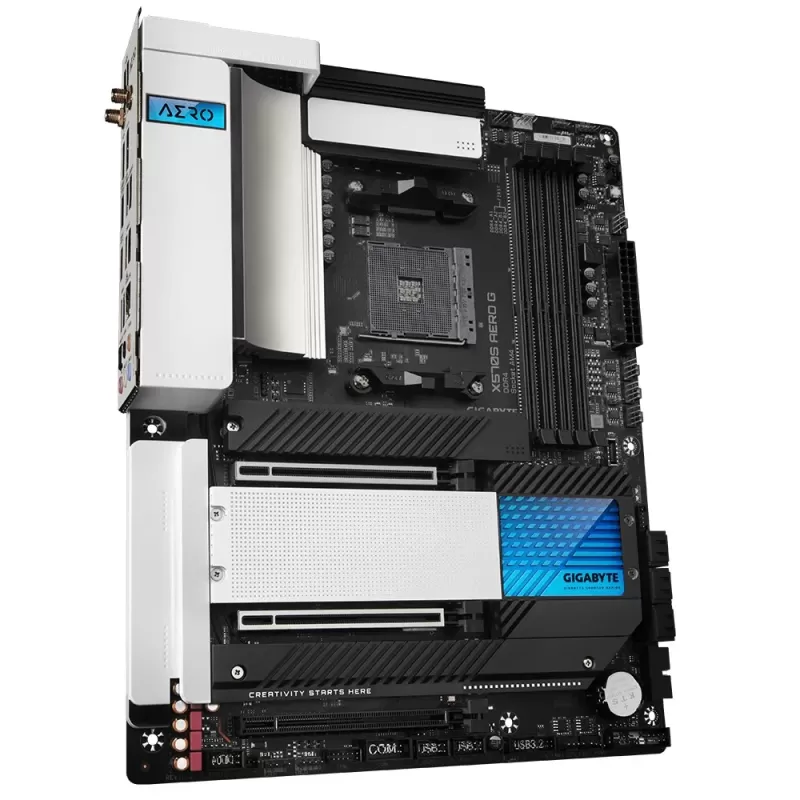

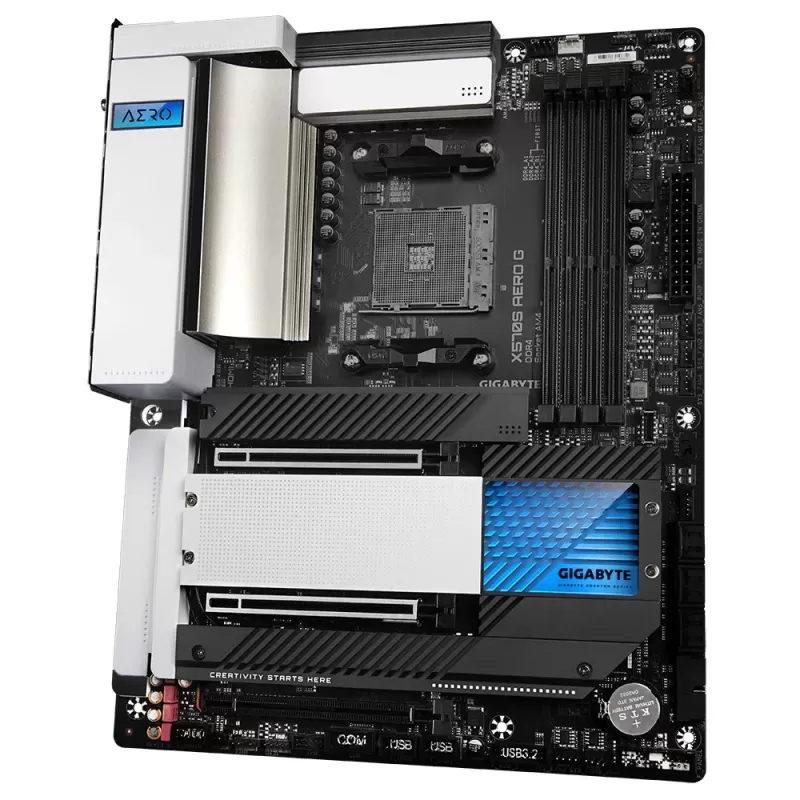

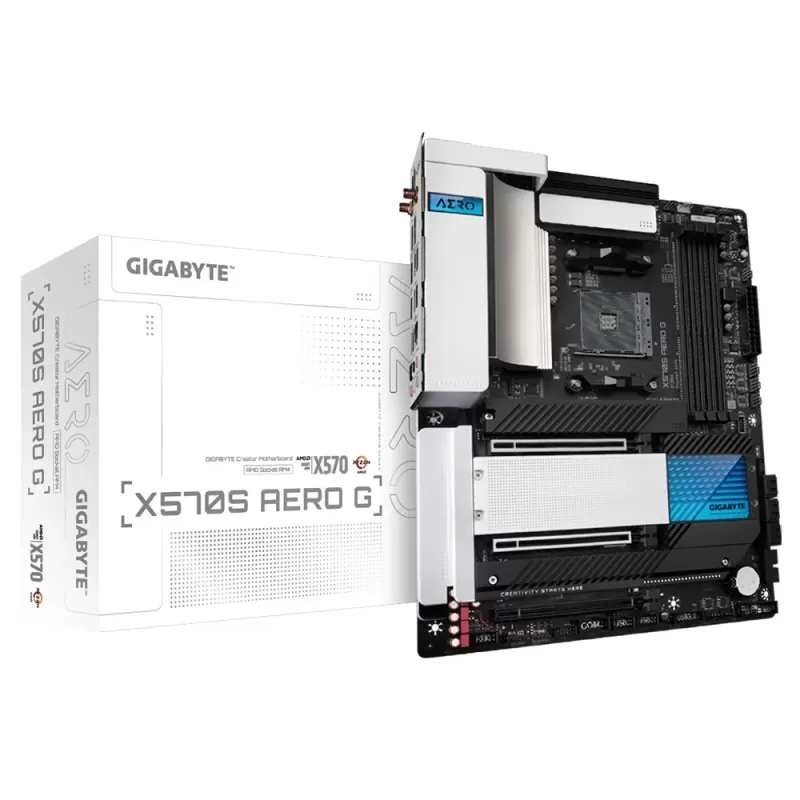

לוח אם Gigabyte X570S AERO G DDR4 DIMM AM4 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
2. Dual channel memory architecture
3. Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
   * ECC memory (ECC mode) support varies by CPU
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

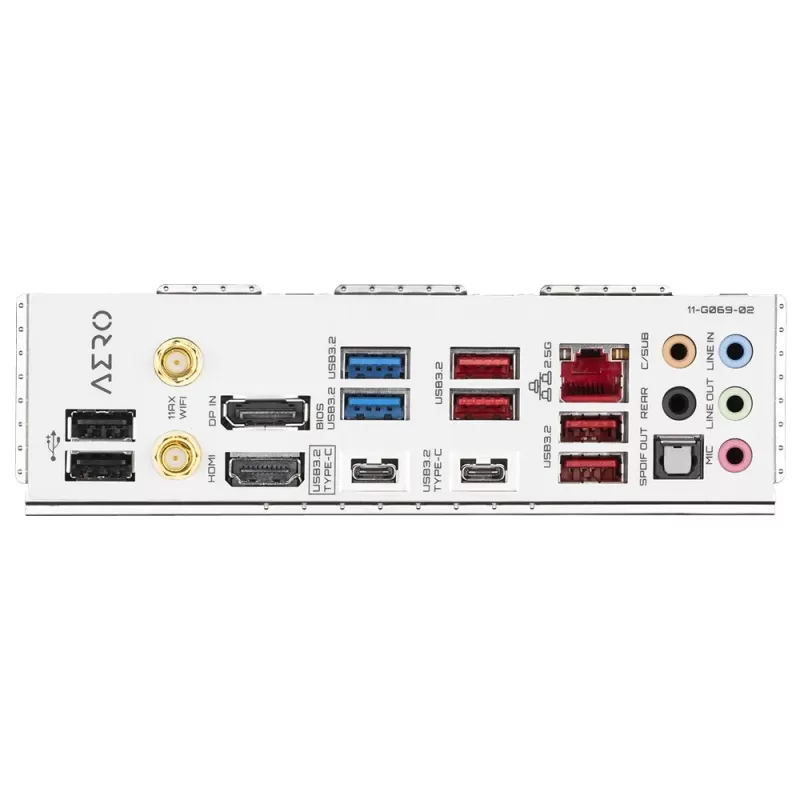

1. 2 x USB 2.0/1.1 ports
2. 2 x SMA antenna connectors (2T2R)Š Š 1 x HDMI port
3. 1 x DisplayPort In port
4. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
5. 1 x USB Type-C port, with USB 3.2 Gen 1 support
6. 4 x USB 3.2 Gen 2 Type-A ports (red)
7. 2 x USB 3.2 Gen 1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 4 x M.2 Socket 3 connectors
12. 6 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C header, with USB 3.2 Gen 2 support
16. 2 x USB 3.2 Gen 1 headers
17. 2 x USB 2.0/1.1 headers
18. 1 x noise detection header
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x Thunderbolt add-in card connector
21. 1 x serial port header
22. 1 x Clear CMOS jumper
23. 2 x temperature sensor headers
24. 1 x Q-Flash Plus button

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
