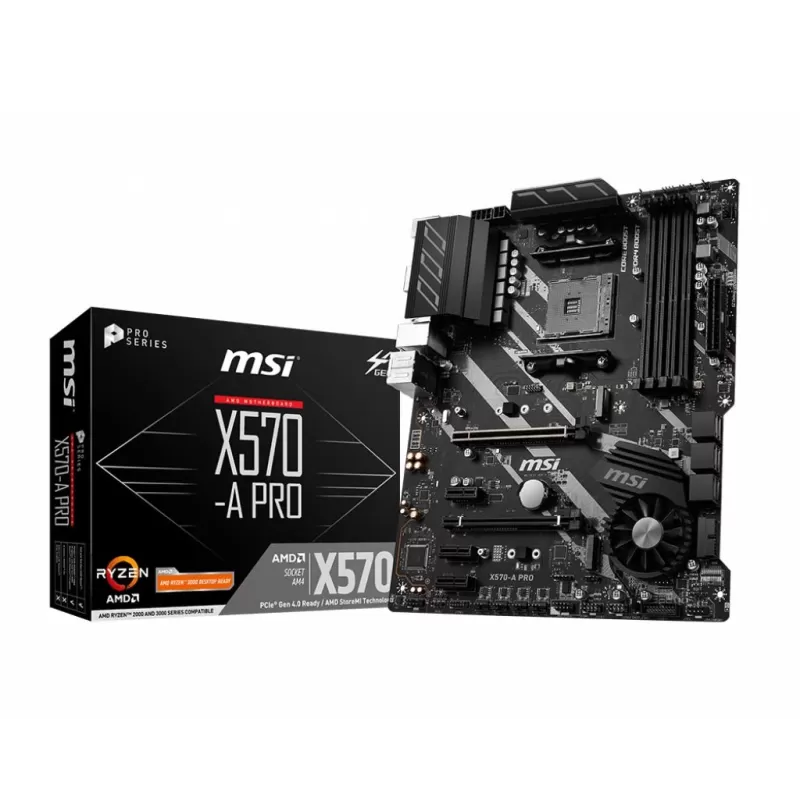

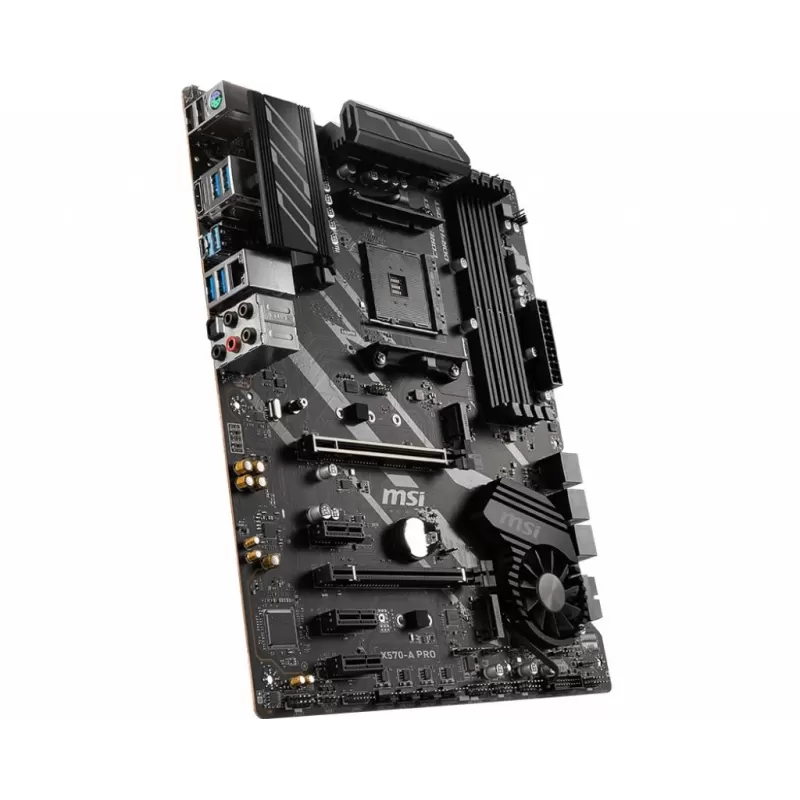

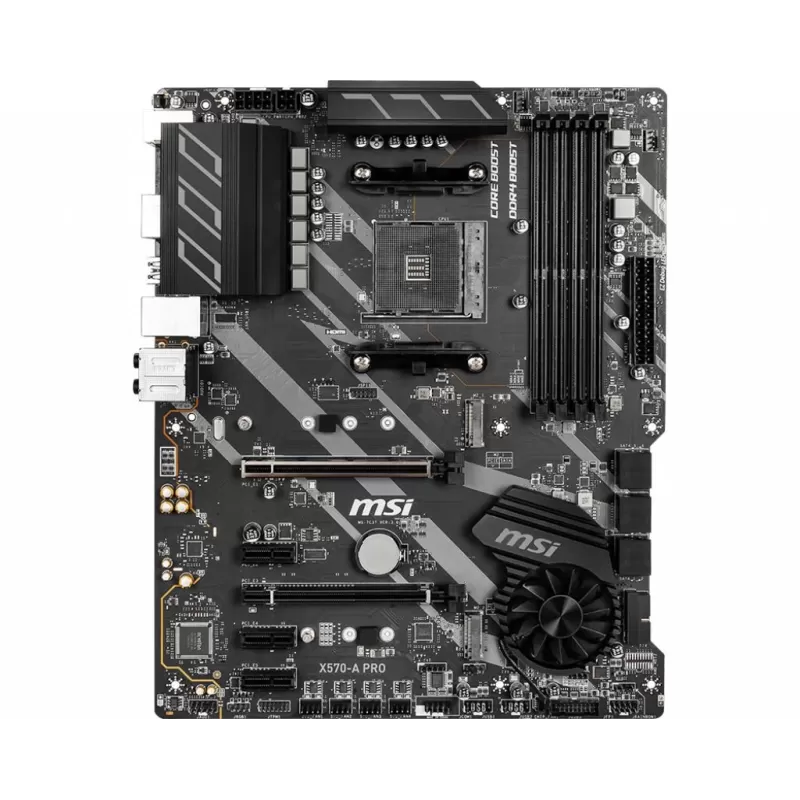

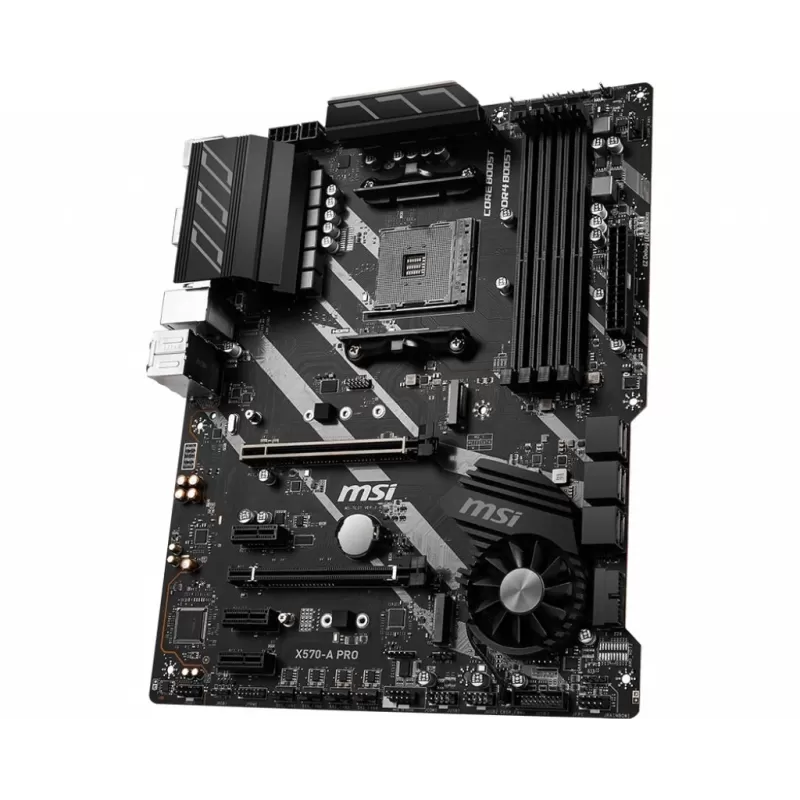

לוח אם MSI X570-A PRO DDR4 AM4

073-2241747

גיא אוני 6, אשדוד

AMD^®&X570 Chipset

• 4x SATA 6Gb/s ports(SATA3-SATA6)
• 2 x M.2 slot (Key M)
  • M2_1 slot (from AMD^®&Processor)
    • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD^®&X570 Chipset)
    • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series,Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devices

ASMedia ASM1061

• 2x SATA 6Gb/s ports (SATA1, SATA2)

• 4 DDR4 memory slots, support up to 128GB (depending on the processor)¹
  • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

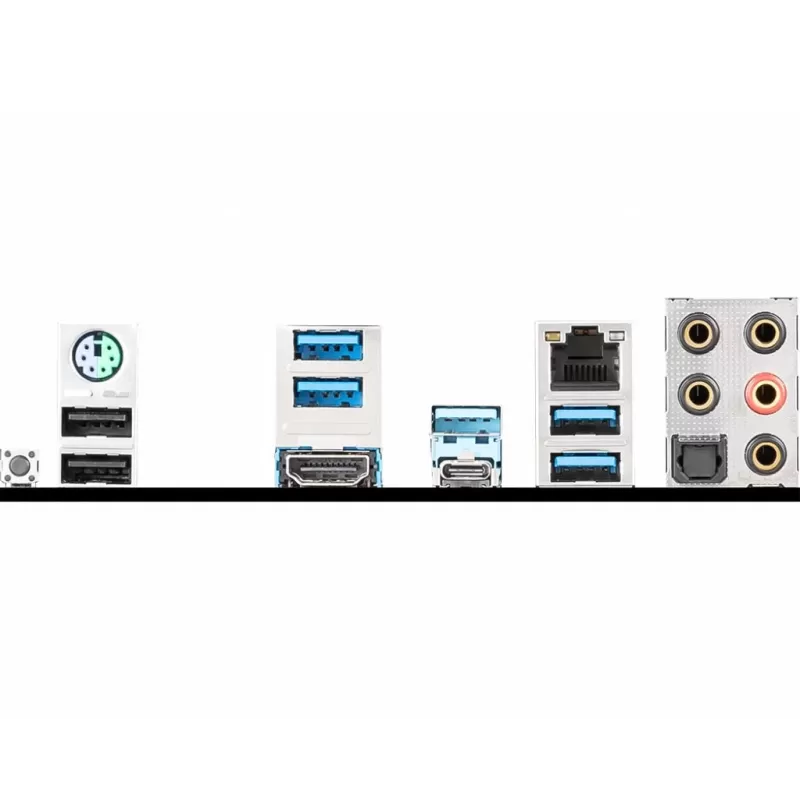

1. Keyboard / Mouse
2. USB 3.2 Gen1 Type-A
3. LAN Port
4. HD Audio Connectors
5. Flash BIOS Button
6. USB 2.0 Ports
7. HDMI Port
8. USB 3.2 Gen2 Ports (Type-A + C)
9. USB 3.2 Gen1 Type-A Ports
10. Optical S/PDIF out

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump connector
• 4 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x TPM module connector
• 1 x Serial port connector
• 1 x Clear CMOS jumper
• 1 x Chassis Intrusion connector
• 2 x 4-pin RGB LED connectors
• 2 x 3-pin RAINBOW LED connectors
• 4 x EZ Debug LEDs

Realtek^®&ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output
