לוח אם Gigabyte Z790 AORUS XTREME X DDR5 DIMM LGA1700 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
3. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

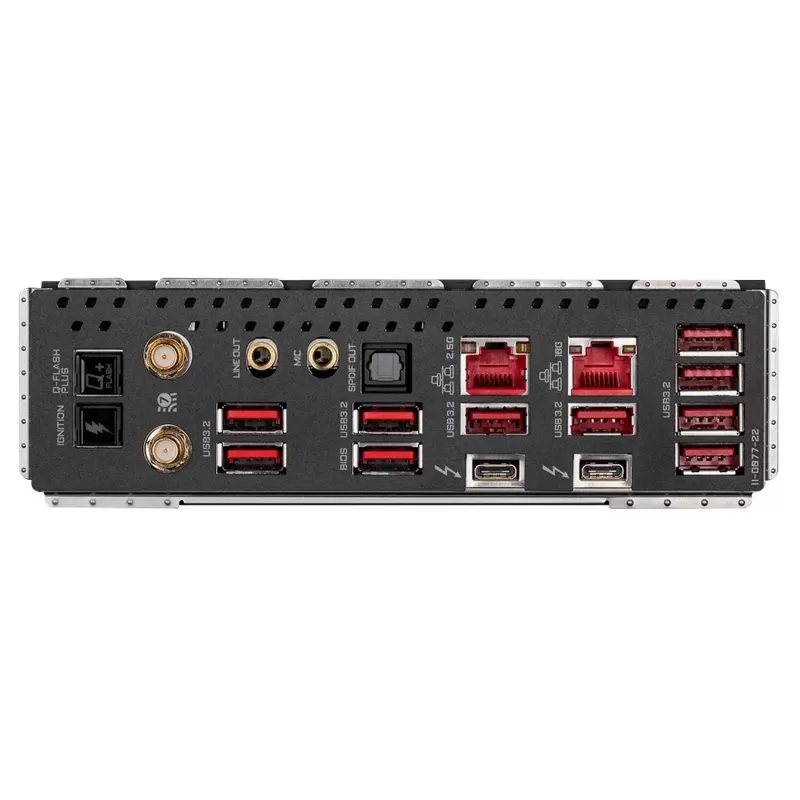

1. 1 x Q-Flash Plus button
2. 1 x OC Ignition button
3. 2 x SMA antenna connectors (2T2R)
4. 2 x Thunderbolt™ 4 connectors (USB Type-C^®&ports, with USB 3.2 Gen 2 support)
5. 10 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x RJ-45 ports
7. 1 x optical S/PDIF Out connector
8. 2 x audio jacks
   * The mic in jack supports only mono microphone input

1. 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
2. DTS^®&Sound Unbound™
3. High Definition Audio
4. 2-channel
5. Support for S/PDIF Out
   * The line out jack and the optical S/PDIF out connector can only be used one at a time.
