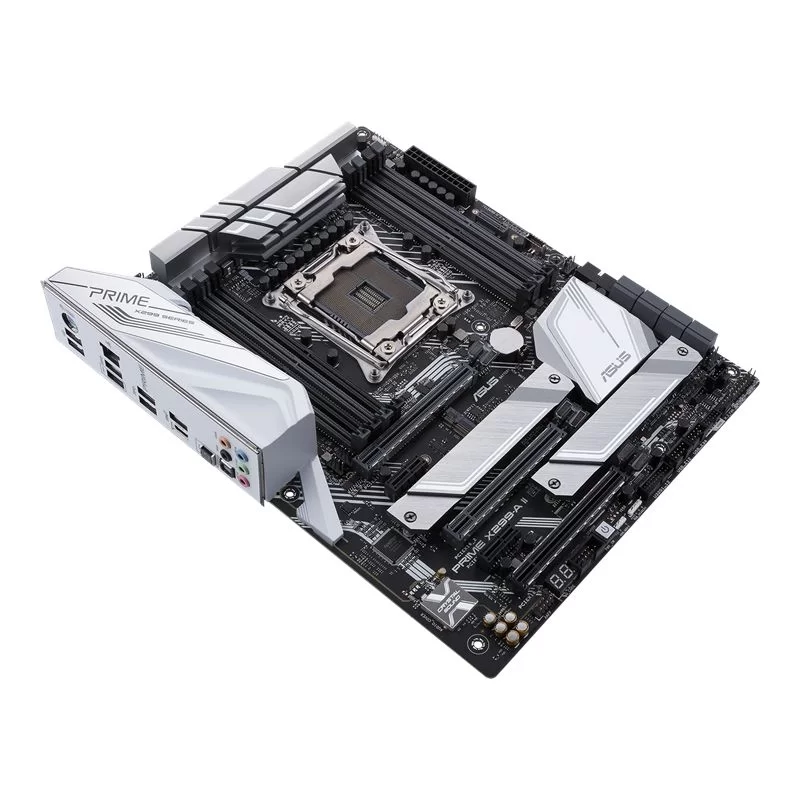

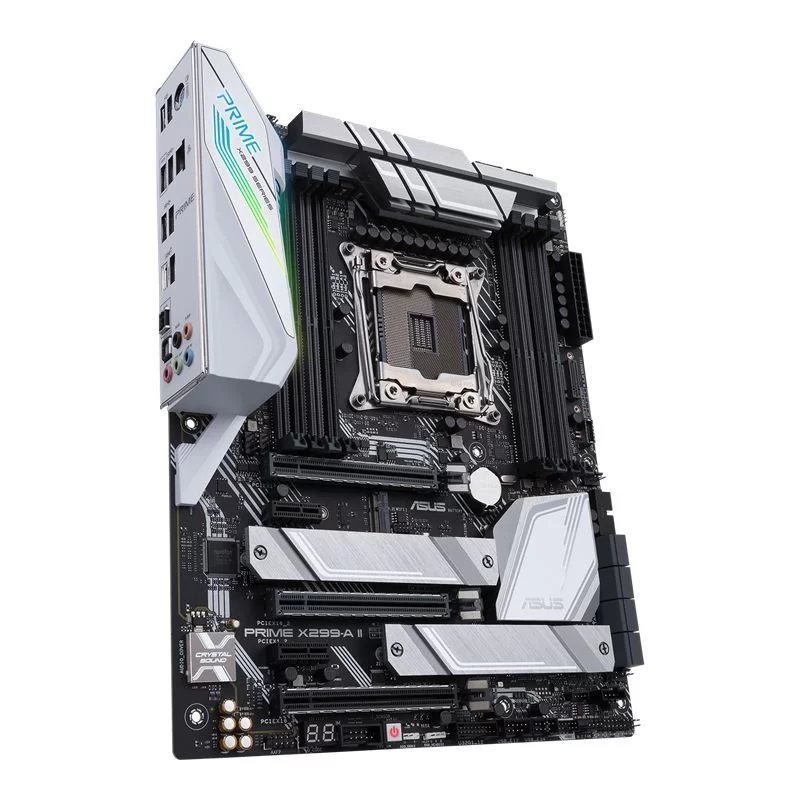

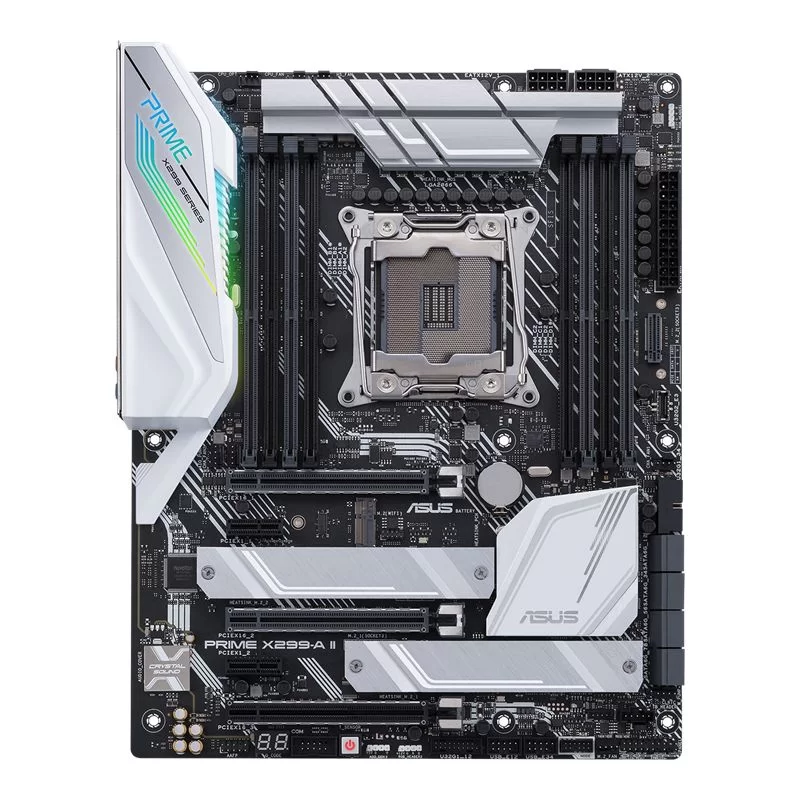

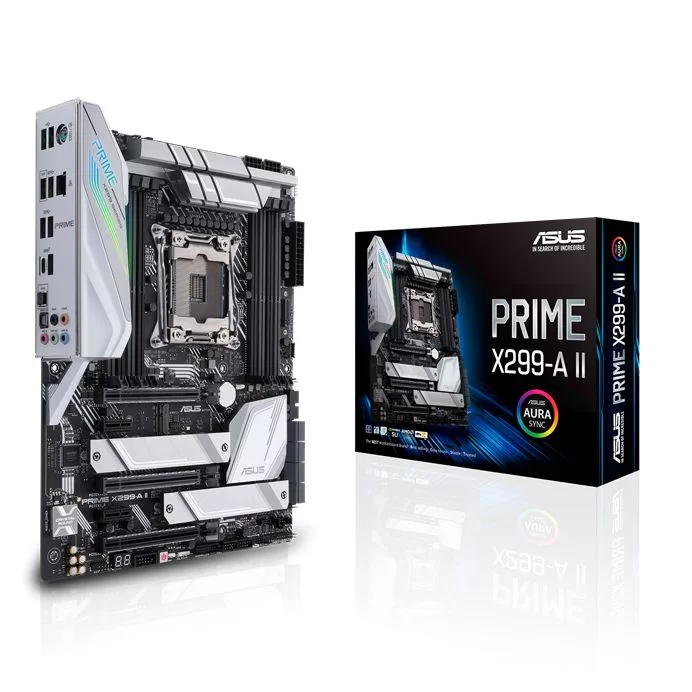

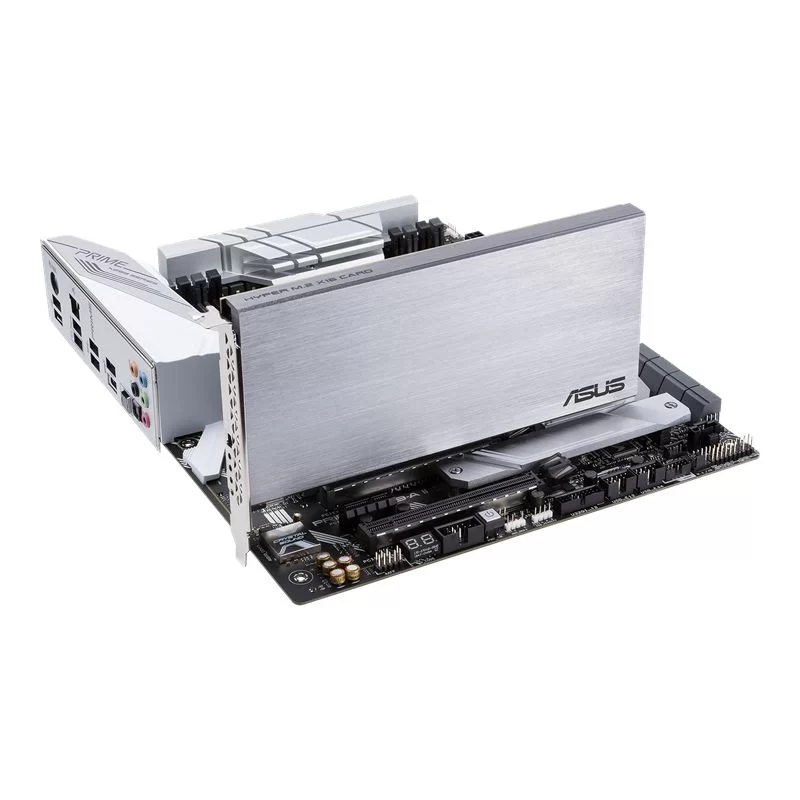

לוח אם Asus Prime X299-A II DDR4 DIMM LGA2066

073-2241747

גיא אוני 6, אשדוד

Intel® X299 Chipset :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*³
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*⁴
8 x SATA 6Gb/s port(s)*⁵
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
(Intel® Core™ i9 10000 X-Series CPU) :
2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Enterprise supports
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU) :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology 15 support

(Intel® Core™ i9 10000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.&

1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack^™)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBack^™&Button(s)
2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C^TM)

1 x AAFP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)&(Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x CPU_OV jumper
1 x Q-Code

Realtek® S1220A&8-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS X®:Ultra
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs

Intel® I219V, 1 x Gigabit LAN
ASUS Turbo LAN Utility
ASUS LAN Guard

User´s manual
1 x Vertical M.2 bracket set
1 x ASUS Fan Holder
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
