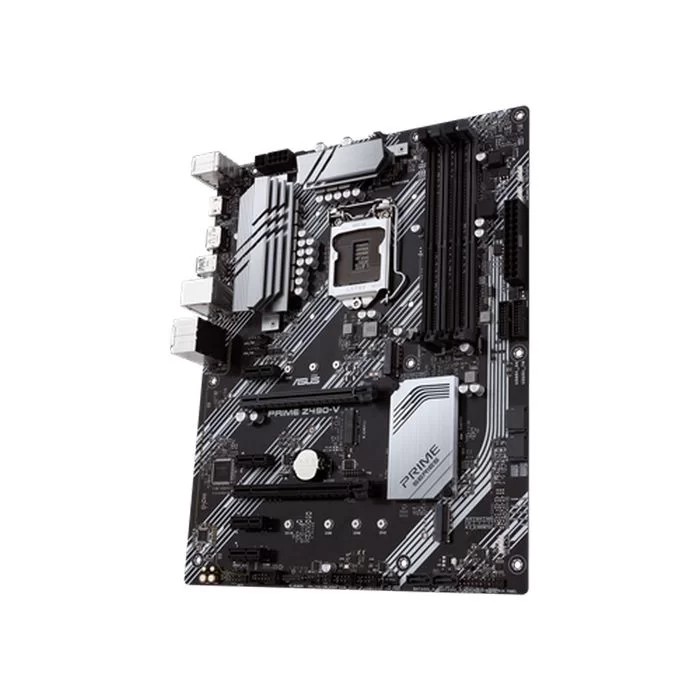

לוח אם Asus PRIME Z490-V DDR4 DIMM LGA1200

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Z490 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready

4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
6 x Audio jack(s)

1 x CPU Fan connector(s)

3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header

M.2 slot only (Key E) (Support CNVI & PCIe interface)*

*Wi-Fi module is sold separately.

I/O Shield

2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
User manual
