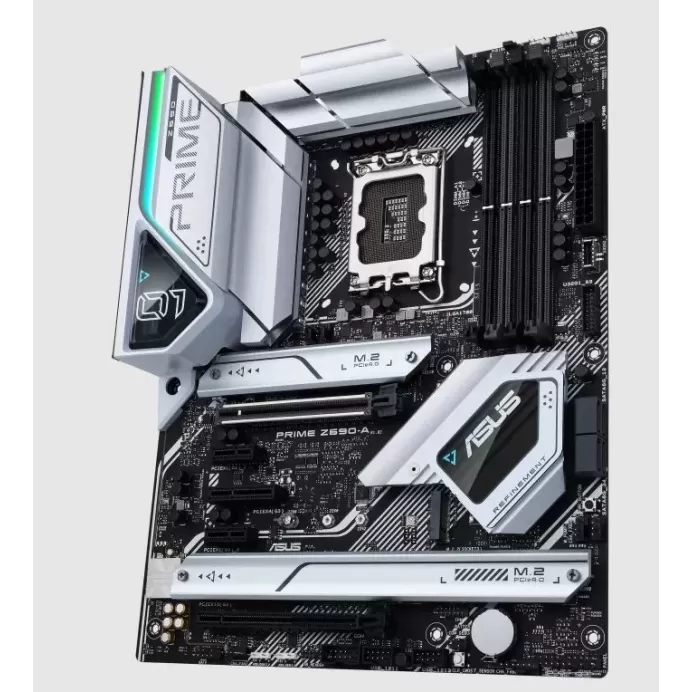

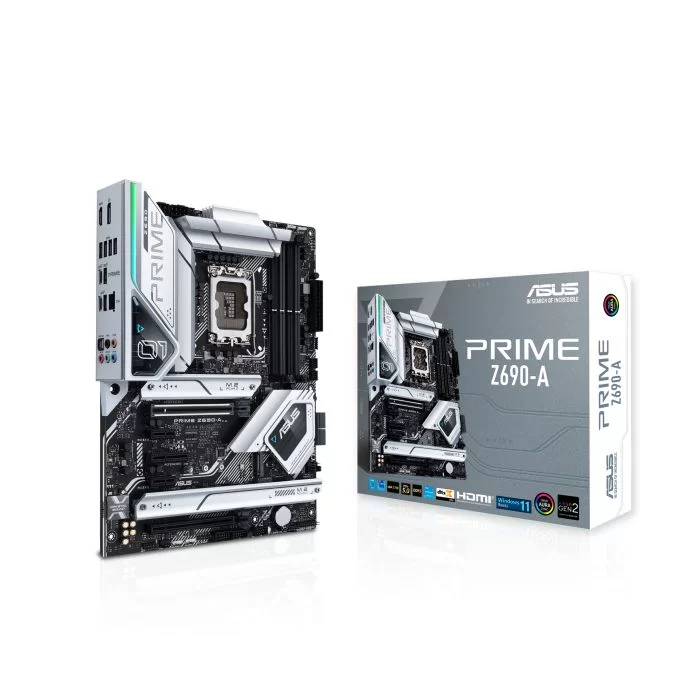

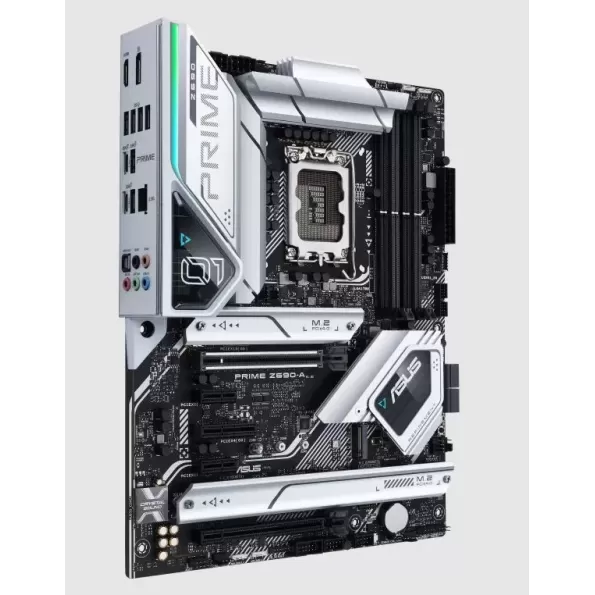

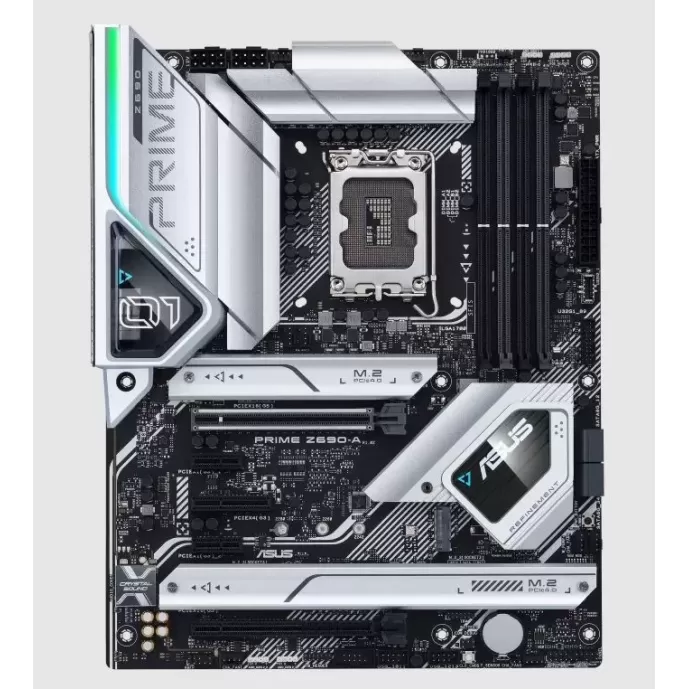

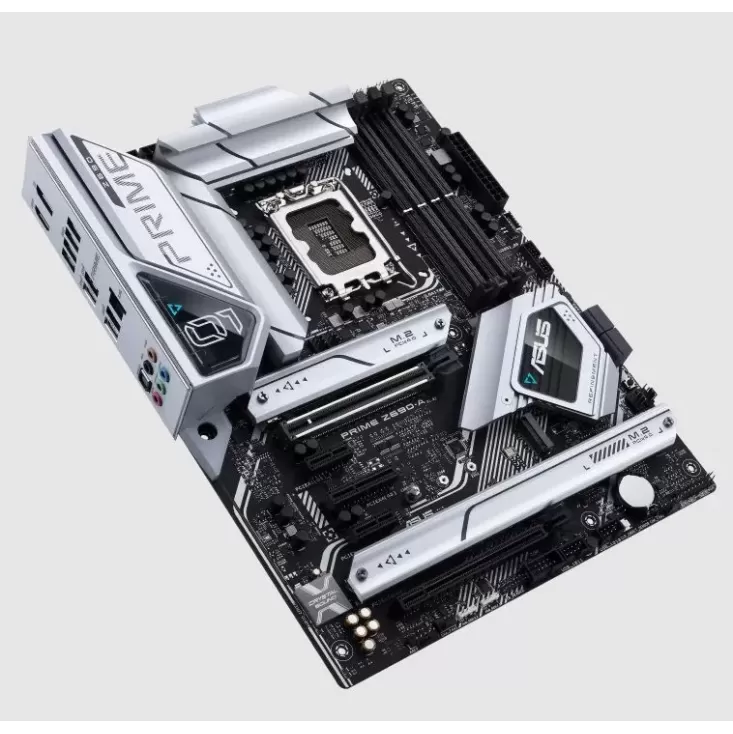

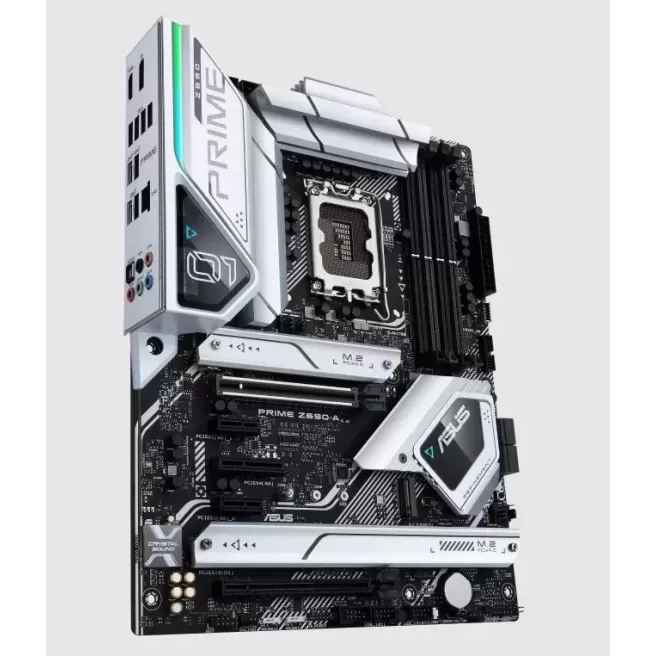

לוח אם Asus PRIME Z690-A DDR5 DIMM LGA1700

Asus PRIME Z690-A - לוח אם

לוח אם Asus PRIME Z690-A - זיכרון 128GB, סוג זיכרון DDR5, שקע מעבד LGA1700, ערכת שבבים Z690. מתאים לבניית מחשב או שדרוג פלטפורמה.

לוח האם קובע אילו מעבדים אפשר להתקין, כמה זיכרון ואילו כרטיסים ודיסקים ייכנסו. זהו הבסיס לכל שדרוג עתידי.

מה יש בפנים

• זיכרון: 128GB
• סוג זיכרון: DDR5
• שקע מעבד: LGA1700
• ערכת שבבים: Z690

למה זה מתאים

המוצר מיועד לבניית מחשב או שדרוג פלטפורמה.

זיהוי הדגם

מק"ט היצרן: PRIME Z690-A. לפי מספר זה אפשר לוודא התאמה של אביזרים ושל חלקי חילוף.

Intel12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel12th Gen processors support PCIe 4.0 x4 mode.

Intel Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

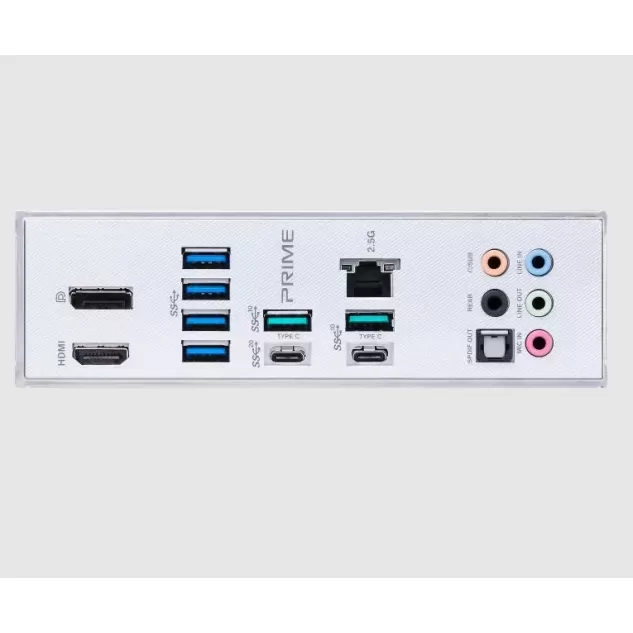

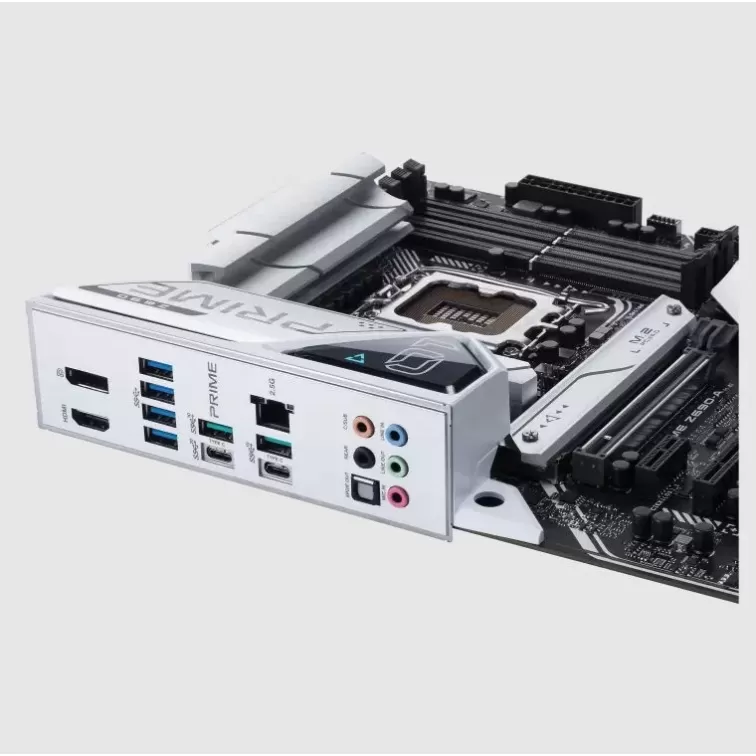

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x Type-C )

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Intel 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt header

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package(s)

1 x Q-connector

1 x M.2 Q-Latch package(s)

Installation Media

1 x Support DVD

Documentation

1 x User guide
