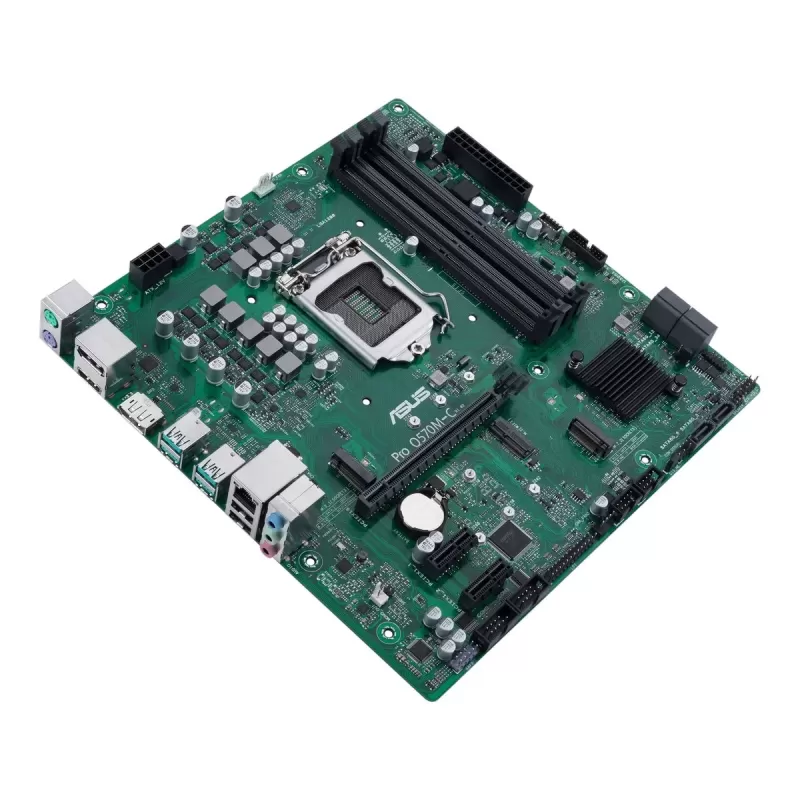

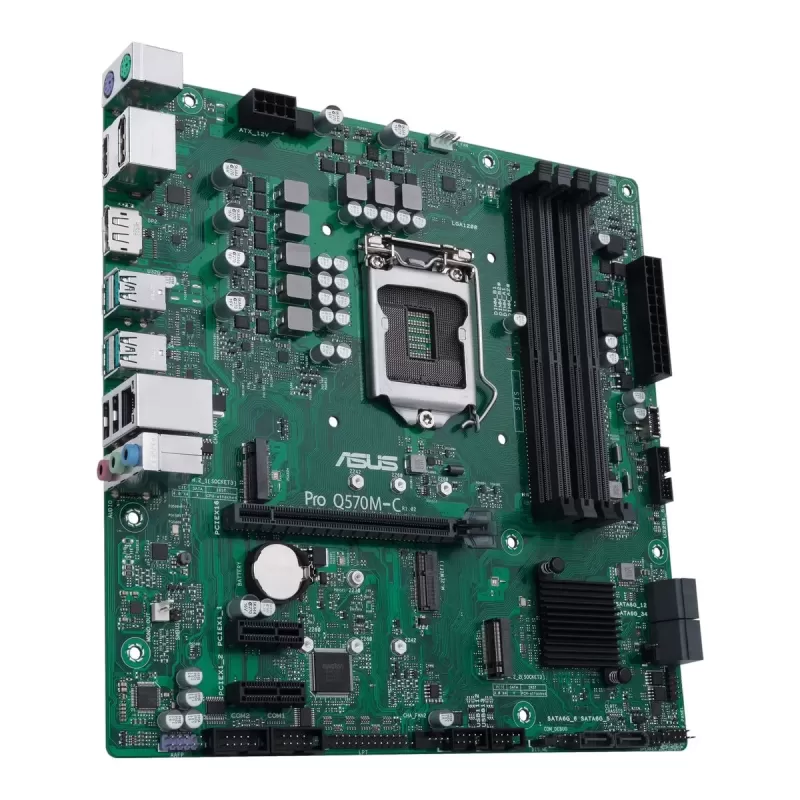

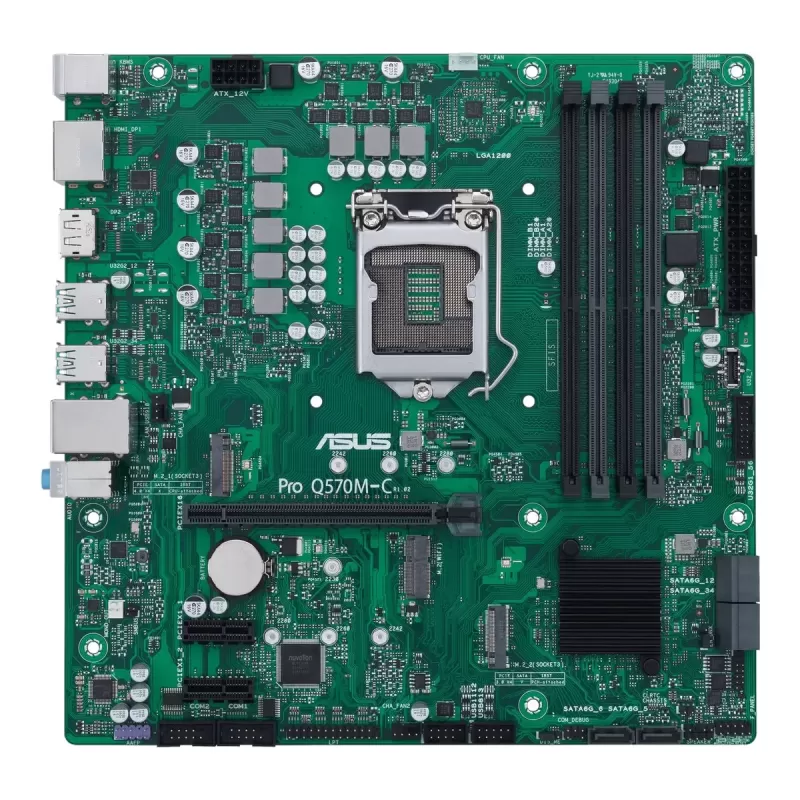

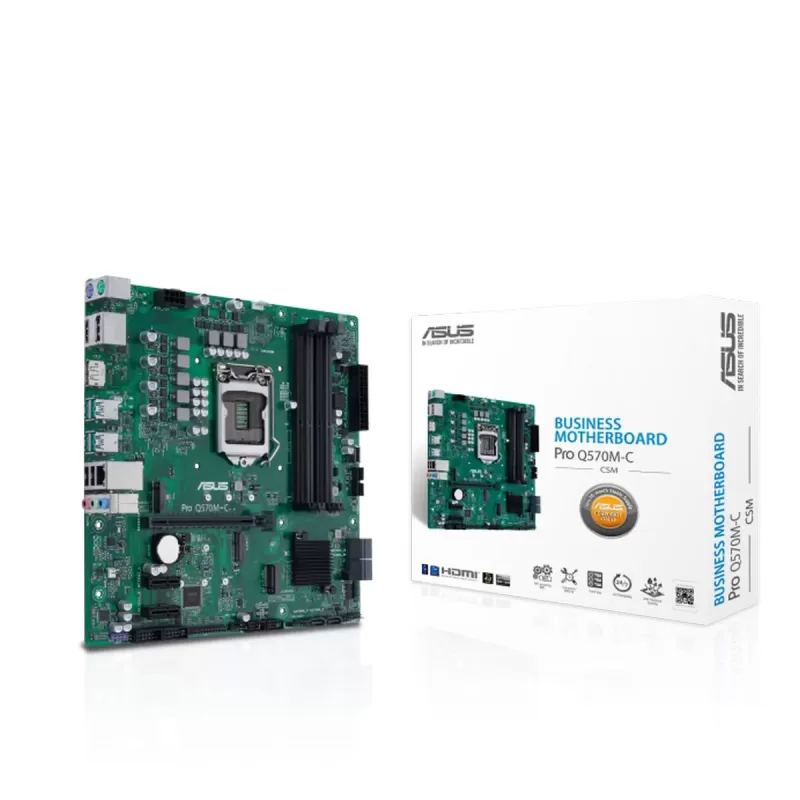

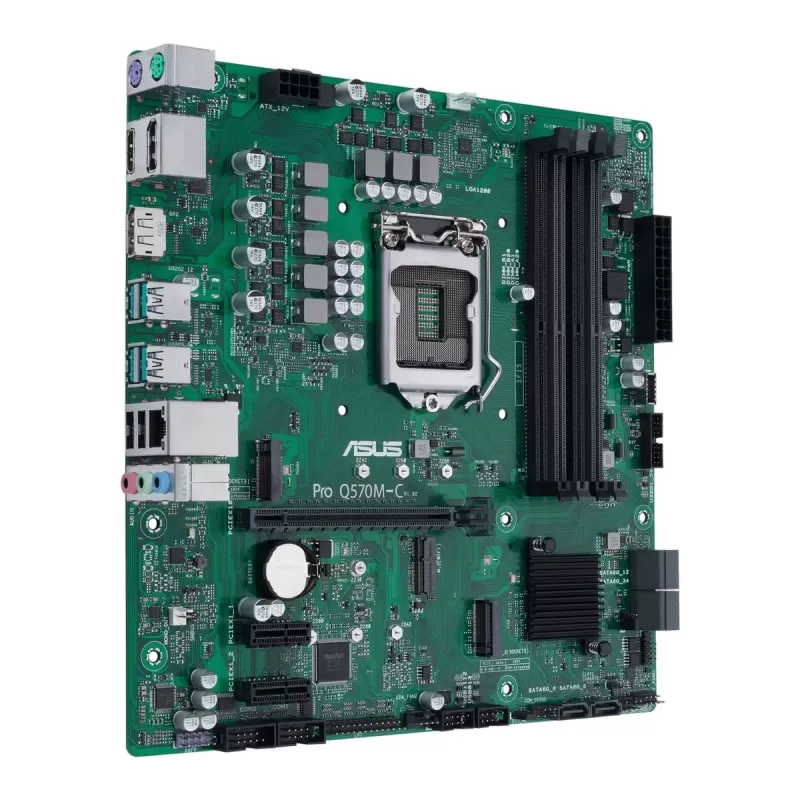

לוח אם Asus Pro Q570M-C/CSM DDR4 DIMM LGA1200

073-2241747

גיא אוני 6, אשדוד

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® 11th & 10th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® Q570 Chipset

M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

* When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

RAID function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

4 x DIMM, Max. 128GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^®&Extreme Memory Profile (XMP)

Optimem

* 10th Gen Intel^®&Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel^®&processors support 2933/2800/2666/2400/2133 natively.

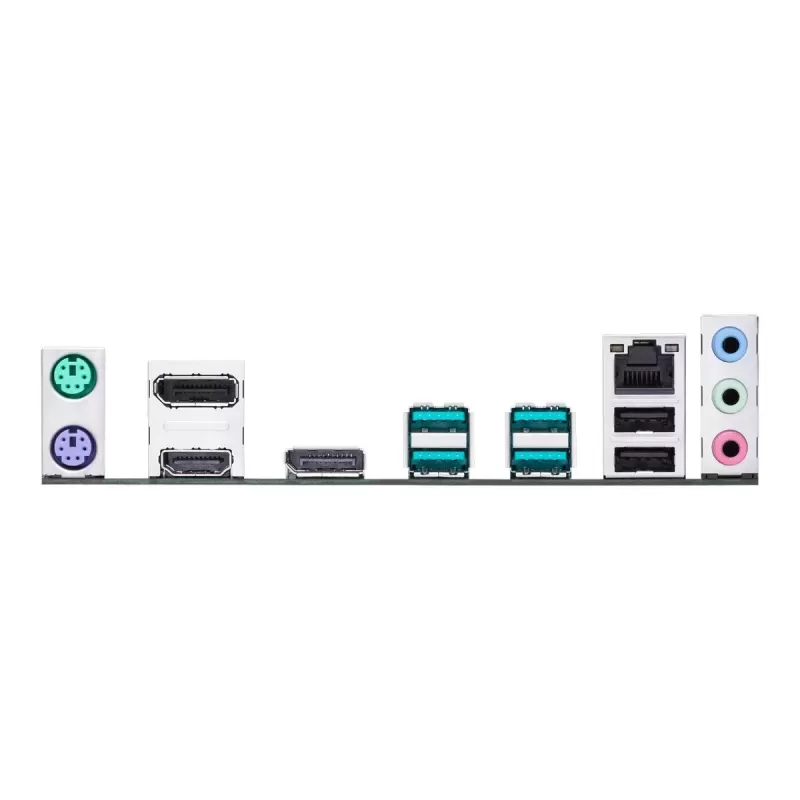

4 x USB 3.2 Gen 2 ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A)

2 x DisplayPort

1 x HDMITM

3 x Audio jacks

1 x Intel® I219-LM 1Gb Ethernet

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x DIS ME jumper

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x SMBUS header

1 x Speaker header

1 x 10-1 System Panel header

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

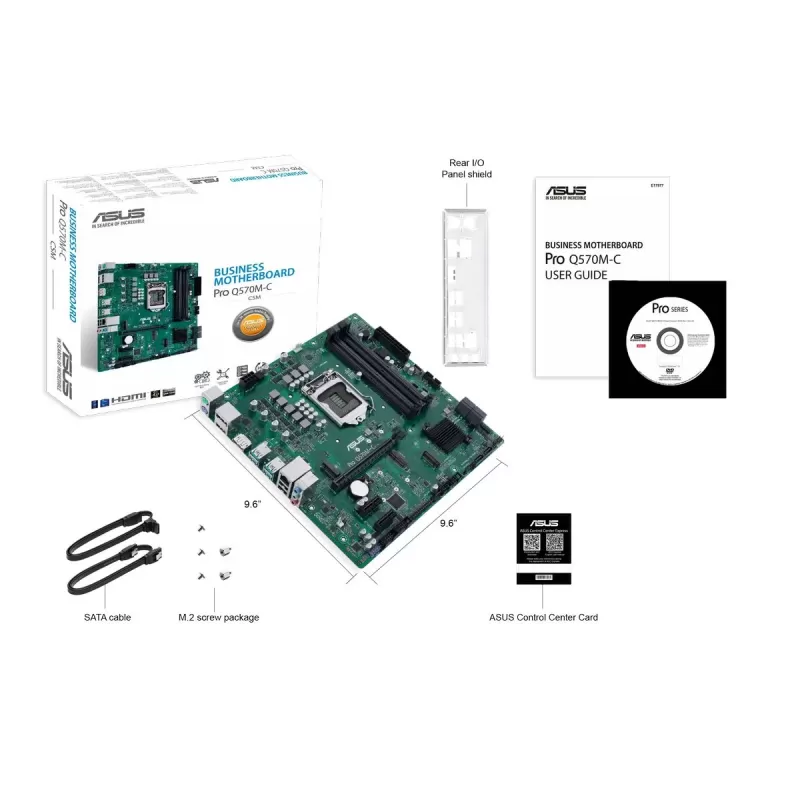

Cables

2 x SATA 6Gb/s cables

Miscellaneous

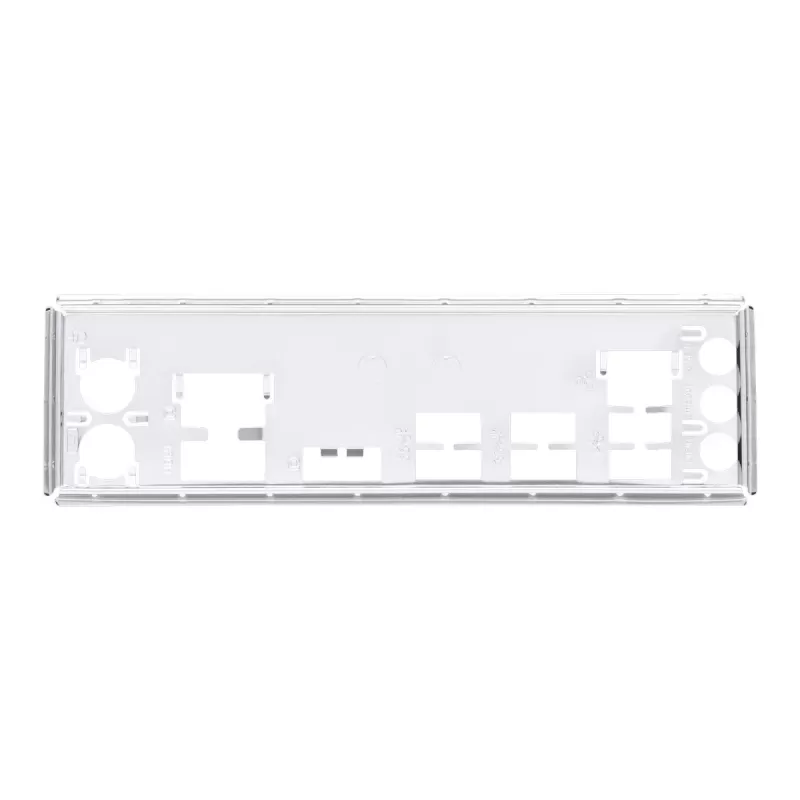

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual
