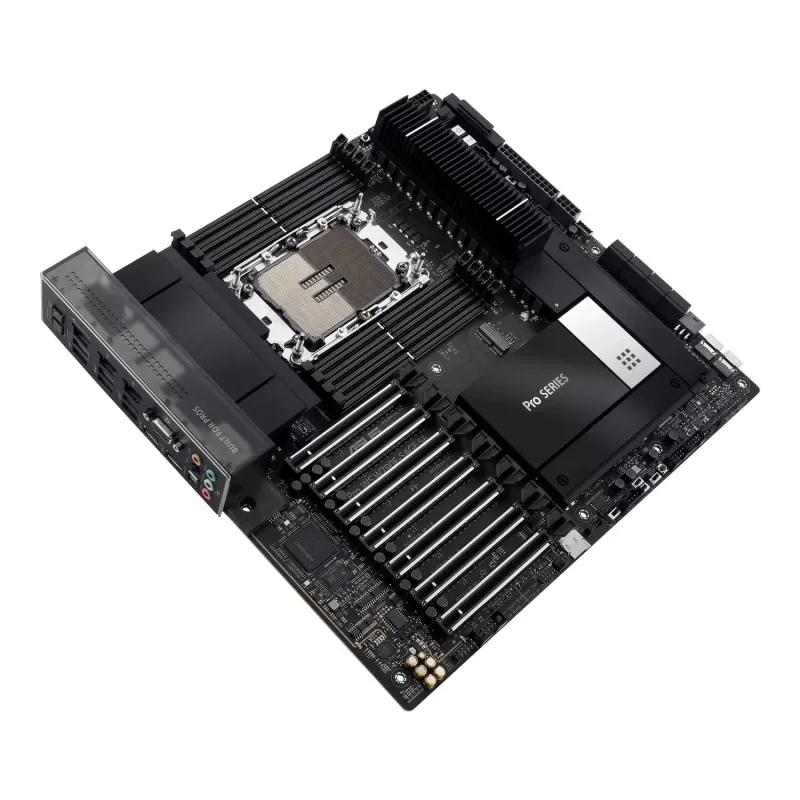

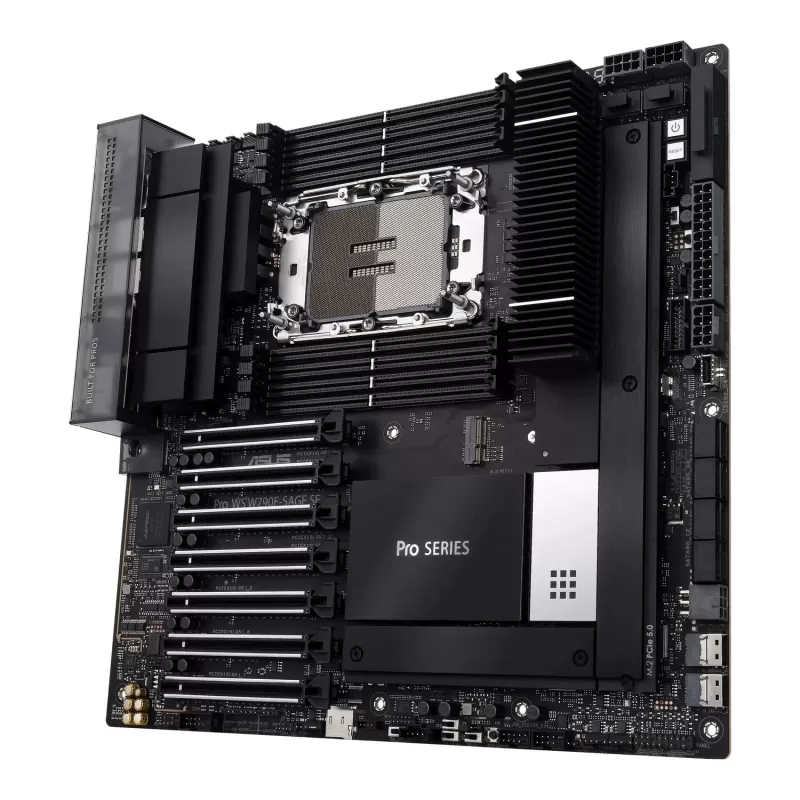

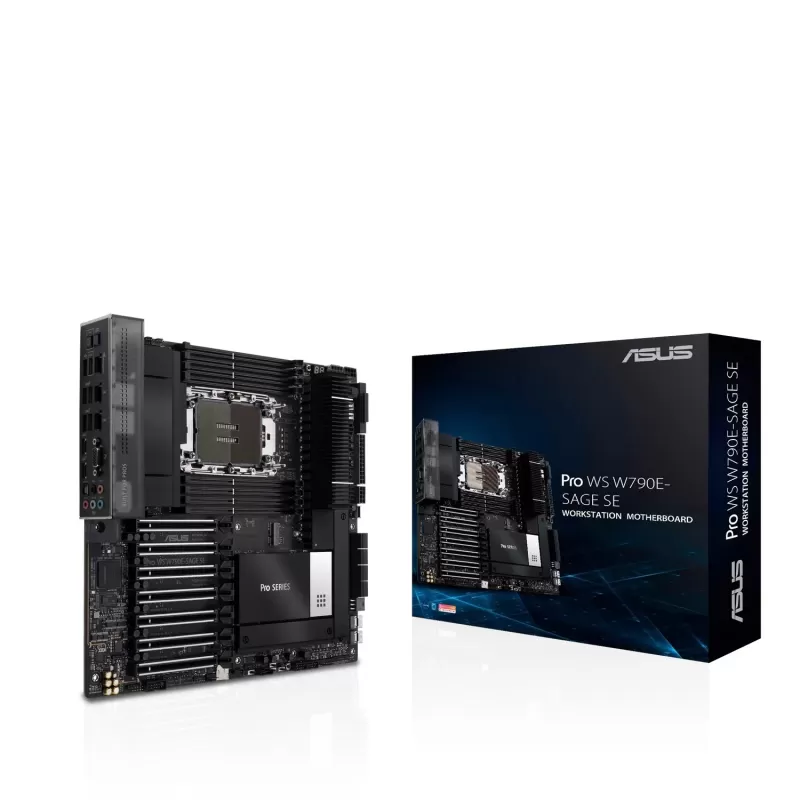

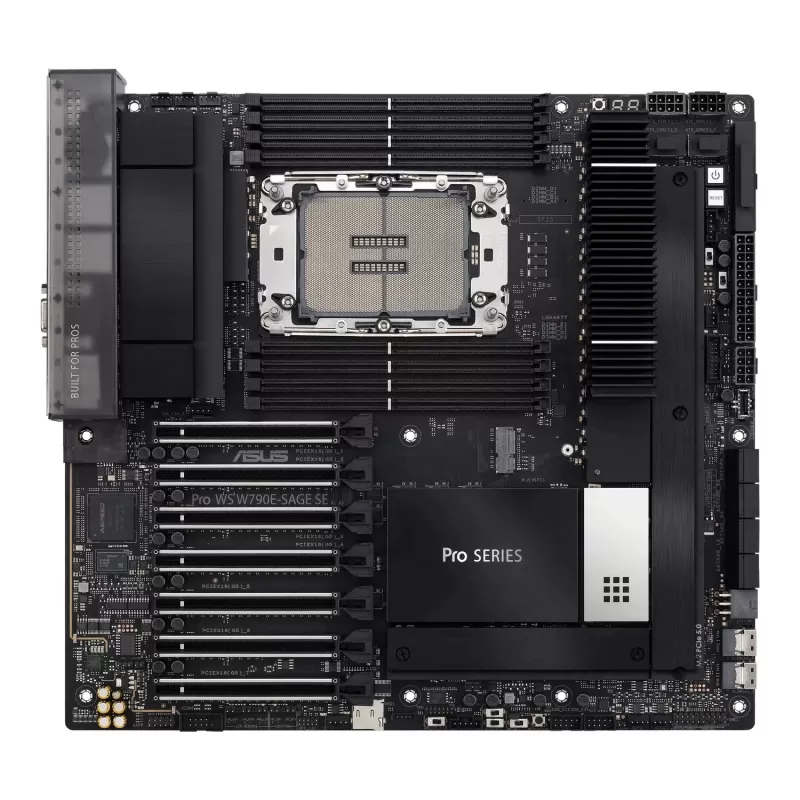

לוח אם Asus Pro WS W790E-SAGE SE DDR5 DIMM LGA4677

Total supports 3 x M.2 slots, 2 x SlimSAS&slots and 8 x SATA 6Gb/s ports*
Intel^®&Xeon^®&W-3400 Series Processors
M.2_1 slot (Key M), type&2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
M.2_2 slot (Key M), type&2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
Intel^®&W790 Chipet**
M.2_3 slot (Key M), type&2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS_1 port supports PCIe 4.0 x4 mode&NVMe device
SlimSAS_2 port supports PCIe 4.0 x4 mode&NVMe device
8 x SATA 6Gb/s ports
* Supports Intel^®&Virtual RAID on CPU&(Intel^®&VROC) and Intel Volume Management Device (Intel^®VMD)
** Intel^®&VROC Technology supports PCIe&RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
*** M.2_1 and M.2_2 slots will be disabled&once an Intel® Xeon^®&W-2400 Series Processor is installed.

8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC&Registered Memory*
8-Channel Memory Architecture
Supports Intel^®&Extreme Memory Profile&(XMP)
* Supported memory types, data rate&(speed), and number of DRAM modules vary depending on the CPU and memory&configuration, for more information please refer to CPU/Memory Support list&under the Support tab of product information site or visit&https://www.asus.com/support/

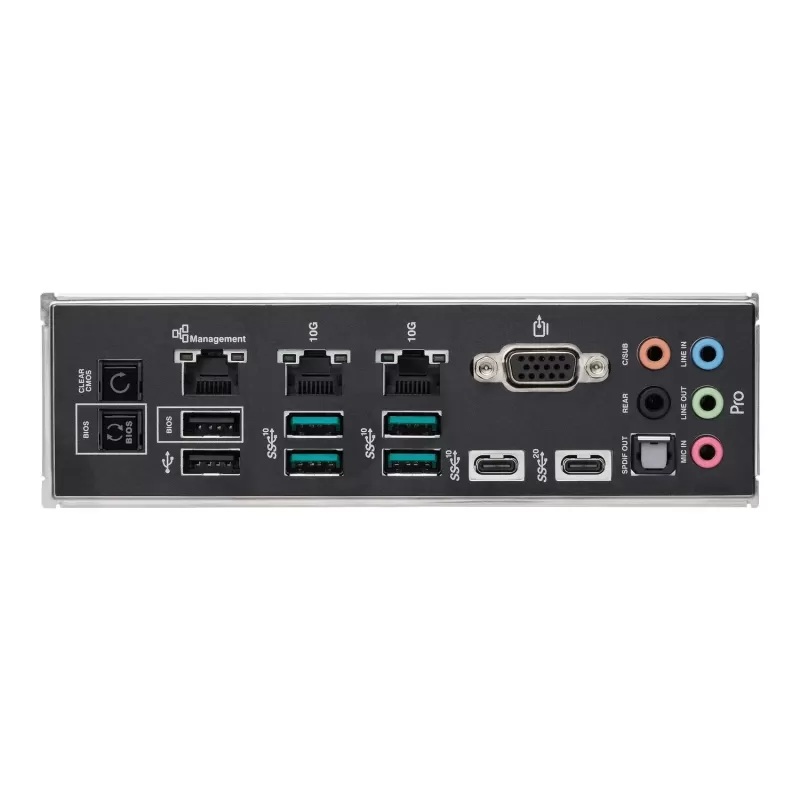

1 x USB 3.2 Gen 2x2 port(s) (1 x USB&Type-C)
5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x&USB Type-C^®)
2 x USB 2.0 port(s) (2 x Type-A)
1 x VGA port
2 x Intel^®&dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x&Clear CMOS button

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
5 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power related
2 x 24-pin Main Power connector
4 x 8-pin +12V Power connector
1 x 8-pin PCIe Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
2 x SlimSAS connector(s)
8 x SATA 6Gb/s ports
1 x VROC Key connector
USB
1 x USB 3.2 Gen 2 connector (support(s) USB&Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s) 2&additional USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) 4&additional USB 2.0 ports
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x M.2 slot (Key E)
1 x ReTry button
1 x Safe Boot button
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
BMC Related
1 x BMC switch
1 x VGA switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
2 x Q_PSU switch
2 x PSU SMBus header
1 x Front panel location LED header
1 x Location button header
1 x VPP_I2C header
1 x Micro SD card socket
1 x BMC_T_SENSOR header
1 x BMC LED
1 x Location LED
1 x&Message LED header

Realtek S1220A 7.1 Surround Sound High&Definition Audio CODEC*
- Impedance sense for front and rear&headphone outputs
- Internal audio Amplifier to enhance the&highest quality sound for headphone and speakers
- Supports: Jack-detection,&Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback&output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Power pre-regulator reduces power input&noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
Surround Sound audio.

1 x Intel^®&dual 10Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard

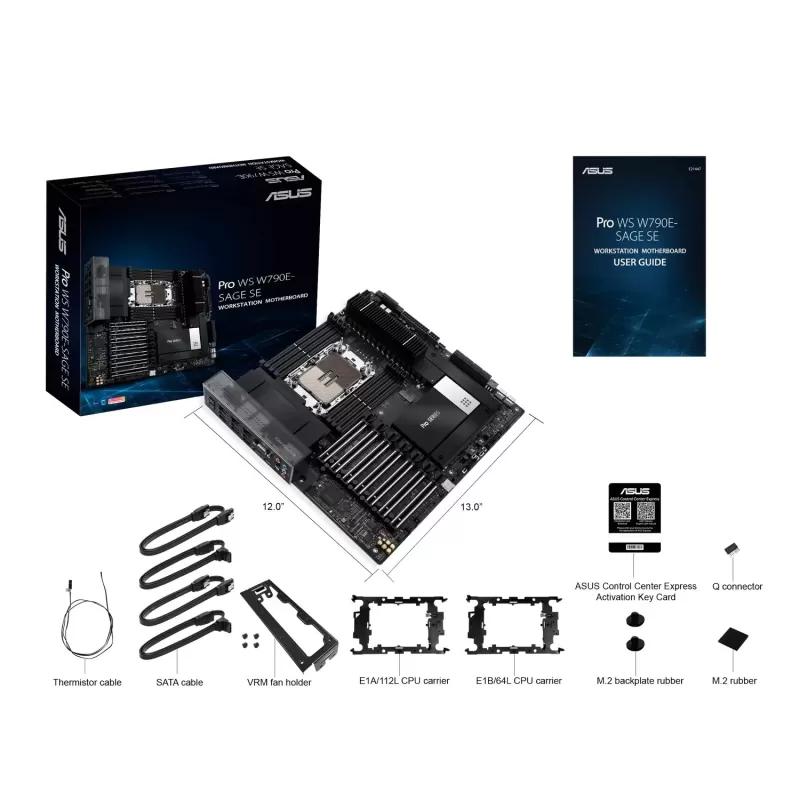

Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x VRM Fan holder
1 x Q-connector
1 x M.2 Rubber Package(s)
1 x M.2 backplate Rubber Package(s)
1 x Screw package for M.2 Key E
1 x CPU guard for LGA 4677 E1A
1 x CPU&guard for LGA 4677 E1B
Documentation
1 x ACC Express Activation Key Card
1 x User guide
