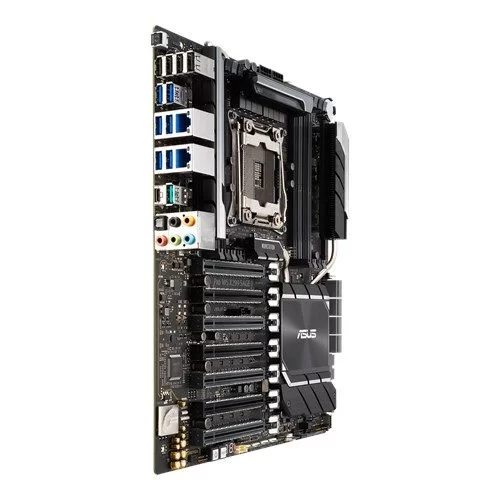

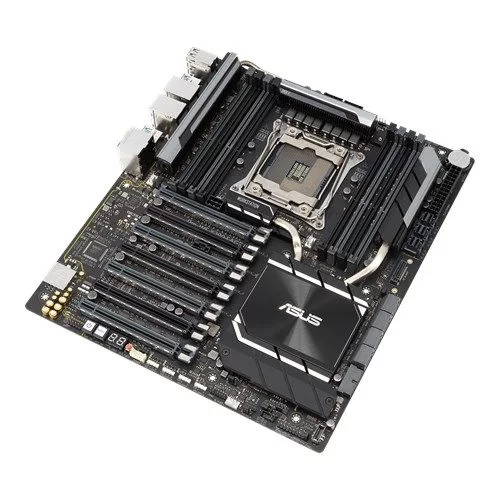

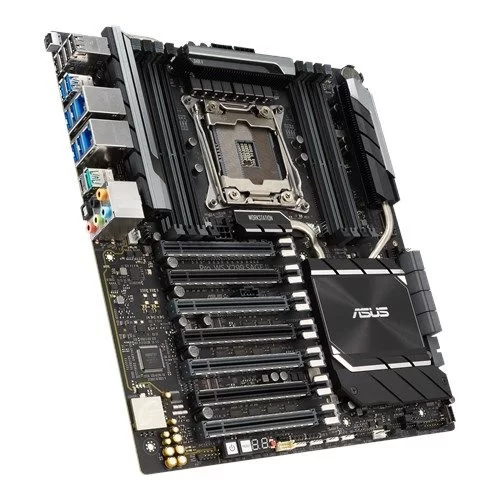

לוח אם Asus Pro WS X299 SAGE II DDR4 DIMM LGA2066

073-2241747

גיא אוני 6, אשדוד

Intel® X299 Chipset :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*²
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
8 x SATA 6Gb/s port(s)
3 x U.2 connector*³
Support Raid 0, 1, 5, 10
Support Intel^®&Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Intel® Optane™ Memory Ready
Intel® Virtual RAID (VROC) support for CPU RAID

Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.&
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

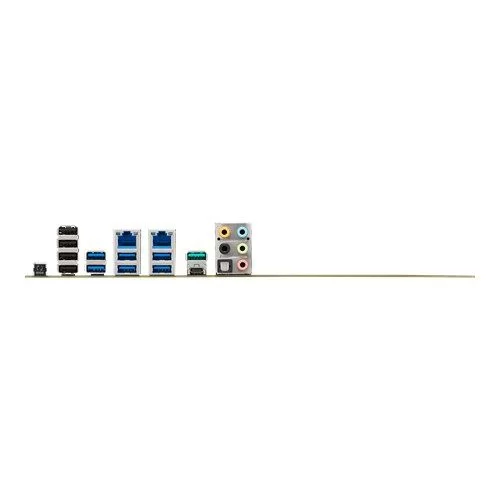

2 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2(teal blue)Type-A
1 x USB 3.2 Gen 2 (black)USB Type-C^TM,
6 x USB 3.2 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS FlashBack^™)
1 x Optical S/PDIF out
1 x USB BIOS FlashBack^™&Button(s)
1 x 8-channel Audio I/O

2 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
3 x U.2 connector
1 x System panel connector
1 x COM port header
1 x W_Pump+ Header
1 x Thermal sensor connector
1 x CPU_OV jumper
1 x M.2 Fan Header
1x 6-pin ATX 12V Power connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
3 x U.2 LED switch header

Realtek® S1200A 7.1-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-recording, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
Audio Feature :
- DTS Connect
- DTS Headphone:X
- DTS X®:Ultra
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality

User's manual
Addressable LED extension cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (0 in 1)
