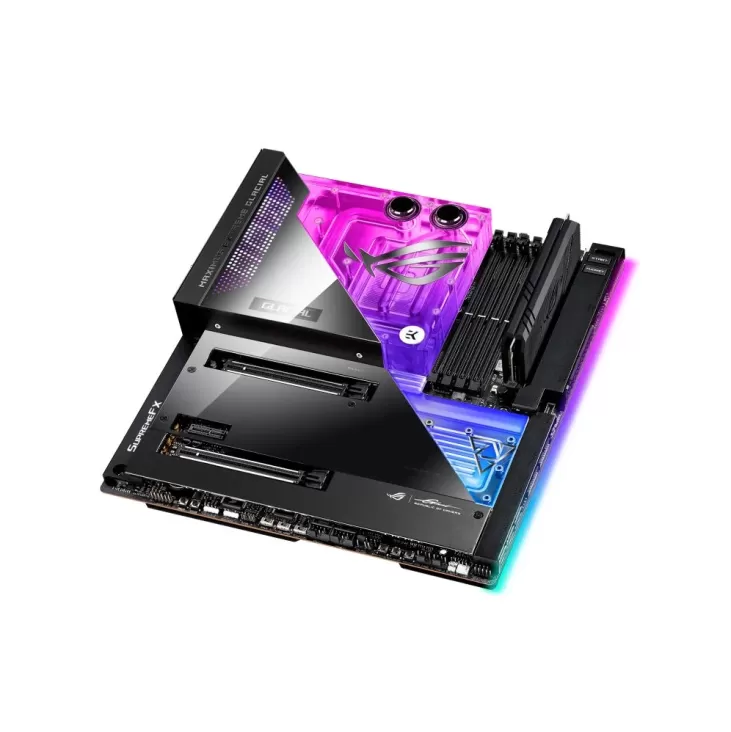

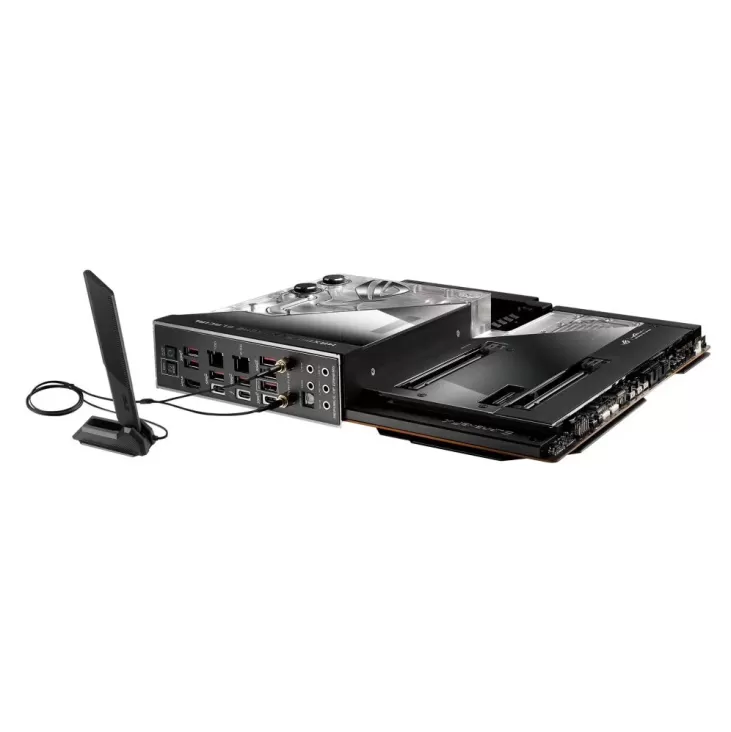

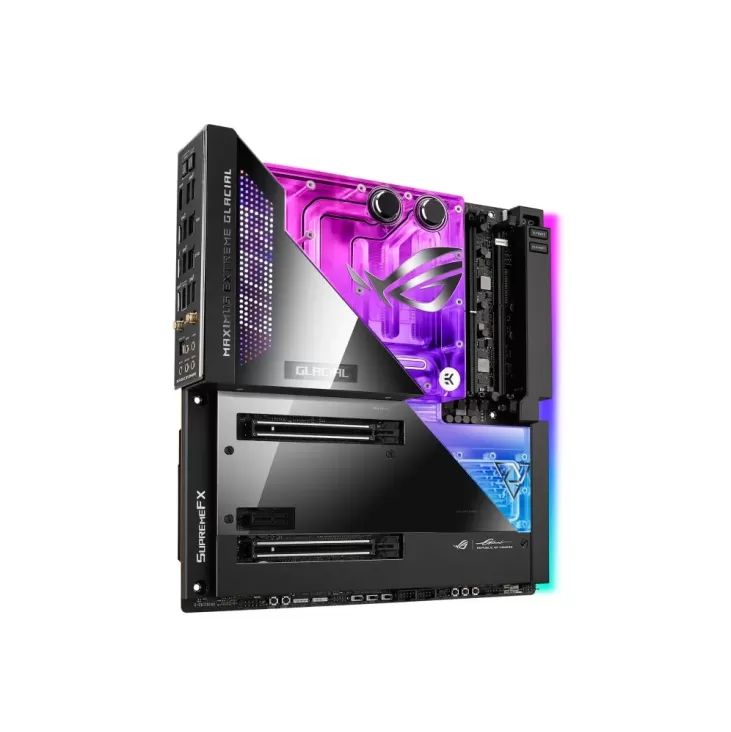

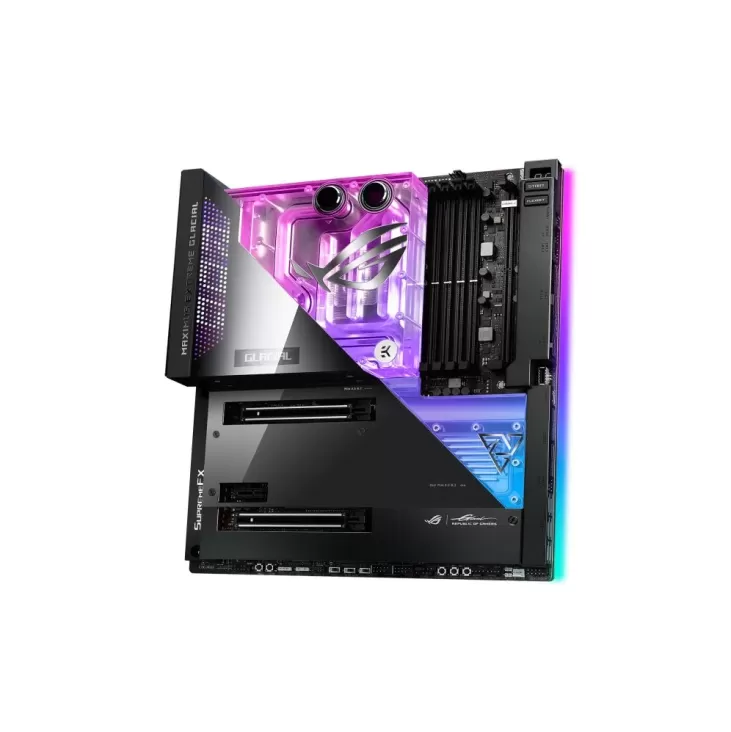

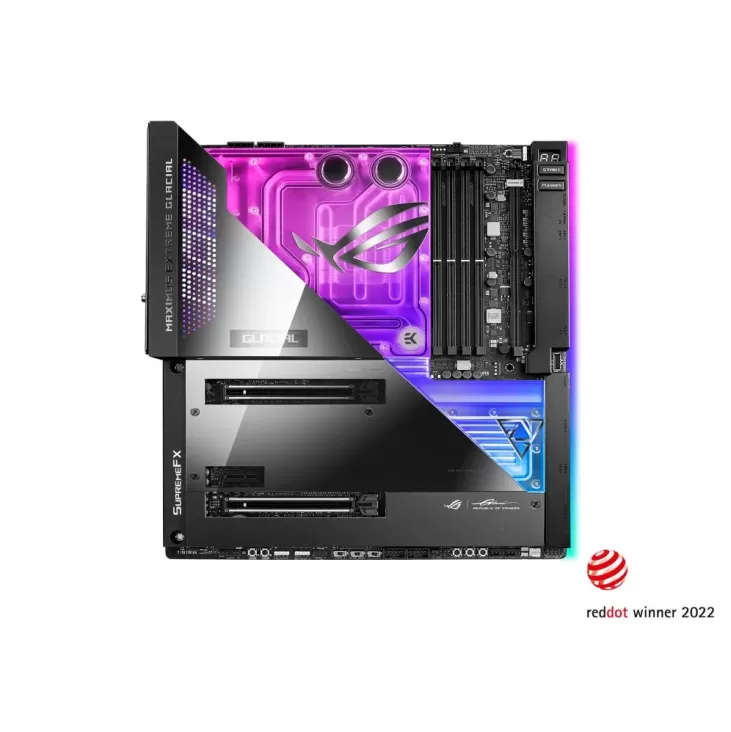

לוח אם Asus ROG MAXIMUS Z690 EXTREME GLACIAL DDR5 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

OptiMem III

1 x Thunderbolt™ 4 USB Type-C^® port

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C^®)

1 x HDMI^® port

1 x ASUS Wi-Fi Module

1 x Intel^® 2.5Gb Ethernet port

1 x Marvell^® AQtion 10Gb Ethernet port

5 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Fan and Cooling related

2 x 4-pin Chassis Fan headers

2 x 4-pin Radiator Fan headers

2 x W_PUMP+ headers

1 x WB_SENSOR header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x Intel^® Thunderbolt™ 4 port (USB Type-C^®)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers

1 x Addressable Gen 2 header

1 x AURA RGB header

1 x WB_ADD header

1 x BIOS Switch button

2 x BCLK button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

1 x Osc sence header

12 x ProbeIt Measurement Points

1 x ReTry button

1 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x V_Latch switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- ESS^® SABRE9018Q2C DAC/AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

Cables

1 x 1-to-3 ARGB splitter cable

1 x 1-to-2 ARGB splitter cable

2 x 1-to-4 fan splitter cables

1 x RGB extension cable

3 x ROG weave SATA 6G cables

1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller 3M Mounting tape

1 x Fan Controller manual

ROG DIMM.2 with Heatsink

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

Additional Cooling Kit

1 x Monoblock

3 x Screw package for monoblock

1 x Thermal pad for monoblock

1 x Fittings for monoblock

1 x M.2 heatsink

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 SSD screw package

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG graphics card holder

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG screwdriver

1 x ROG stickers

1 x ROG thank you card

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User guide

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
