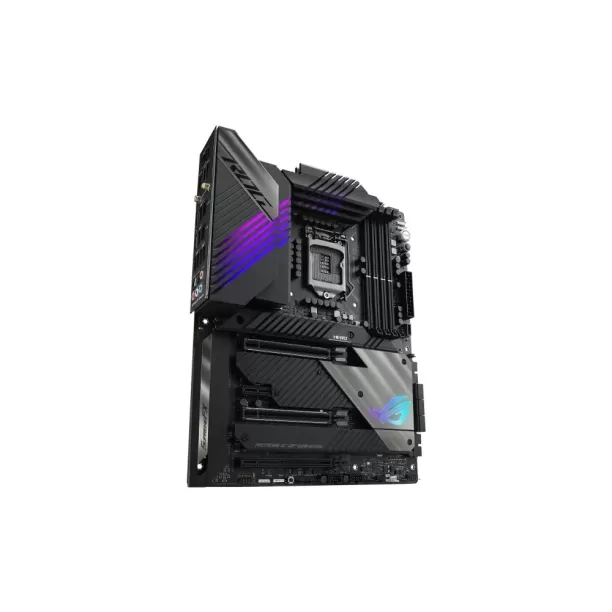

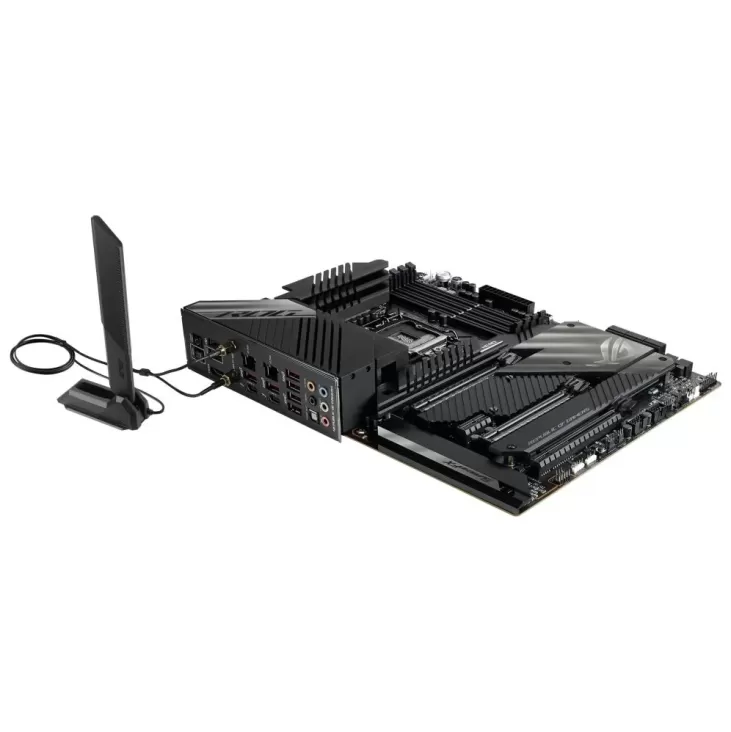

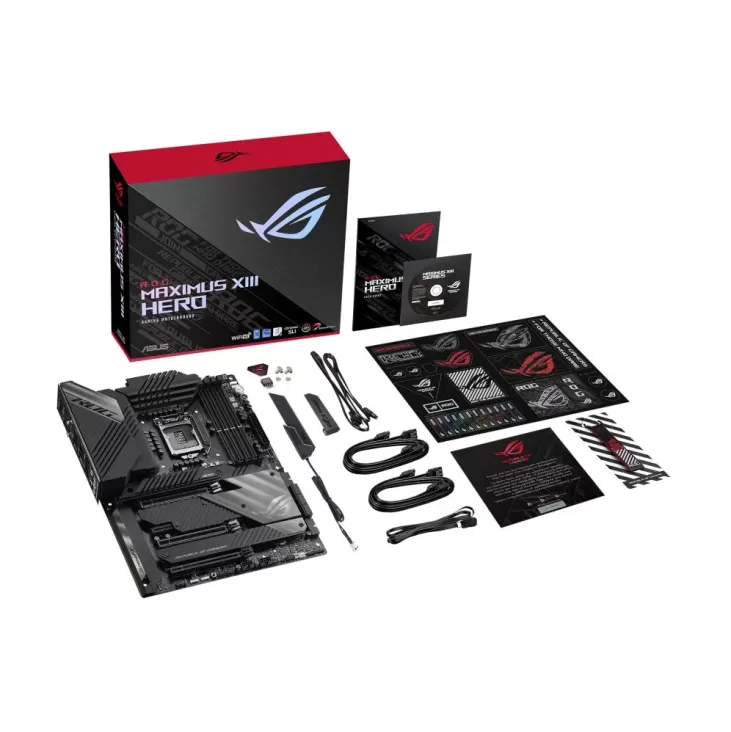

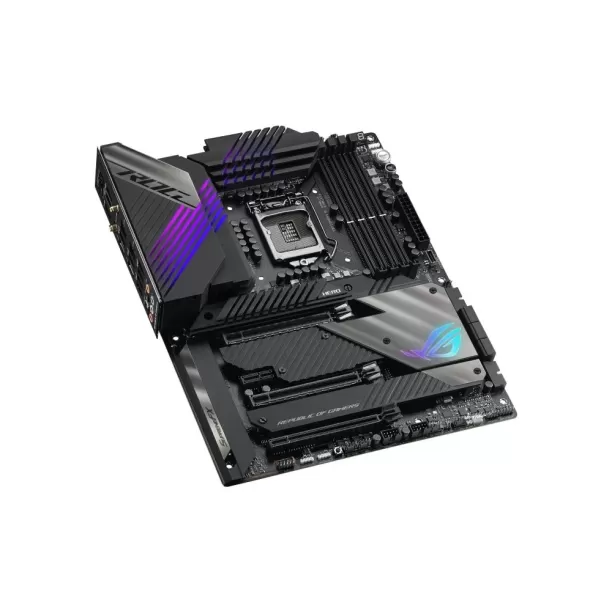

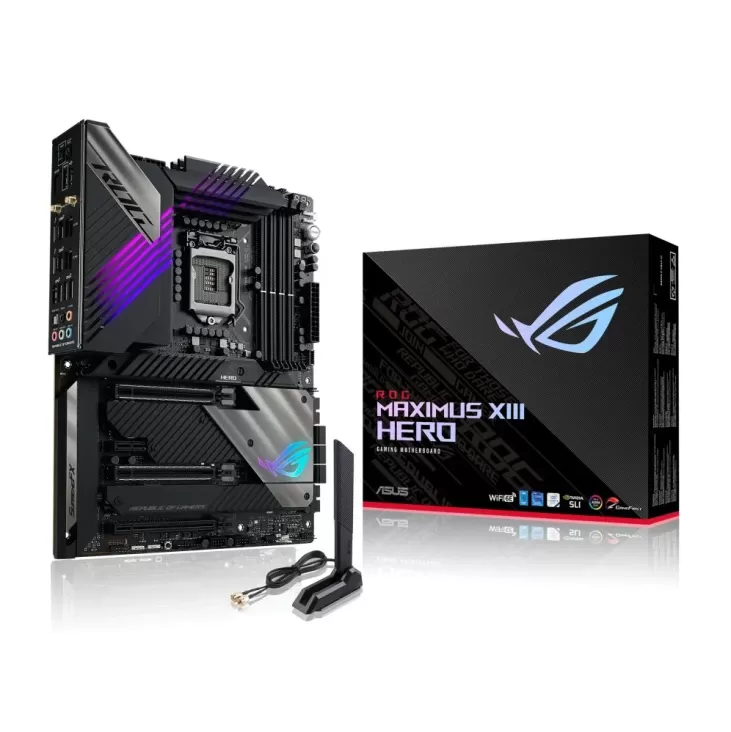

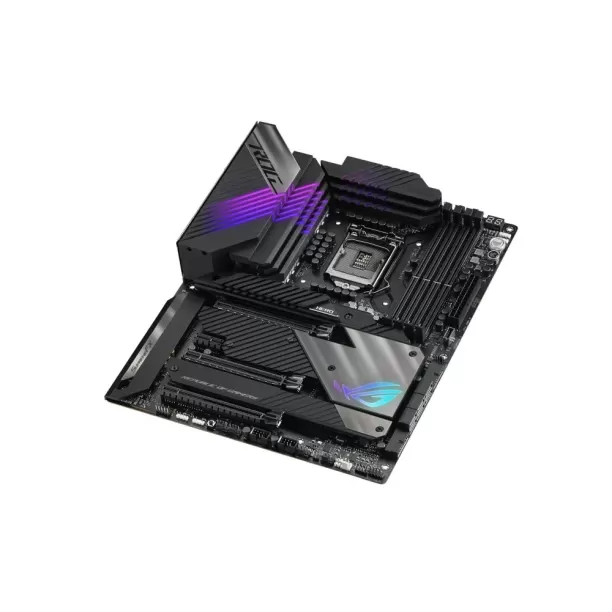

לוח אם Asus ROG MAXIMUS XIII HERO DDR4 LGA1200

073-2241747

גיא אוני 6, אשדוד

Intel11th &10th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M), type 2242/2260/2280**

- Intel 11th Core processors support PCIe 4.0 x4 mode

- Intel 10th Core processors support PCIe 3.0 x4 mode

Intel Z590 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

*When M.2_4 is pupulated, SATA6G_56 will be disabled.

**M.2_2 shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 is enabled, PCIEX16_1 will run at x8 mode and PCIEX16_2 will run at x4 mode.

DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

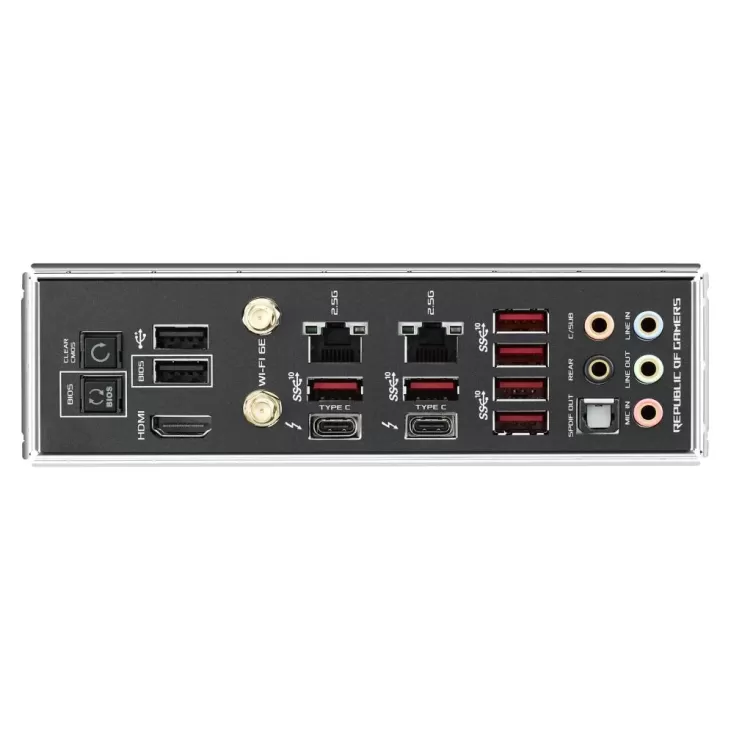

2 x Thunderbolt 4 USB Type-C port(s)

6 x USB 3.2 Gen 2 port(s) (6 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI port

1 x ASUS Wi-Fi Module

2 x Intel I225-V 2.5Gb Ethernet

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

1 x 4-pin H_AMP Fan header(s)

1 x W_PUMP+ header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x ReTry button

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Audio Features

- SupremeFX Shielding Technology

- ESS SABRE9018Q2C DAC/AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Audio cover
