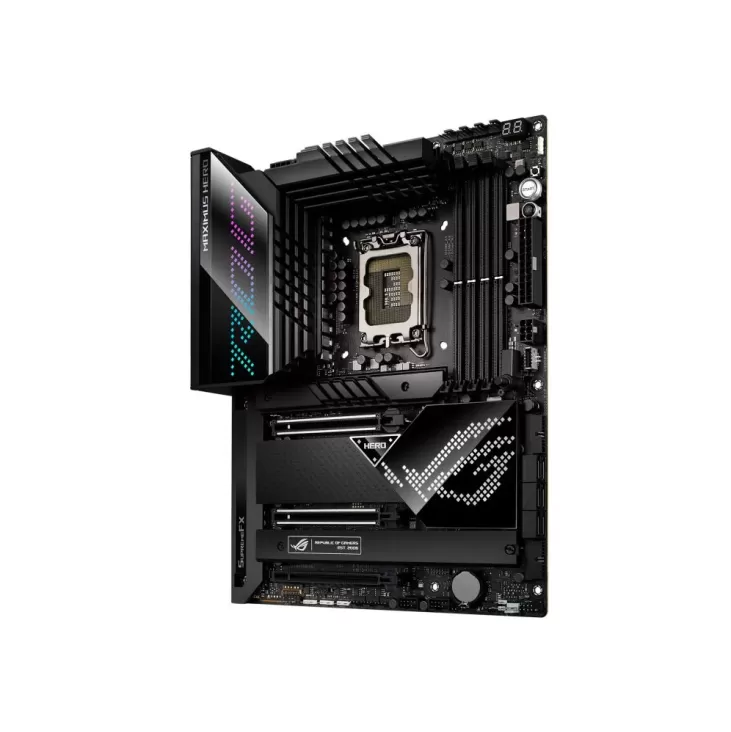

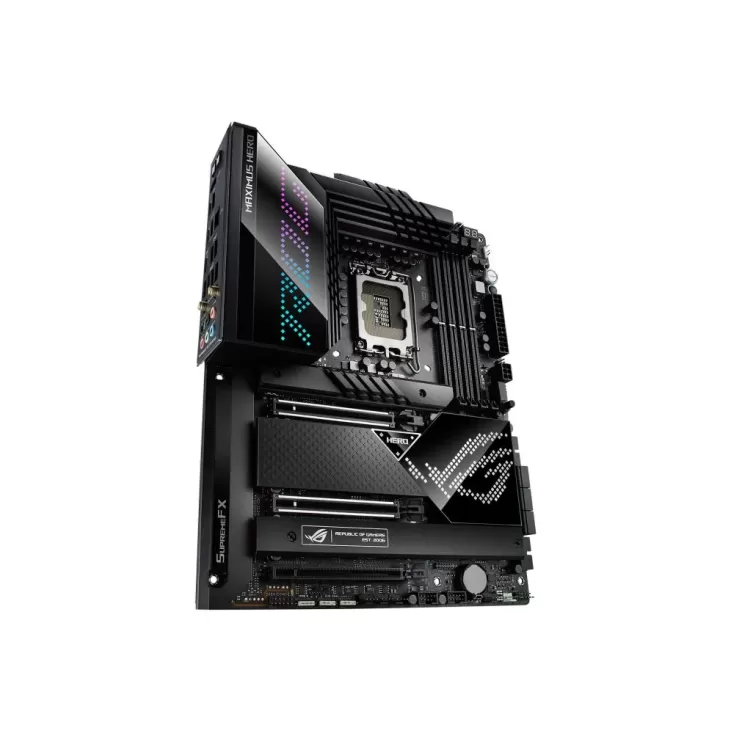

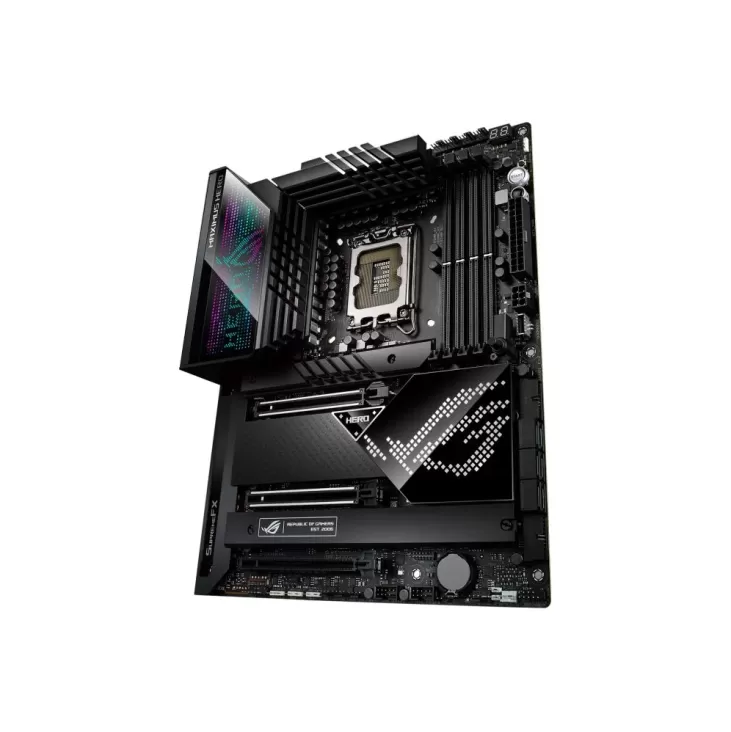

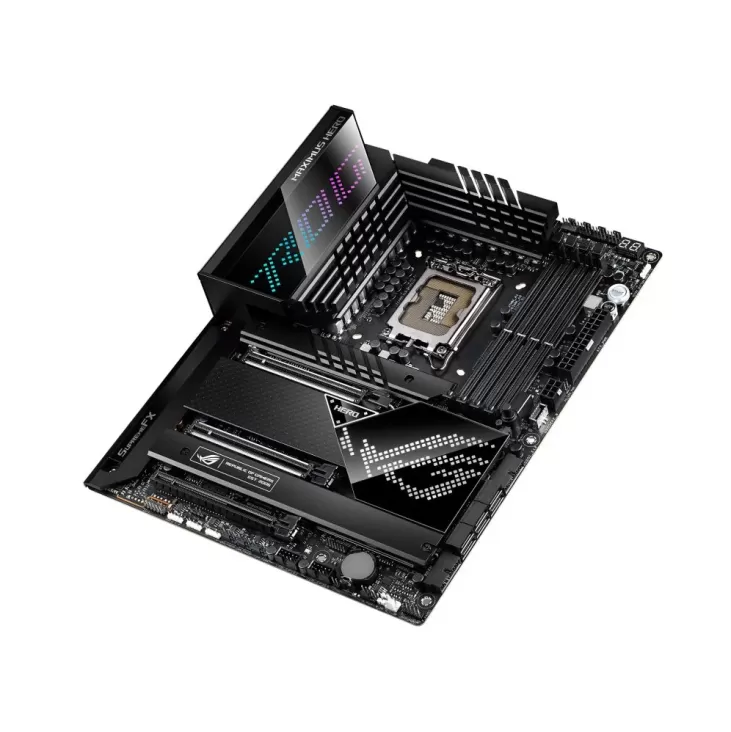

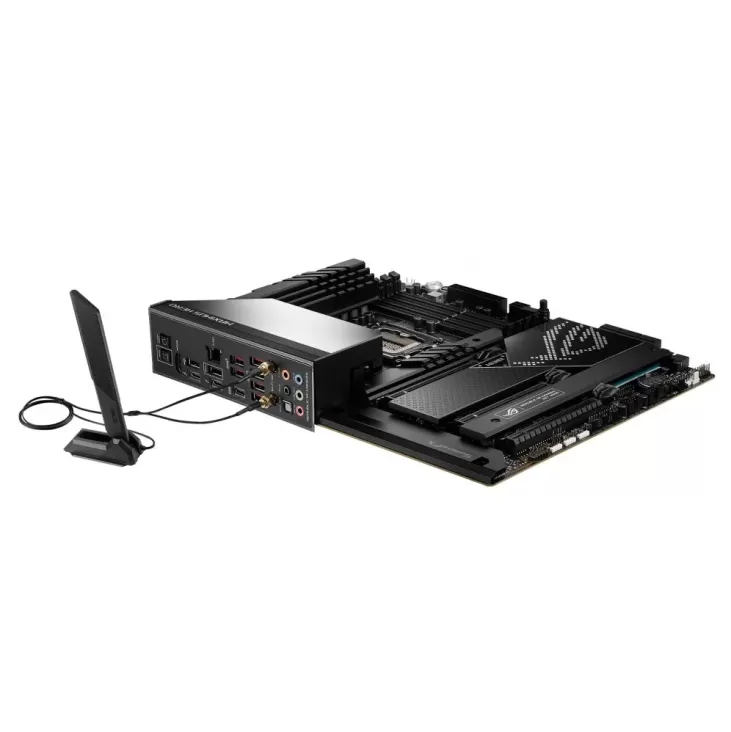

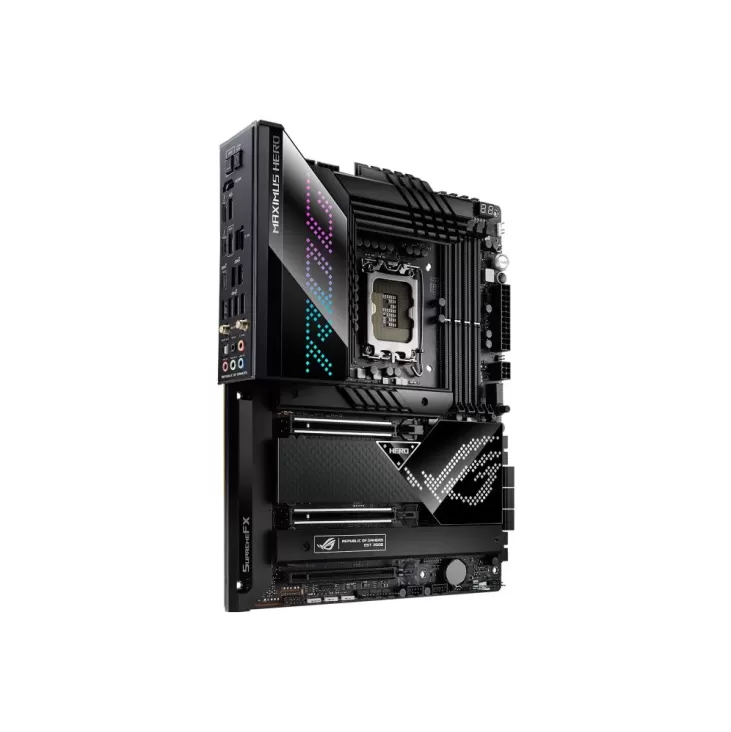

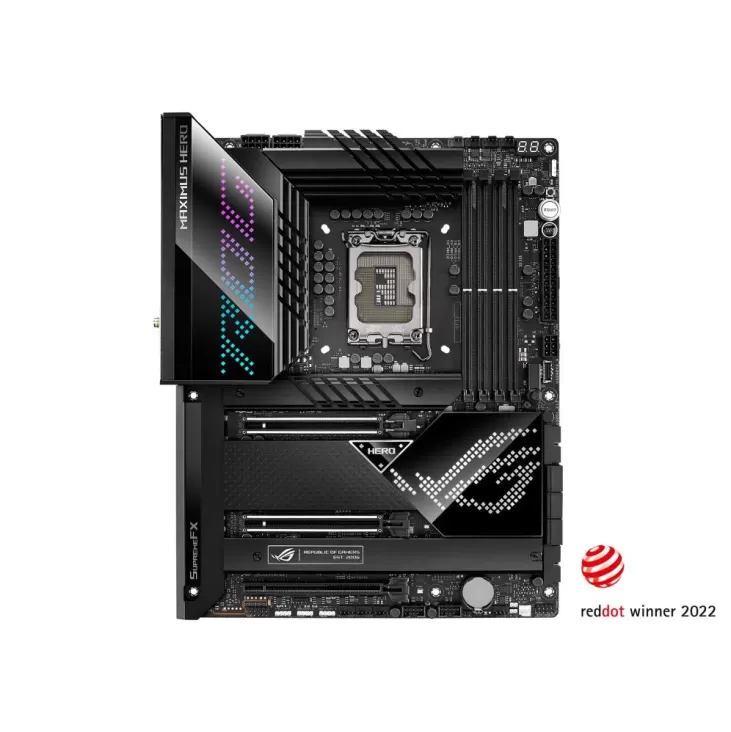

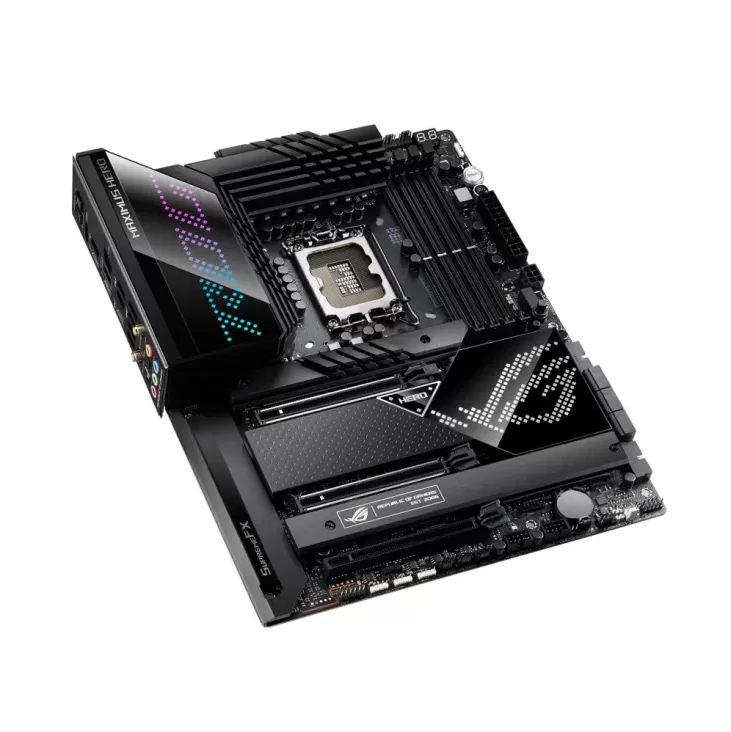

לוח אם Asus ROG MAXIMUS Z690 HERO DDR5 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
Supports Intel^® Extreme Memory Profile (XMP)

2 x Thunderbolt™ 4 USB Type-C^®&ports

7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C^®)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI^® port

1 x Wi-Fi Module

1 x Intel^® 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x ReTry button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

- ESS^® SABRE9018Q2C DAC/AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2 hardware ready**

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

Cables

1 x ARGB RGB extension cable

1 x RGB extension cable

4 x SATA 6Gb/s cables

ROG Hyper M.2 Card

1 x ROG Hyper M.2 Card with heatsink

2 x M.2 screw packages for ROG Hyper M.2 Card

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 Q-Latch package

2 x M.2 Q-Latch packages for M.2 backplate

1 x M.2 Rubber Package

1 x Q-connector

1 x ROG Graphics card holder

1 x ROG stickers

1 x ROG key chain

1 x ROG thank you card

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User Guide

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
