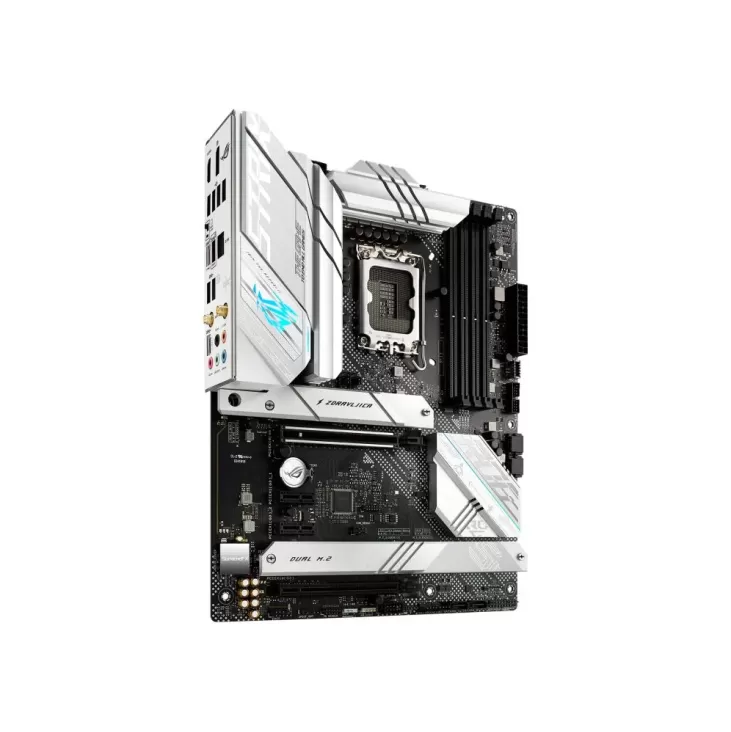

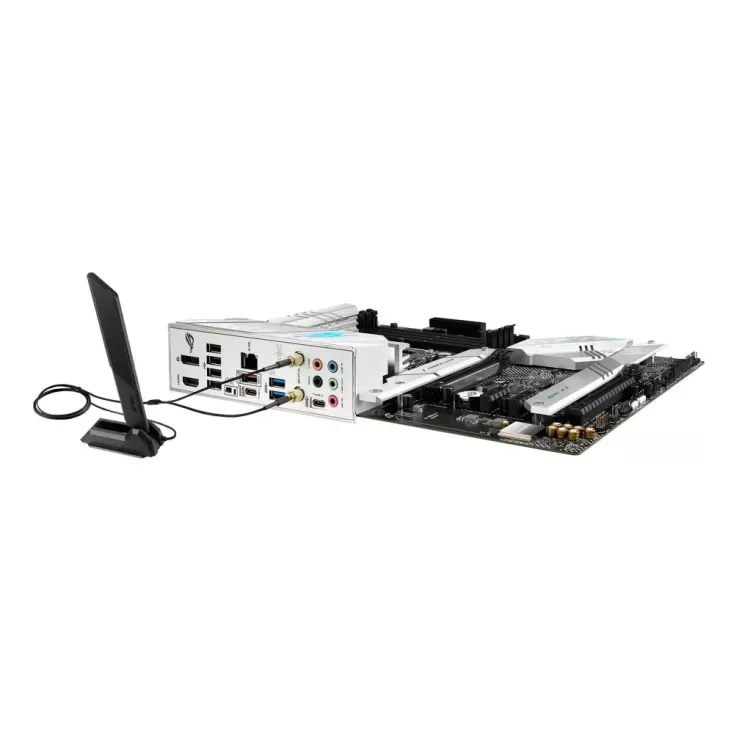

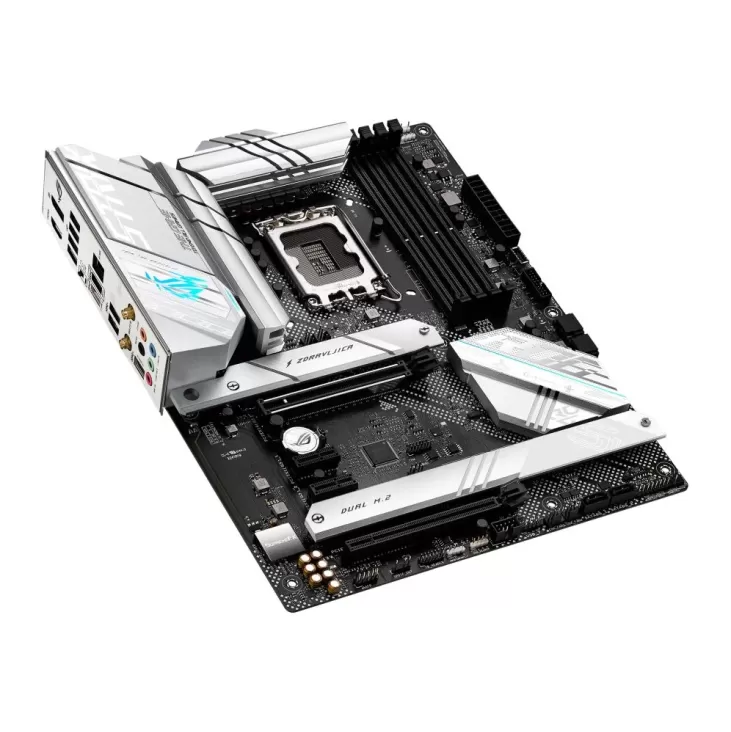

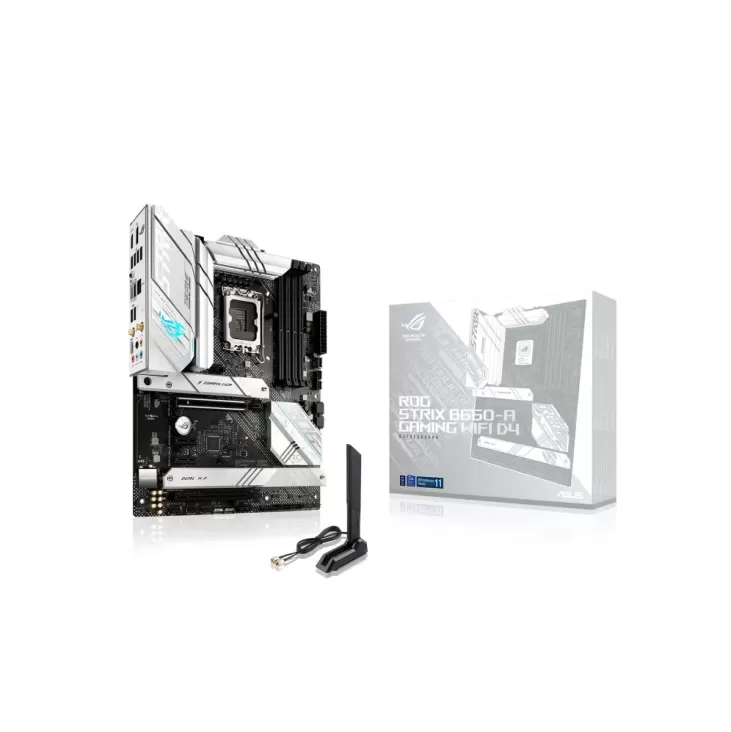

לוח אם Asus ROG STRIX B660-A GAMING WIFI D4 DDR4 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel^® 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel^® 12^th Gen processors support PCIe 4.0 x4 mode.

Intel^® B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports***

* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C^®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI^® port

1 x Wi-Fi Module

1 x Intel^® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack^™ button

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support USB Type-C^®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

- Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

1 x Intel^® 2.5Gb Ethernet

ASUS LANGuard

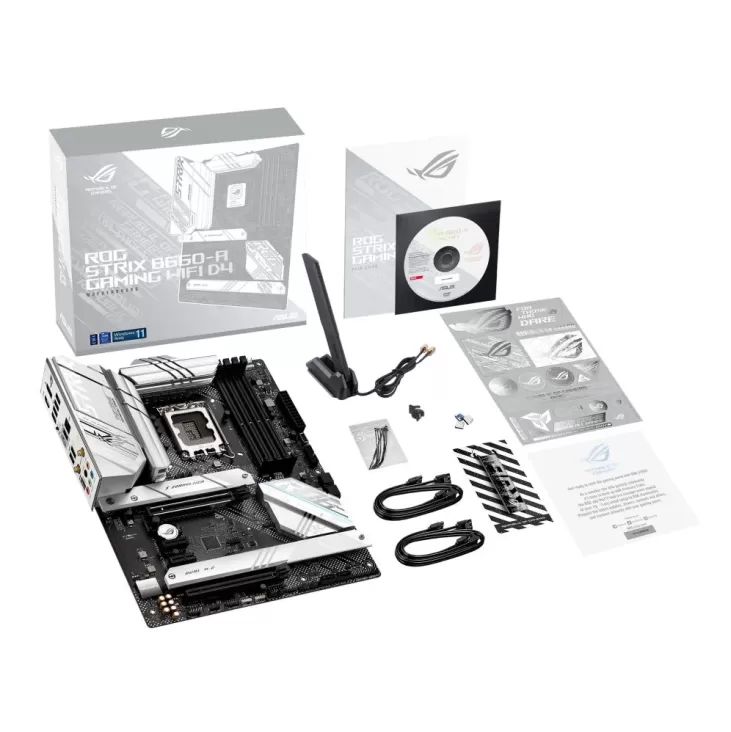

Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package(s)

1 x M.2 Q-Latch package(s)

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User guide
